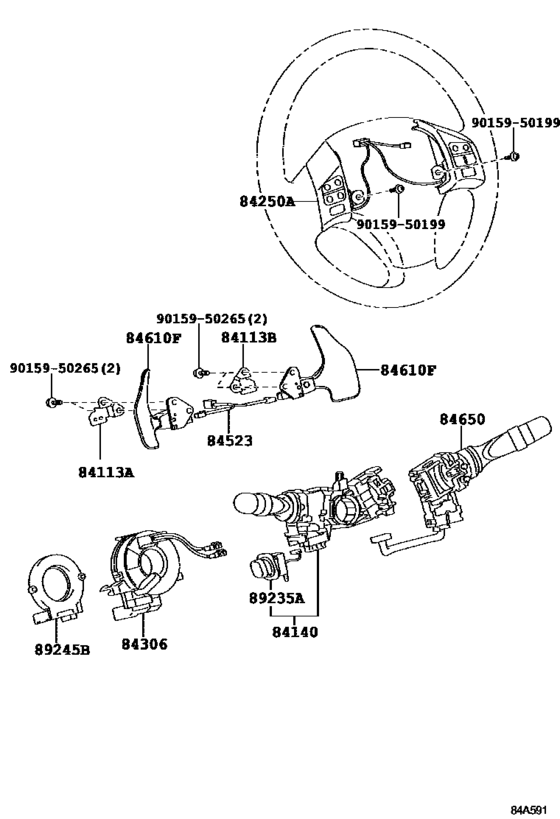

Switch & Relay & Computer ([04.2009 - ] STEERING (0904- )) Diagram Toyota LEXUS IS
- Year
- 2009 - 2012
- Sales region
- U.S.A.
- Frame
- GSE20
- grade
- 250C
- ENGINE
- 4GRFSE
- TRANSMISSION
- MTM
- Model
- IS250
- From
- 04.2009
- To
- 08.2012
- Gear Shift Type
- 6F
- Vehicle Model
- IS250C
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84140
|
84140
84140-48210 Switch Assy, Headlamp DimmerHEADLAMP DIMMER [04.2009 - 08.2011] GSE2# |
84140-48210 |
from US $113.51 |
||
|
84140
|
84140
84140-53110
Switch Assy, Headlamp Dimmer
[08.2011 -] GSE2# |
84140-53110 |
— | ||
|
84250A
|
84250A
84250-53010-C0
Switch Assy, Steering Pad
[04.2009 - 08.2010] GSE20..6F USA POSSESIONS SPEC,BLACK,TRIM0#,2# |
84250-53010-C0 |
— | ||
| replacement | |||||
|
84250A
|
84250A
84250-53020-C0 Switch Assy, Steering Pad[04.2009 - 08.2010] GSE20..6F USA POSSESIONS SPEC,BLACK,TRIM0#,2# |
84250-53020-C0 |
US $135.41 |
||
|
84250A
|
84250A
84250-53070-C0 Switch Assy, Steering Pad[04.2009 - 08.2010] GSE20..6F BLACK,TRIM0#,2#; GSE20..6F USA POSSESIONS SPEC&EMV & NAVIGATION SYSTEM-HDD NAVIGATION,BLACK,TRIM0#,2# |
84250-53070-C0 |
US $147.06 |
||
|
84250A
|
84250A
84250-53120
Switch Assy, Steering Pad
[08.2010 - 12.2010] GSE2# USA POSSESIONS SPEC; GSE20..6FC KOREA SPEC |
84250-53120 |
— | ||
|
84250A
|
84250A
84250-53121
Switch Assy, Steering Pad
[12.2010 - 08.2011] GSE2# USA POSSESIONS SPEC; GSE20..6FC KOREA SPEC |
84250-53121 |
— | ||
|
84250A
|
84250A
84250-53130 Switch Assy, Steering Pad[08.2010 - 12.2010] GSE20..6F; GSE20..6F USA POSSESIONS SPEC&EMV & NAVIGATION SYSTEM-HDD NAVIGATION |
84250-53130 |
US $173.26 |
||
|
84250A
|
84250A
84250-53131 Switch Assy, Steering Pad[12.2010 - 08.2011] GSE20..6F USA POSSESIONS SPEC&EMV & NAVIGATION SYSTEM-HDD NAVIGATION |
84250-53131 |
US $173.26 |
||
|
84306
|
84306
84306-48030 Cable Sub-Assy, Spiral[04.2009 -] GSE2# |
84306-48030 |
US $147.04 |
||
| replacement | |||||
|
84306
|
84306
84306-48031 CABLE SUBASSY[04.2009 -] GSE2# |
84306-48031 |
from US $141.19 |
||
|
84650
|
84650
84652-30542 Switch Assy, Windshield WiperWINDSHIELD WIPER [04.2009 - 08.2011] GSE2# |
84652-30542 |
US $90.27 |
||
|
84650
|
84650
84652-30552
Switch Assy, Windshield Wiper
[04.2009 - 08.2011] GSE2# LUXURY PACKAGE |
84652-30552 |
— | ||
|
84650
|
84650
84652-53160
Switch Assy, Windshield Wiper
[08.2011 -] GSE2# |
84652-53160 |
— | ||
|
84650
|
84650
84652-53170
Switch Assy, Windshield Wiper
[08.2011 -] GSE2# LUXURY PACKAGE |
84652-53170 |
— | ||
|
89235A
|
89235A
89235-48010 Switch, Tilt & Telescopic[04.2009 -] GSE2# |
89235-48010 |
US $40.19 |
||
|
89245B
|
89245B
89245-52030 Sensor, Steering[04.2009 - 07.2015] GSE2# |
89245-52030 |
from US $211.41 |
||
|
9015950199
|
9015950199
90159-50199 SCREW |
90159-50199 |
from US $0.67 |
||
|
9015950265
|
9015950265
90159-50265 New Genuine Part |
90159-50265 |
US $1.25 |
||
