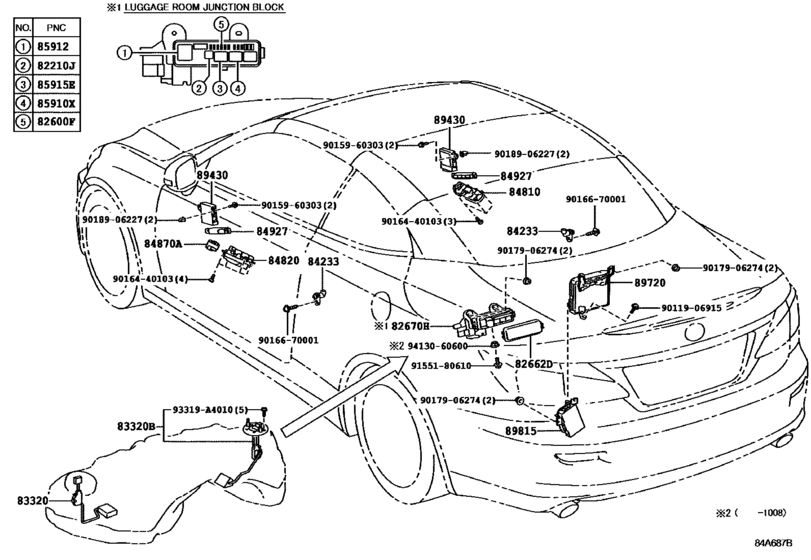

Switch & Relay & Computer ([04.2009 - ] DOOR,ROOF,FLOOR & LUGGAGE (0904- )) Diagram Toyota LEXUS IS
- Year
- 2009 - 2012
- Sales region
- U.S.A.
- Frame
- GSE20
- grade
- 250C
- ENGINE
- 4GRFSE
- TRANSMISSION
- MTM
- Model
- IS250
- From
- 04.2009
- To
- 08.2012
- Gear Shift Type
- 6F
- Vehicle Model
- IS250C
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82210J
|
82210J
90982-08283 Fusible Link[04.2009 - 07.2015] GSE2# 30A,TERMINAL:FEMALE,ENGINE ROOM J/B |
90982-08283 |
from US $1.35 |
||
|
82210J
|
82210J
90982-08298 Fusible Link[04.2009 - 07.2015] GSE2# 30A,TERMINAL:FEMALE,LUGGAGE ROOM J/B |
90982-08298 |
from US $6.99 |
||
|
82600F
|
82600F
90982-09020 Fusible Link[04.2009 - 07.2015] GSE2# 7.5A,MINI FUSE |
90982-09020 |
from US $0.84 |
||
|
82600F
|
82600F
90982-09021 Fusible Link[04.2009 - 07.2015] GSE2# 10A,MINI FUSE |
90982-09021 |
from US $0.78 |
||
|
82600F
|
82600F
90982-09022 Instrument Panel Fuse[04.2009 - 07.2015] GSE2# 15A,MINI FUSE |
90982-09022 |
from US $0.80 |
||
|
82600F
|
82600F
90982-09023 Instrument Panel Fuse[04.2009 - 07.2015] GSE2# 20A,MINI FUSE |
90982-09023 |
from US $0.84 |
||
|
82600F
|
82600F
90982-09024 Instrument Panel Fuse[04.2009 - 07.2015] GSE2# 25A,MINI FUSE |
90982-09024 |
from US $0.82 |
||
|
82600F
|
82600F
90982-09025 Instrument Panel Fuse[04.2009 - 07.2015] GSE2# 30A,MINI FUSE |
90982-09025 |
from US $0.76 |
||
|
82662D
|
82662D
82662-53190 Cover, Relay Block, Upper, No.4RELAY BLOCK, UPPER, NO.4 [04.2009 - 06.2012] GSE2# |
82662-53190 |
US $17.04 |
||
|
82662D
|
82662D
82662-53191 Cover, Relay Block, Upper, No.4[06.2012 -] GSE2# |
82662-53191 |
US $14.12 |
||
|
82670H
|
82670H
82670-53010 Block Assy, Luggage Room JunctionLUGGAGE ROOM JUNCTION [04.2009 - 07.2015] GSE2# |
82670-53010 |
US $170.35 |
||
|
83320
|
83320
83320-53010 Gage Assy, Fuel Sender[04.2009 - 07.2015] GSE2# |
83320-53010 |
from US $59.38 |
||
|
83320B
|
83320B
83320-59515 Gage Assy, Fuel Sender, No.2[04.2009 - 07.2015] GSE2# |
83320-59515 |
from US $40.48 |
||
|
84233
|
84233
84231-53010 Switch Assy, Courtesy Lamp (For Front Door)[04.2009 - 05.2013] GSE2# |
84231-53010 |
from US $11.83 |
||
|
84810
|
84810
84030-53060
Switch Assy, Power Window Regulator
[04.2009 - 08.2010] GSE2# |
84030-53060 |
— | ||
|
84810
|
84810
84030-53061
Switch Assy, Power Window Regulator
[08.2010 -] GSE2# |
84030-53061 |
— | ||
|
84820
|
84820
84040-53130
Master Switch Assy, Power Window Regulator
[04.2009 - 08.2010] GSE2# |
84040-53130 |
— | ||
|
84820
|
84820
84040-53131
Master Switch Assy, Power Window Regulator
[08.2010 -] GSE2# |
84040-53131 |
— | ||
|
84870A
|
84870A
84872-53010 Switch Assy, Outer MirrorOUTER MIRROR [04.2009 -] GSE2# |
84872-53010 |
from US $50.67 |
||
|
84870A
|
84870A
84872-53030
Switch Assy, Outer Mirror
[04.2009 - 08.2010] GSE2# LUXURY PACKAGE&FRONT SEAT-FULL LEATHER BLUE & WHITE TWO-TONE COLOR |
84872-53030 |
— | ||
|
84927
|
84927
84927-53030-A1 Switch, Seat MemorySEAT MEMORY [04.2009 - 08.2010] GSE2# LUXURY PACKAGE&FRONT SEAT-FULL LEATHER BLUE & WHITE TWO-TONE COLOR,MELLOW WHITE,TR IM0#,RH |
84927-53030-A1 |
US $60.72 |
||
|
84927
|
84927
84927-53030-C0 Switch, Seat Memory[04.2009 - 08.2010] GSE2# LUXURY PACKAGE&FRONT SEAT-FULL LEATHER BLUE & WHITE TWO-TONE COLOR,BLACK,TRIM1#,2# ,3#,4#,RH |
84927-53030-C0 |
US $60.72 |
||
|
84927
|
84927
84927-53040-A1 Switch, Seat MemorySEAT MEMORY [04.2009 - 08.2010] GSE2# LUXURY PACKAGE&FRONT SEAT-FULL LEATHER BLUE & WHITE TWO-TONE COLOR,MELLOW WHITE,TR IM0#,LH |
84927-53040-A1 |
US $60.72 |
||
|
84927
|
84927
84927-53040-C0 Switch, Seat Memory[04.2009 - 08.2010] GSE2# LUXURY PACKAGE&FRONT SEAT-FULL LEATHER BLUE & WHITE TWO-TONE COLOR,BLACK,TRIM1#,2# ,3#,4#,LH |
84927-53040-C0 |
US $60.72 |
||
|
85910X
|
85910X
90987-02027 Relay[04.2009 -] GSE2# |
90987-02027 |
from US $47.82 |
||
|
85912
|
85912
90987-04010 Relay Assy (For Heater Blower Motor)[04.2009 -] GSE2# |
90987-04010 |
from US $46.95 |
||
|
85915E
|
85915E
90987-02027 Relay[04.2009 -] GSE2# |
90987-02027 |
from US $47.82 |
||
|
89430
|
89430
89430-53080 Computer Assy, Outer Mirror ControlOUTER MIRROR CONTROL [04.2009 - 08.2010] GSE2# LUXURY PACKAGE&FRONT SEAT-FULL LEATHER BLUE & WHITE TWO-TONE COLOR |
89430-53080 |
US $171.81 |
||
|
89720
|
89720
89720-53010 Computer Assy, Sliding Roof ControlSLIDING ROOF CONTROL [04.2009 - 07.2010] GSE2# |
89720-53010 |
US $1,485.12 |
||
| replacement | |||||
|
89720
|
89720
89720-53011 Computer Assy, Sliding Roof Control[04.2009 - 07.2010] GSE2# |
89720-53011 |
US $1,237.60 |
||
|
89720
|
89720
89720-53011 Computer Assy, Sliding Roof Control[08.2010 -] GSE2# |
89720-53011 |
US $1,237.60 |
||
|
93319A4010
|
93319A4010
93319-A4010 SCREW WWASHER |
93319-A4010 |
from US $0.67 |
||
|
9011906915
|
9011906915
90119-06915 BOLT WWASHER |
90119-06915 |
from US $0.53 |
||
|
9015960303
|
9015960303
90159-60303 SCREW |
90159-60303 |
US $1.25 |
||
|
9016440103
|
9016440103
90164-40103 SCREW BINDING |
90164-40103 |
from US $0.72 |
||
|
9016670001
|
9016670001
90166-70001 Screw Hex Lobular |
90166-70001 |
US $1.08 |
||
|
9017906274
|
9017906274
90179-06274 Nut |
90179-06274 |
from US $0.68 |
||
|
9018906227
|
9018906227
90189-06227 GROMMET SCREW |
90189-06227 |
from US $0.65 |
||
|
9155180610
|
9155180610
91551-80610 BOLT FLANGE |
91551-80610 |
US $1.08 |
||
|
9413060600
|
9413060600
94130-60600 Nut, Wire Adjusting, No.1 |
94130-60600 |
from US $0.76 |
||
