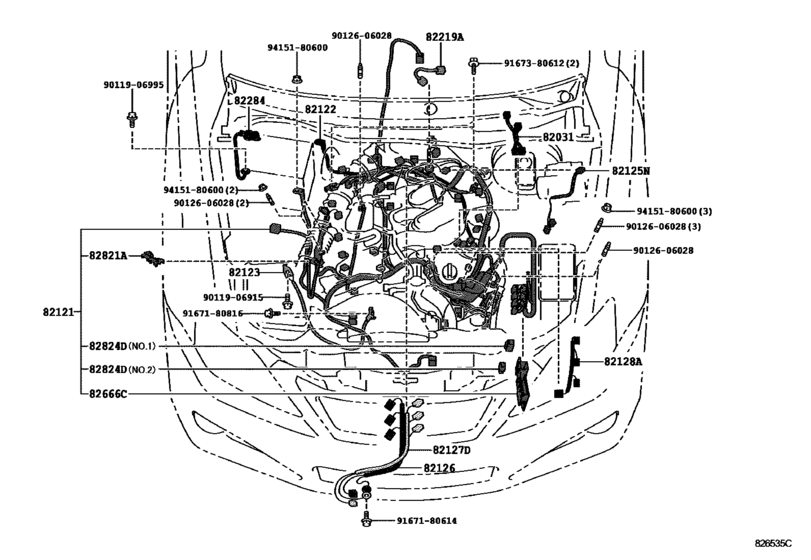

Wiring & Clamp ([04.2009 - 08.2012] ENGINE (0904-1208)) Diagram Toyota LEXUS IS
- Year
- 2009 - 2012
- Sales region
- U.S.A.
- Frame
- GSE20
- grade
- 250C
- ENGINE
- 4GRFSE
- TRANSMISSION
- MTM
- Model
- IS250
- From
- 04.2009
- To
- 08.2012
- Gear Shift Type
- 6F
- Vehicle Model
- IS250C
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82031
|
82031
82031-22150 Wire Sub-Assy, Ignition Coil[04.2009 -] GSE20 |
82031-22150 |
US $31.92 |
||
|
82121
|
82121
82121-53172
Wire, Engine
[04.2009 - 08.2010] GSE20..6F |
82121-53172 |
— | ||
|
82121
|
82121
82121-53173
Wire, Engine
[08.2010 - 08.2012] GSE20..6F |
82121-53173 |
— | ||
|
82122
|
82122
82122-30820
Wire, Engine, No.2
[04.2009 -] GSE2# |
82122-30820 |
— | ||
|
82123
|
82123
82123-30490 Wire, Engine, No.3[04.2009 -] GSE2# |
82123-30490 |
US $32.47 |
||
|
82125N
|
82125N
82125-30500 Wire, Transmission[04.2009 -] GSE20 |
82125-30500 |
US $33.55 |
||
|
82126
|
82126
82126-30010 Wire, Engine[04.2009 -] GSE20 |
82126-30010 |
US $47.61 |
||
|
82127D
|
82127D
82127-30010 Wire, Differential[04.2009 -] GSE20 |
82127-30010 |
US $77.93 |
||
|
82219A
|
82219A
82219-30021
Wire, Sensor
[04.2009 -] GSE20 |
82219-30021 |
— | ||
|
82284
|
82284
82284-30030
Wire, Earth
[04.2009 - 08.2012] GSE2# |
82284-30030 |
— | ||
|
82666C
|
82666C
82666-30740 Holder, Connector No.4[04.2009 -] GSE2# |
82666-30740 |
US $17.47 |
||
|
82821A
|
82821A
82821-50500 Cover, Connector[04.2009 -] GSE2# |
82821-50500 |
US $2.51 |
||
|
82824D
|
82824D
82824-30180 Connector, Wiring Harness[04.2009 -] GSE2# NO.1 |
82824-30180 |
US $5.53 |
||
|
82824D
|
82824D
82824-52080 Connector, Wiring Harness[04.2009 -] GSE20 NO.2 |
82824-52080 |
US $18.20 |
||
|
9011906915
|
9011906915
90119-06915 BOLT WWASHER |
90119-06915 |
from US $0.53 |
||
|
9011906995
|
9011906995
90119-06995 BOLT WWASHER |
90119-06995 |
US $1.08 |
||
|
9012606028
|
9012606028
90126-06028 Bolt, Stud(For Oil Pan) |
90126-06028 |
from US $0.63 |
||
|
9167180614
|
9167180614
91671-80614 Bolt (For Transmission Control Cable Bracket) |
91671-80614 |
from US $0.63 |
||
|
9167180816
|
9167180816
91671-80816 Bolt (For Transmission Control Cable Bracket) |
91671-80816 |
from US $0.76 |
||
|
9167380612
|
9167380612
91673-80612 BOLT FLANGE |
91673-80612 |
US $1.08 |
||
|
9415180600
|
9415180600
94151-80600 Nut, Cap(For Cylinder Head Cover) |
94151-80600 |
from US $0.65 |
