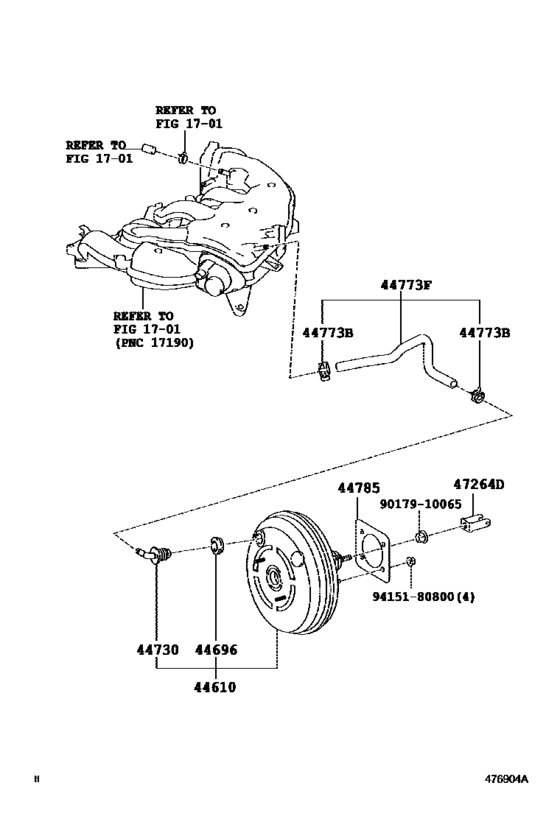

Brake Booster & Vacuum Tube ([04.2009 - ] (0904- )LHD) Diagram Toyota LEXUS IS
- Year
- 2009 - 2010
- Sales region
- Europe
- Frame
- GSE20
- grade
- 250C
- ENGINE
- 4GRFSE
- TRANSMISSION
- MTM
- Model
- IS250
- From
- 04.2009
- To
- 08.2010
- Gear Shift Type
- 6F
- Vehicle Model
- IS250C
- Driver's Position
- LHD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
44610
|
44610
44610-53281
Booster Assy, Brake
[04.2009 - 07.2015] GSE20..LHD |
44610-53281 |
— | ||
|
44696
|
44696
90480-24439 Grommet, Check Valve[04.2009 -] GSE20 |
90480-24439 |
from US $2.51 |
||
|
44730
|
44730
44730-12070 Valve Assy, Vacuum Check(For Brake)[04.2009 - 07.2015] GSE20..LHD |
44730-12070 |
from US $25.75 |
||
|
44773B
|
44773B
90467-16014 Clip(For Vacuum Hose)[04.2009 -] GSE20..LHD |
90467-16014 |
US $4.12 |
||
|
44773F
|
44773F
44750-53120
Hose Assy, Vacuum
[04.2009 -] GSE20..LHD |
44750-53120 |
— | ||
|
44785
|
44785
44785-47010 Gasket, Brake Booster[04.2009 -] GSE20 |
44785-47010 |
from US $3.78 |
||
|
47264D
|
47264D
47264-30060 Clevis, Master Cylinder Push Rod[04.2009 -] GSE20 |
47264-30060 |
US $4.22 |
||
|
9017910065
|
9017910065
90179-10065 Nut, Master Cylinder Push Rod Clevis Lock |
90179-10065 |
from US $1.61 |
||
|
9415180800
|
9415180800
94151-80800 Nut (For Transmission Control Cable) |
94151-80800 |
from US $0.78 |
