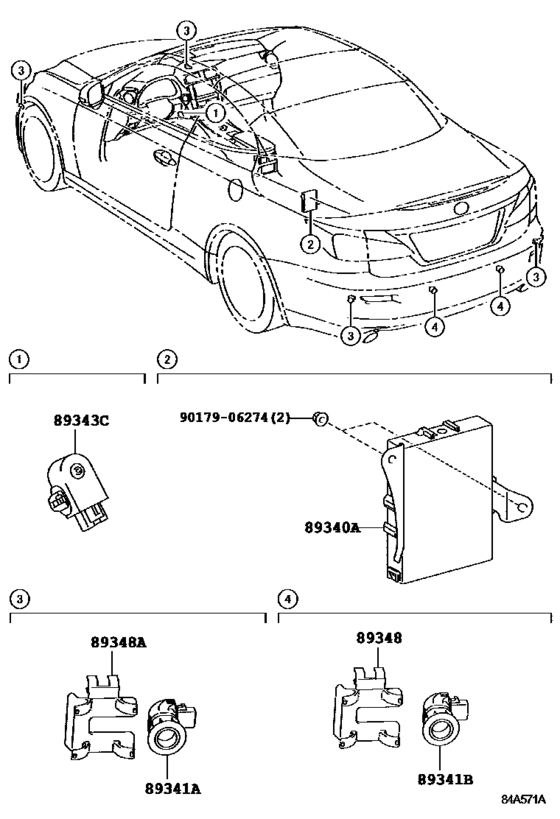

Clearance & Back Sonar ([04.2009 - 08.2010] (0904-1008)LHD) Diagram Toyota LEXUS IS
- Year
- 2009 - 2010
- Sales region
- Europe
- Frame
- GSE20
- grade
- 250C
- ENGINE
- 4GRFSE
- TRANSMISSION
- MTM
- Model
- IS250
- From
- 04.2009
- To
- 08.2010
- Gear Shift Type
- 6F
- Vehicle Model
- IS250C
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
89340A
|
89340A
89340-53010 Computer Assy, Clearance WarningCLEARANCE WARNING [04.2009 - 08.2010] GSE20 |
89340-53010 |
US $497.95 |
||
|
89341A
|
89341A
89341-30010-A5 Sensor, Ultrasonic, No.1[04.2009 - 08.2010] GSE20 WHITE PEARL CS.,077 |
89341-30010-A5 |
from US $147.54 |
||
|
89341A
|
89341A
89341-30010-B5 Sensor, Ultrasonic, No.1[04.2009 - 08.2010] GSE20 DK.GRAY MC.,1G0 |
89341-30010-B5 |
US $166.40 |
||
|
89341A
|
89341A
89341-30010-B6 Sensor, Ultrasonic, No.1[04.2009 - 08.2010] GSE20 SILVER M.M.,1G1 |
89341-30010-B6 |
from US $166.40 |
||
|
89341A
|
89341A
89341-30010-C3 Sensor, Ultrasonic, No.1[04.2009 - 08.2010] GSE20 BLACK,212 |
89341-30010-C3 |
from US $166.40 |
||
|
89341A
|
89341A
89341-30010-D2 Sensor, Ultrasonic, No.1[04.2009 - 08.2010] GSE20 RED MC.CS.,3R1 |
89341-30010-D2 |
US $166.40 |
||
|
89341A
|
89341A
89341-30010-J7 Sensor, Ultrasonic, No.1[04.2009 - 08.2010] GSE20 DK.BLUE MC. CC.,8U0 |
89341-30010-J7 |
US $166.40 |
||
|
89341A
|
89341A
89341-30010-J8 Sensor, Ultrasonic, No.1[04.2009 - 08.2010] GSE20 BLUE ME. CC.,8U1 |
89341-30010-J8 |
US $166.40 |
||
|
89341A
|
89341A
89341-30010-K1 Sensor, Ultrasonic, No.1ULTRASONIC, NO.1 [04.2009 - 08.2010] GSE20 CATTLEYA M.M.,9AL |
89341-30010-K1 |
US $166.40 |
||
|
89341A
|
89341A
89341-30010-R0 Sensor, Ultrasonic, No.1ULTRASONIC, NO.1 [04.2009 - 08.2010] GSE20 SILVERY BLUE ME.,8U9 |
89341-30010-R0 |
US $166.40 |
||
|
89341B
|
89341B
89341-30021-A4 Sensor, Ultrasonic, No.2[04.2009 - 08.2010] GSE20 WHITE PEARL CS.,077 |
89341-30021-A4 |
from US $166.40 |
||
|
89341B
|
89341B
89341-30021-B4 Sensor, Ultrasonic, No.2[04.2009 - 08.2010] GSE20 DK.GRAY MC.,1G0 |
89341-30021-B4 |
US $166.40 |
||
|
89341B
|
89341B
89341-30021-B5 Sensor, Ultrasonic, No.2[04.2009 - 08.2010] GSE20 SILVER M.M.,1G1 |
89341-30021-B5 |
from US $166.40 |
||
|
89341B
|
89341B
89341-30021-C1 Sensor, Ultrasonic, No.2[04.2009 - 08.2010] GSE20 BLACK,212 |
89341-30021-C1 |
US $166.40 |
||
|
89341B
|
89341B
89341-30021-D1 Sensor, Ultrasonic, No.2[04.2009 - 08.2010] GSE20 RED MC.CS.,3R1 |
89341-30021-D1 |
US $166.40 |
||
|
89341B
|
89341B
89341-30021-J6 Sensor, Ultrasonic, No.2[04.2009 - 08.2010] GSE20 DK.BLUE MC. CC.,8U0 |
89341-30021-J6 |
US $166.40 |
||
|
89341B
|
89341B
89341-30021-J7 Sensor, Ultrasonic, No.2[04.2009 - 08.2010] GSE20 BLUE ME.,8U1 |
89341-30021-J7 |
US $166.40 |
||
|
89341B
|
89341B
89341-30021-J8 Sensor, Ultrasonic, No.2ULTRASONIC, NO.2 [04.2009 - 08.2010] GSE20 SILVERY BLUE ME.,8U9 |
89341-30021-J8 |
US $166.40 |
||
|
89341B
|
89341B
89341-30021-K1 Sensor, Ultrasonic, No.2ULTRASONIC, NO.2 [04.2009 - 08.2010] GSE20 CATTLEYA M.M.,9AL |
89341-30021-K1 |
US $166.40 |
||
|
89343C
|
89343C
89343-30010 Buzzer, Clearance Warning[04.2009 -] GSE20 |
89343-30010 |
from US $24.29 |
||
|
89348
|
89348
89348-44010 Retainer, Ultrasonic Sensor, No.1[04.2009 - 06.2009] GSE20 |
89348-44010 |
from US $2.24 |
||
|
89348
|
89348
89348-53010 Retainer, Ultrasonic Sensor, No.1ULTRASONIC SENSOR, NO.1 [06.2009 - 08.2010] GSE20 |
89348-53010 |
US $6.70 |
||
|
89348A
|
89348A
89348-44010 Retainer, Ultrasonic Sensor, No.1[04.2009 - 08.2010] GSE20 |
89348-44010 |
from US $2.24 |
||
|
9017906274
|
9017906274
90179-06274 Nut |
90179-06274 |
from US $0.68 |
