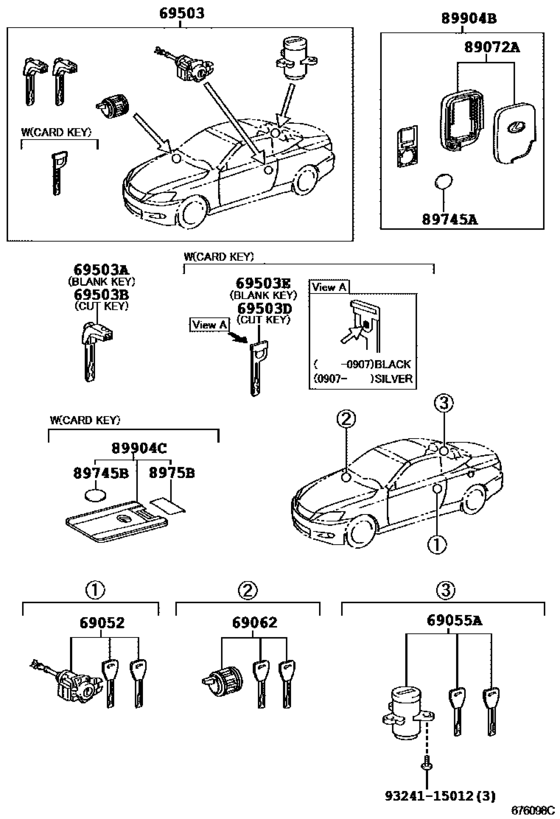

Lock Cylinder Set ([04.2009 - ] (0904- )LHD) Diagram Toyota LEXUS IS
- Year
- 2009 - 2010
- Sales region
- Europe
- Frame
- GSE20
- grade
- 250C
- ENGINE
- 4GRFSE
- TRANSMISSION
- MTM
- Model
- IS250
- From
- 04.2009
- To
- 08.2010
- Gear Shift Type
- 6F
- Vehicle Model
- IS250C
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
8975B
|
8975B
8975B-50020 Cover, Transmitter Housing[04.2009 -] GSE20..LHD..6FC TAIWAN SPEC&ELECTRICAL KEY(2)&CARD TYPE(1); GSE20..LHD..6FC CHILE SPEC&ELECTRICAL KEY(2)&CARD TYPE(1); GSE20 ELECTRICAL KEY(2)&CARD TYPE(1) |
8975B-50020 |
US $1.93 |
||
|
69052
|
69052
69052-53070
Cylinder & Key Set, Door Lock, Lh
[04.2009 -] GSE20..LHD |
69052-53070 |
— | ||
|
69055A
|
69055A
69055-53060
Cylinder & Key Set, Luggage Compartment Lock
[04.2009 -] GSE20 |
69055-53060 |
— | ||
|
69062
|
69062
69056-50160 Cylinder & Key Set, Glove Compartment LockGLOVE COMPARTMENT LOCK [04.2009 -] GSE20 |
69056-50160 |
US $94.64 |
||
|
69503
|
69503
69005-53400
Cylinder Set, Lock
[04.2009 -] GSE20..LHD |
69005-53400 |
— | ||
| replacement | |||||
|
69503
|
69503
69005-53440
Cylinder Set, Lock
[04.2009 -] GSE20..LHD |
69005-53440 |
— | ||
|
69503
|
69503
69005-53440
Cylinder Set, Lock
[04.2009 -] GSE20..LHD ELECTRICAL KEY(2)&CARD TYPE(1) |
69005-53440 |
— | ||
|
69503A
|
69503A
69515-50260 Key, BlankBLANK [04.2009 -] GSE20 BLANK KEY |
69515-50260 |
from US $54.09 |
||
|
69503B
|
69503B
69515-50240 Key, Cut[04.2009 -] GSE20 MASTER KEY |
69515-50240 |
US $127.92 |
||
|
69503D
|
69503D
69515-30330 Key, Cut(Card Key)[07.2009 -] GSE20 MASTER KEY,ELECTRICAL KEY(2)&CARD TYPE(1) |
69515-30330 |
US $116.44 |
||
|
69503D
|
69503D
69515-50220 Key, Cut(Card Key)[04.2009 - 07.2009] GSE20 MASTER KEY,ELECTRICAL KEY(2)&CARD TYPE(1) |
69515-50220 |
US $127.92 |
||
|
69503E
|
69503E
69515-30350 Key, Blank(Card Key)BLANK(CARD KEY) [07.2009 -] GSE20 MASTER KEY,ELECTRICAL KEY(2)&CARD TYPE(1) |
69515-30350 |
US $87.36 |
||
|
69503E
|
69503E
69515-50270 Key, Blank(Card Key)BLANK(CARD KEY) [04.2009 - 06.2009] GSE20..LHD BLANK KEY,ELECTRICAL KEY(2)&CARD TYPE(1) |
69515-50270 |
from US $49.22 |
||
|
89072A
|
89072A
89072-53262
Housing Set, Door Control Transmitter
[04.2009 -] GSE20 |
89072-53262 |
— | ||
|
89745A
|
89745A
89745-52020 Battery, Transmitter[04.2009 -] GSE20 |
89745-52020 |
from US $7.88 |
||
|
89745B
|
89745B
89745-50030 Battery, Transmitter(Card Key)[04.2009 -] GSE20..LHD..6FC TAIWAN SPEC&ELECTRICAL KEY(2)&CARD TYPE(1); GSE20..LHD..6FC CHILE SPEC&ELECTRICAL KEY(2)&CARD TYPE(1); GSE20 ELECTRICAL KEY(2)&CARD TYPE(1) |
89745-50030 |
from US $8.36 |
||
|
89904B
|
89904B
89904-53300
Transmitter Sub-Assy, Electrical Key
[04.2009 -] GSE20 |
89904-53300 |
— | ||
|
89904C
|
89904C
89904-53310
Transmitter Sub-Assy, Electrical Key(Card Key)
[04.2009 - 01.2010] GSE20..RHD..6FC SINGAPORE SPEC&ELECTRICAL KEY(2)&CARD TYPE(1); GSE20..RHD..6FC THAILAND SPEC&ELECTRICAL KEY(2)&CARD TYPE(1); GSE20..RHD..6FC MALAYSIA SPEC&ELECTRICAL KEY(2)&CARD TYPE(1); GSE20 ELECTRICAL KEY(2)&CARD TYPE(1) |
89904-53310 |
— | ||
| replacement | |||||
|
89904C
|
89904C
89904-53312
Transmitter Sub-Assy, Electrical Key(Card Key)
[04.2009 - 01.2010] GSE20..RHD..6FC SINGAPORE SPEC&ELECTRICAL KEY(2)&CARD TYPE(1); GSE20..RHD..6FC THAILAND SPEC&ELECTRICAL KEY(2)&CARD TYPE(1); GSE20..RHD..6FC MALAYSIA SPEC&ELECTRICAL KEY(2)&CARD TYPE(1); GSE20 ELECTRICAL KEY(2)&CARD TYPE(1) |
89904-53312 |
— | ||
|
89904C
|
89904C
89904-53311
Transmitter Sub-Assy, Electrical Key(Card Key)
[02.2010 -] GSE20 ELECTRICAL KEY(2)&CARD TYPE(1) |
89904-53311 |
— | ||
| replacement | |||||
|
89904C
|
89904C
89904-53312
Transmitter Sub-Assy, Electrical Key(Card Key)
[02.2010 -] GSE20 ELECTRICAL KEY(2)&CARD TYPE(1) |
89904-53312 |
— | ||
|
9324115012
|
9324115012
93241-15012 New Genuine Part |
93241-15012 |
US $0.90 |
||
