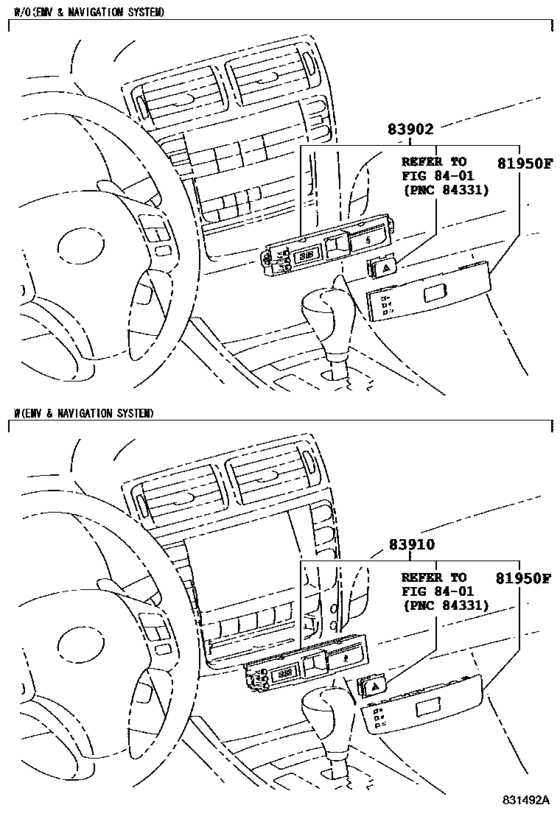

Meter ([04.2009 - ] CLOCK (0904- )LHD) Diagram Toyota LEXUS IS
- Year
- 2009 - 2010
- Sales region
- Europe
- Frame
- GSE20
- grade
- 250C
- ENGINE
- 4GRFSE
- TRANSMISSION
- MTM
- Model
- IS250
- From
- 04.2009
- To
- 08.2010
- Gear Shift Type
- 6F
- Vehicle Model
- IS250C
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81950F
|
81950F
81950-53140
Lens Assy, Clock & Indicator
[04.2009 - 08.2011] GSE20..LHD; GSE20..LHD..6FC TAIWAN SPEC&AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI&EMV & NAVIGATION SYSTEM-DVD NAV IGATION; GSE20..LHD..6FC TAIWAN SPEC&AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI&EMV & NAVIGATION SYSTEM-HDD NAV IGATION; GSE20.. |
81950-53140 |
— | ||
| replacement | |||||
|
81950F
|
81950F
81950-53300
Lens Assy, Clock & Indicator
[04.2009 - 08.2011] GSE20..LHD; GSE20..LHD..6FC TAIWAN SPEC&AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI&EMV & NAVIGATION SYSTEM-DVD NAV IGATION; GSE20..LHD..6FC TAIWAN SPEC&AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI&EMV & NAVIGATION SYSTEM-HDD NAV IGATION; GSE20.. |
81950-53300 |
— | ||
|
81950F
|
81950F
81950-53200
Lens Assy, Clock & Indicator
[04.2009 - 08.2011] GSE20..LHD AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI&EMV & NAVIGATION SYSTEM-HDD NAVIGATION; GSE20..LHD AUDIO-AM/FM CD-CHANGER 8SUPERKAER NAVI&EMV & NAVIGATION SYSTEM-HDD NAVIGATION |
81950-53200 |
— | ||
| replacement | |||||
|
81950F
|
81950F
81950-53350
Lens Assy, Clock & Indicator
[04.2009 - 08.2011] GSE20..LHD AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI&EMV & NAVIGATION SYSTEM-HDD NAVIGATION; GSE20..LHD AUDIO-AM/FM CD-CHANGER 8SUPERKAER NAVI&EMV & NAVIGATION SYSTEM-HDD NAVIGATION |
81950-53350 |
— | ||
|
83902
|
83902
83902-53080
Clock Sub-Assy
[04.2009 - 08.2011] GSE20..LHD; GSE20..LHD..6FC TAIWAN SPEC&AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI&EMV & NAVIGATION SYSTEM-DVD NAV IGATION; GSE20..LHD..6FC TAIWAN SPEC&AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI&EMV & NAVIGATION SYSTEM-HDD NAV IGATION; GSE20.. |
83902-53080 |
— | ||
| replacement | |||||
|
83902
|
83902
83902-53082
Clock Sub-Assy
[04.2009 - 08.2011] GSE20..LHD; GSE20..LHD..6FC TAIWAN SPEC&AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI&EMV & NAVIGATION SYSTEM-DVD NAV IGATION; GSE20..LHD..6FC TAIWAN SPEC&AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI&EMV & NAVIGATION SYSTEM-HDD NAV IGATION; GSE20.. |
83902-53082 |
— | ||
|
83910
|
83910
83910-53090
Clock Assy
[04.2009 - 07.2011] GSE20..LHD AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI&EMV & NAVIGATION SYSTEM-HDD NAVIGATION; GSE20..LHD AUDIO-AM/FM CD-CHANGER 8SUPERKAER NAVI&EMV & NAVIGATION SYSTEM-HDD NAVIGATION |
83910-53090 |
— | ||
| replacement | |||||
|
83910
|
83910
83910-53092
Clock Assy
[04.2009 - 07.2011] GSE20..LHD AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI&EMV & NAVIGATION SYSTEM-HDD NAVIGATION; GSE20..LHD AUDIO-AM/FM CD-CHANGER 8SUPERKAER NAVI&EMV & NAVIGATION SYSTEM-HDD NAVIGATION |
83910-53092 |
— | ||
