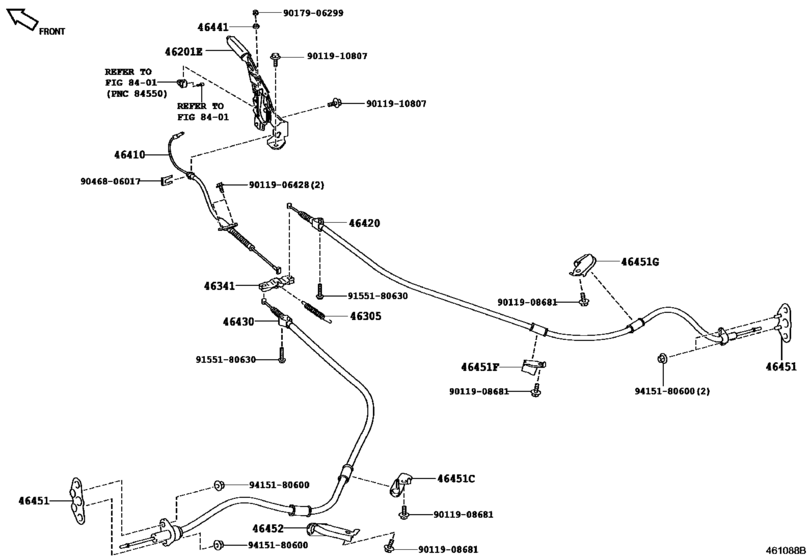

Parking Brake & Cable ([04.2009 - ] (0904- )LHD..6F) Diagram Toyota LEXUS IS
- Year
- 2009 - 2010
- Sales region
- Europe
- Frame
- GSE20
- grade
- 250C
- ENGINE
- 4GRFSE
- TRANSMISSION
- MTM
- Model
- IS250
- From
- 04.2009
- To
- 08.2010
- Gear Shift Type
- 6F
- Vehicle Model
- IS250C
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
46201E
|
46201E
46201-53080-C0
Lever Sub-Assy, Parking Brake
[04.2009 - 08.2010] GSE20..LHD..6F BLACK,TRIM0#,2# |
46201-53080-C0 |
— | ||
|
46305
|
46305
46305-53010 Spring, Parking Brake Return W/damper[04.2009 -] GSE20 |
46305-53010 |
US $3.41 |
||
|
46341
|
46341
46341-22060 Equalizer, Parking Brake[04.2009 -] GSE20 |
46341-22060 |
US $6.46 |
||
|
46410
|
46410
46410-53060
Cable Assy, Parking Brake, No.1
[04.2009 - 08.2010] GSE20..6F |
46410-53060 |
— | ||
|
46420
|
46420
46420-53020 Cable Assy, Parking Brake, No.2[04.2009 - 07.2010] GSE20 |
46420-53020 |
US $49.80 |
||
| replacements | |||||
|
46420
|
46420
46601-50050 Lever Sub-Assy, Parking Brake Shoe, Rh[04.2009 - 07.2010] GSE20 |
46601-50050 |
US $16.31 |
||
|
46420
|
46420
46420-53021 Cable Assy, Parking Brake, No.2[04.2009 - 07.2010] GSE20 |
46420-53021 |
US $41.50 |
||
|
46420
|
46420
46602-50050 Lever Sub-Assy, Parking Brake Shoe, Lh[04.2009 - 07.2010] GSE20 |
46602-50050 |
US $16.31 |
||
|
46420
|
46420
46420-53021 Cable Assy, Parking Brake, No.2[07.2010 -] GSE20 |
46420-53021 |
US $41.50 |
||
|
46430
|
46430
46420-53020 Cable Assy, Parking Brake, No.2[04.2009 - 07.2010] GSE20 |
46420-53020 |
US $49.80 |
||
| replacements | |||||
|
46430
|
46430
46601-50050 Lever Sub-Assy, Parking Brake Shoe, Rh[04.2009 - 07.2010] GSE20 |
46601-50050 |
US $16.31 |
||
|
46430
|
46430
46420-53021 Cable Assy, Parking Brake, No.2[04.2009 - 07.2010] GSE20 |
46420-53021 |
US $41.50 |
||
|
46430
|
46430
46602-50050 Lever Sub-Assy, Parking Brake Shoe, Lh[04.2009 - 07.2010] GSE20 |
46602-50050 |
US $16.31 |
||
|
46430
|
46430
46420-53021 Cable Assy, Parking Brake, No.2[07.2010 -] GSE20 |
46420-53021 |
US $41.50 |
||
|
46441
|
46441
46441-12010 Nut, Wire Adjusting, No.1[04.2009 -] GSE20 |
46441-12010 |
US $2.87 |
||
|
46451
|
46451
46451-50050 Clamp, No.5(For Parking Brake Cable)[04.2009 - 07.2015] GSE20 |
46451-50050 |
US $8.42 |
||
|
46451C
|
46451C
46451-30180 Bracket, Parking Brake Cable Support, No.1[04.2009 -] GSE20 |
46451-30180 |
US $4.02 |
||
|
46451F
|
46451F
46451-22100 Bracket, Cable Support[04.2009 -] GSE20 |
46451-22100 |
US $3.64 |
||
|
46451G
|
46451G
46451-30190 Bracket, Cable Support[04.2009 -] GSE20 |
46451-30190 |
US $5.07 |
||
|
46452
|
46452
46451-30200 Bracket, Parking Brake Cable Support, No.2[04.2009 -] GSE20 |
46451-30200 |
US $5.07 |
||
|
9011906428
|
9011906428
90119-06428 New Genuine Part |
90119-06428 |
US $1.43 |
||
|
9011908681
|
9011908681
90119-08681 BOLTWWASHER |
90119-08681 |
US $2.87 |
||
|
9011910807
|
9011910807
90119-10807 New Genuine Part |
90119-10807 |
US $12.01 |
||
| replacement | |||||
|
9011910807
|
9011910807
91642-K1020 BOLT WWASHER |
91642-K1020 |
US $3.05 |
||
|
9017906299
|
9017906299
90179-06299 Nut, Wire Adjusting, No.1 |
90179-06299 |
from US $0.65 |
||
|
9046806017
|
9046806017
90468-06017 New Genuine Part |
90468-06017 |
US $0.83 |
||
|
9155180630
|
9155180630
91551-80630 Bolt(For Cylinder Head Cover) |
91551-80630 |
from US $0.63 |
||
|
9415180600
|
9415180600
94151-80600 Nut, Cap(For Cylinder Head Cover) |
94151-80600 |
from US $0.65 |
||
