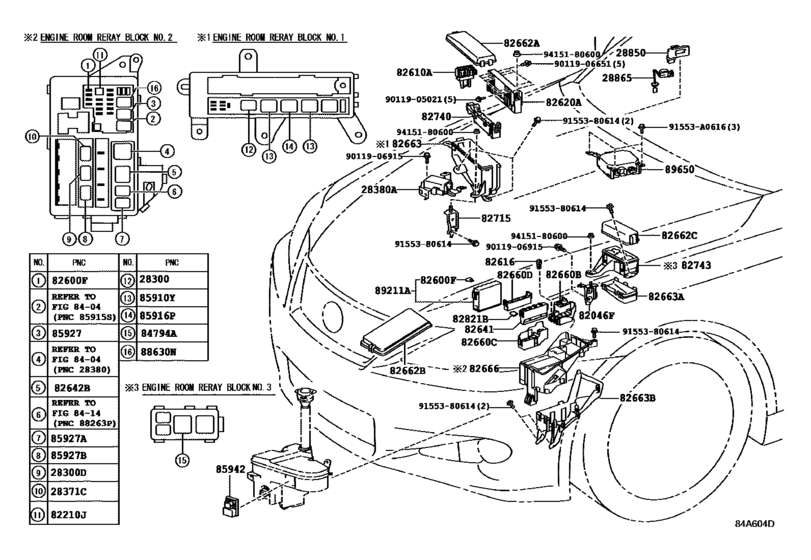

Switch & Relay & Computer ([04.2009 - ] ENGINE ROOM (0904- )LHD) Diagram Toyota LEXUS IS
- Year
- 2009 - 2010
- Sales region
- Europe
- Frame
- GSE20
- grade
- 250C
- ENGINE
- 4GRFSE
- TRANSMISSION
- MTM
- Model
- IS250
- From
- 04.2009
- To
- 08.2010
- Gear Shift Type
- 6F
- Vehicle Model
- IS250C
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28300
|
28300
28300-28010
Relay Assy, Starter
[04.2009 - 03.2014] 4GRFSE..GSE20 |
28300-28010 |
— | ||
| replacement | |||||
|
28300
|
28300
28300-21020 Relay Assy, Starter[04.2009 - 03.2014] 4GRFSE..GSE20 |
28300-21020 |
from US $44.86 |
||
|
28300D
|
28300D
90987-02027 Relay[04.2009 -] 4GRFSE..GSE20 |
90987-02027 |
from US $47.82 |
||
|
28371C
|
28371C
90987-02027 Relay[04.2009 -] 4GRFSE..GSE20 |
90987-02027 |
from US $47.82 |
||
|
28380A
|
28380A
23080-31040 Resister, Fuel Pump[04.2009 -] 4GRFSE..GSE20 |
23080-31040 |
US $58.01 |
||
|
28850
|
28850
28850-31010
Sensor Assy, Battery Current
[04.2009 - 07.2015] 4GRFSE..GSE20..LHD |
28850-31010 |
— | ||
|
28865
|
28865
28865-31010 Sensor, Battery Thermometer[04.2009 -] 4GRFSE..GSE20 |
28865-31010 |
from US $68.34 |
||
|
82046F
|
82046F
82046-30100 Wire Sub-Assy, Body Ground, No.1[04.2009 -] GSE20 |
82046-30100 |
US $14.41 |
||
|
82210J
|
82210J
90982-08283 Fusible Link[04.2009 -] GSE20 30A,TERMINAL:FEMALE,ENGINE ROOM R/B |
90982-08283 |
from US $1.35 |
||
|
82210J
|
82210J
90982-08298 Fusible Link[04.2009 - 07.2015] GSE20 30A,TERMINAL:FEMALE,LUGGAGE ROOM J/B |
90982-08298 |
from US $6.99 |
||
|
82600F
|
82600F
90982-09020 Fusible Link[04.2009 - 07.2015] GSE20 7.5A,MINI FUSE |
90982-09020 |
from US $0.84 |
||
|
82600F
|
82600F
90982-09021 Fusible Link[04.2009 - 07.2015] GSE20 10A,MINI FUSE |
90982-09021 |
from US $0.78 |
||
|
82600F
|
82600F
90982-09022 Instrument Panel Fuse[04.2009 - 07.2015] GSE20 15A,MINI FUSE |
90982-09022 |
from US $0.80 |
||
|
82600F
|
82600F
90982-09023 Instrument Panel Fuse[04.2009 - 07.2015] GSE20 20A,MINI FUSE |
90982-09023 |
from US $0.84 |
||
|
82600F
|
82600F
90982-09024 Instrument Panel Fuse[04.2009 - 07.2015] GSE20 25A,MINI FUSE |
90982-09024 |
from US $0.82 |
||
|
82600F
|
82600F
90982-09025 Instrument Panel Fuse[04.2009 - 07.2015] GSE20 30A,MINI FUSE |
90982-09025 |
from US $0.76 |
||
|
82610A
|
82610A
82610-30140 Block Assy, FuseFUSE [04.2009 - 07.2015] GSE20..LHD |
82610-30140 |
US $16.89 |
||
|
82616
|
82616
82616-58010 Puller, Fuse[04.2009 - 07.2015] GSE20 |
82616-58010 |
from US $2.22 |
||
|
82620A
|
82620A
82620-30170 Block Assy, Fusible Link[04.2009 - 07.2015] GSE20 |
82620-30170 |
from US $79.21 |
||
|
82641
|
82641
82641-30250 Relay, Integration No.1[04.2009 - 07.2015] GSE20 |
82641-30250 |
US $142.68 |
||
|
82642B
|
82642B
90987-02006 Relay[04.2009 - 08.2012] GSE20..LHD NORTHERN EUROPE SPEC |
90987-02006 |
from US $26.07 |
||
|
82660B
|
82660B
82660-30A00 Block Assy, Relay[04.2009 - 07.2015] GSE20 |
82660-30A00 |
US $31.45 |
||
|
82660C
|
82660C
82660-30A10 Block Assy, Relay[04.2009 - 07.2015] GSE20 |
82660-30A10 |
US $21.69 |
||
|
82660D
|
82660D
82660-30A20 Block Assy, Relay[04.2009 - 07.2015] GSE20 |
82660-30A20 |
from US $13.83 |
||
|
82662A
|
82662A
82662-53210
Cover, Relay Block, Upper, No.1
[04.2009 - 04.2012] GSE20..LHD |
82662-53210 |
— | ||
|
82662B
|
82662B
82662-53080 Cover, Relay Block, Upper, No.2[04.2009 - 08.2012] GSE20 |
82662-53080 |
US $35.24 |
||
|
82662C
|
82662C
82662-53110 Cover, Relay Block, Upper, No.3[04.2009 -] GSE20 |
82662-53110 |
US $9.32 |
||
|
82663
|
82663
82663-53040
Cover, Relay Block, Lower
[04.2009 - 07.2015] GSE20..LHD |
82663-53040 |
— | ||
|
82666
|
82666
82666-30730 Holder, Connector[04.2009 - 07.2015] GSE20 |
82666-30730 |
US $50.67 |
||
|
82715
|
82715
82715-30G10 Bracket,wiring Harness Clamp[04.2009 -] GSE20 |
82715-30G10 |
US $6.99 |
||
|
82740
|
82740
82740-30340 Block Assy, Engine Room Relay[04.2009 - 07.2015] GSE20 |
82740-30340 |
US $20.38 |
||
|
82743
|
82743
82743-30040 Block, Engine Room Relay, No.3ENGINE ROOM RELAY, NO.3 [04.2009 - 07.2015] GSE20..LHD |
82743-30040 |
US $24.90 |
||
|
82821B
|
82821B
82821-47090 Cover, Connector[04.2009 - 07.2015] GSE20 |
82821-47090 |
US $0.15 |
||
|
84794A
|
84794A
88263-21010 Relay[04.2009 -] GSE20; GSE20..LHD..6FC TAIWAN SPEC; GSE20..6FC WINDSHIELD DEICER-WITHOUT |
88263-21010 |
from US $40.09 |
||
|
85910Y
|
85910Y
90987-02025 Relay[04.2009 -] GSE20 |
90987-02025 |
from US $48.62 |
||
|
85916P
|
85916P
90987-02025 Relay[04.2009 -] GSE20 |
90987-02025 |
from US $48.62 |
||
|
85927
|
85927
90987-02027 Relay[04.2009 - 07.2015] GSE20 |
90987-02027 |
from US $47.82 |
||
|
85927A
|
85927A
90987-04004 Relay, Starter Cut[04.2009 -] GSE20 |
90987-04004 |
from US $47.21 |
||
|
85927B
|
85927B
90987-02027 Relay[04.2009 -] GSE20 |
90987-02027 |
from US $47.82 |
||
|
85942
|
85942
85942-30020 Relay, Headlamp Cleaner Control[04.2009 - 08.2010] GSE20..6F; GSE20..6FC HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING) |
85942-30020 |
US $145.60 |
||
| replacement | |||||
|
85942
|
85942
85942-58010 Relay, Cleaner Control[04.2009 - 08.2010] GSE20..6F; GSE20..6FC HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING) |
85942-58010 |
from US $90.08 |
||
|
88630N
|
88630N
90987-02027 Relay[04.2009 -] GSE20 |
90987-02027 |
from US $47.82 |
||
|
89211A
|
89211A
89211-53020 Computer, Multiplex Network Body[04.2009 -] GSE20 |
89211-53020 |
US $342.41 |
||
|
89650
|
89650
89650-53100
Computer Assy, Power Steering
[04.2009 -] GSE20..LHD |
89650-53100 |
— | ||
|
91553A0616
|
91553A0616
91553-A0616 New Genuine Part |
91553-A0616 |
US $1.08 |
||
|
9011905021
|
9011905021
90119-05021 BOLT WWASHER |
90119-05021 |
US $1.08 |
||
|
9011906651
|
9011906651
90119-06651 BOLT WWASHER |
90119-06651 |
from US $0.67 |
||
|
9011906915
|
9011906915
90119-06915 BOLT WWASHER |
90119-06915 |
from US $0.53 |
||
|
9155380614
|
9155380614
91553-80614 BOLT FLANGE |
91553-80614 |
US $1.08 |
||
|
9415180600
|
9415180600
94151-80600 Nut, Cap(For Cylinder Head Cover) |
94151-80600 |
from US $0.65 |
||
