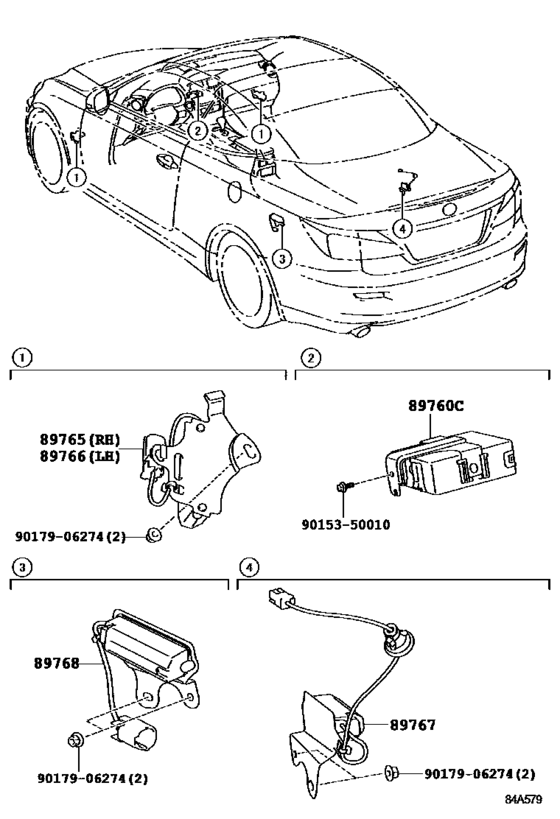

Tire Pressure Warning System ([04.2009 - ] (0904- )LHD) Diagram Toyota LEXUS IS
- Year
- 2009 - 2010
- Sales region
- Europe
- Frame
- GSE20
- grade
- 250C
- ENGINE
- 4GRFSE
- TRANSMISSION
- MTM
- Model
- IS250
- From
- 04.2009
- To
- 08.2010
- Gear Shift Type
- 6F
- Vehicle Model
- IS250C
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
89760C
|
89760C
89760-53030
Receiver Assy, Tire Pressure Monitor
[04.2009 - 07.2011] GSE20..LHD; GSE20..LHD UKRAINE OR KAZAKSTAN OR BELARUS SPEC&SPARE TIRE-TEMPORARY(T125/70D17); GSE20..LHD..6FC CHILE SPEC&SPARE TIRE-TEMPORARY(T125/70D17); GSE20..LHD..6FC CROATIA SPEC&TIRE INFLATION PRESSURE WARNING-WITHOUT; GSE20..LHD |
89760-53030 |
— | ||
| replacement | |||||
|
89760C
|
89760C
89760-53032
Receiver Assy, Tire Pressure Monitor
[04.2009 - 07.2011] GSE20..LHD; GSE20..LHD UKRAINE OR KAZAKSTAN OR BELARUS SPEC&SPARE TIRE-TEMPORARY(T125/70D17); GSE20..LHD..6FC CHILE SPEC&SPARE TIRE-TEMPORARY(T125/70D17); GSE20..LHD..6FC CROATIA SPEC&TIRE INFLATION PRESSURE WARNING-WITHOUT; GSE20..LHD |
89760-53032 |
— | ||
|
89765
|
89765
89765-53020
Antenna, Tire Pressure, Front Rh
[04.2009 - 09.2014] GSE20; GSE20..LHD UKRAINE OR KAZAKSTAN OR BELARUS SPEC&SPARE TIRE-TEMPORARY(T125/70D17); GSE20..LHD..6FC CHILE SPEC&SPARE TIRE-TEMPORARY(T125/70D17); GSE20..LHD..6FC CROATIA SPEC&TIRE INFLATION PRESSURE WARNING-WITHOUT; GSE20..LHD..6FC |
89765-53020 |
— | ||
| replacement | |||||
|
89765
|
89765
89765-53021
Antenna, Tire Pressure, Front Rh
[04.2009 - 09.2014] GSE20; GSE20..LHD UKRAINE OR KAZAKSTAN OR BELARUS SPEC&SPARE TIRE-TEMPORARY(T125/70D17); GSE20..LHD..6FC CHILE SPEC&SPARE TIRE-TEMPORARY(T125/70D17); GSE20..LHD..6FC CROATIA SPEC&TIRE INFLATION PRESSURE WARNING-WITHOUT; GSE20..LHD..6FC |
89765-53021 |
— | ||
|
89766
|
89766
89766-53010
Antenna, Tire Pressure, Front Lh
[04.2009 - 09.2014] GSE20; GSE20..LHD UKRAINE OR KAZAKSTAN OR BELARUS SPEC&SPARE TIRE-TEMPORARY(T125/70D17); GSE20..LHD..6FC CHILE SPEC&SPARE TIRE-TEMPORARY(T125/70D17); GSE20..LHD..6FC CROATIA SPEC&TIRE INFLATION PRESSURE WARNING-WITHOUT; GSE20..LHD..6FC |
89766-53010 |
— | ||
| replacement | |||||
|
89766
|
89766
89766-53011
Antenna, Tire Pressure, Front Lh
[04.2009 - 09.2014] GSE20; GSE20..LHD UKRAINE OR KAZAKSTAN OR BELARUS SPEC&SPARE TIRE-TEMPORARY(T125/70D17); GSE20..LHD..6FC CHILE SPEC&SPARE TIRE-TEMPORARY(T125/70D17); GSE20..LHD..6FC CROATIA SPEC&TIRE INFLATION PRESSURE WARNING-WITHOUT; GSE20..LHD..6FC |
89766-53011 |
— | ||
|
89767
|
89767
89767-53020
Antenna, Tire Pressure, Rear Rh
[04.2009 - 09.2014] GSE20; GSE20..LHD UKRAINE OR KAZAKSTAN OR BELARUS SPEC&SPARE TIRE-TEMPORARY(T125/70D17); GSE20..LHD..6FC CHILE SPEC&SPARE TIRE-TEMPORARY(T125/70D17); GSE20..LHD..6FC CROATIA SPEC&TIRE INFLATION PRESSURE WARNING-WITHOUT; GSE20..LHD..6FC |
89767-53020 |
— | ||
| replacement | |||||
|
89767
|
89767
89767-53021
Antenna, Tire Pressure, Rear Rh
[04.2009 - 09.2014] GSE20; GSE20..LHD UKRAINE OR KAZAKSTAN OR BELARUS SPEC&SPARE TIRE-TEMPORARY(T125/70D17); GSE20..LHD..6FC CHILE SPEC&SPARE TIRE-TEMPORARY(T125/70D17); GSE20..LHD..6FC CROATIA SPEC&TIRE INFLATION PRESSURE WARNING-WITHOUT; GSE20..LHD..6FC |
89767-53021 |
— | ||
|
89768
|
89768
89768-53020
Antenna, Tire Pressure, Rear Lh
[04.2009 - 09.2014] GSE20; GSE20..LHD UKRAINE OR KAZAKSTAN OR BELARUS SPEC&SPARE TIRE-TEMPORARY(T125/70D17); GSE20..LHD..6FC CHILE SPEC&SPARE TIRE-TEMPORARY(T125/70D17); GSE20..LHD..6FC CROATIA SPEC&TIRE INFLATION PRESSURE WARNING-WITHOUT; GSE20..LHD..6FC |
89768-53020 |
— | ||
| replacement | |||||
|
89768
|
89768
89768-53021
Antenna, Tire Pressure, Rear Lh
[04.2009 - 09.2014] GSE20; GSE20..LHD UKRAINE OR KAZAKSTAN OR BELARUS SPEC&SPARE TIRE-TEMPORARY(T125/70D17); GSE20..LHD..6FC CHILE SPEC&SPARE TIRE-TEMPORARY(T125/70D17); GSE20..LHD..6FC CROATIA SPEC&TIRE INFLATION PRESSURE WARNING-WITHOUT; GSE20..LHD..6FC |
89768-53021 |
— | ||
|
9015350010
|
9015350010
90153-50010 BOLT |
90153-50010 |
from US $0.68 |
||
|
9017906274
|
9017906274
90179-06274 Nut |
90179-06274 |
from US $0.68 |
||
