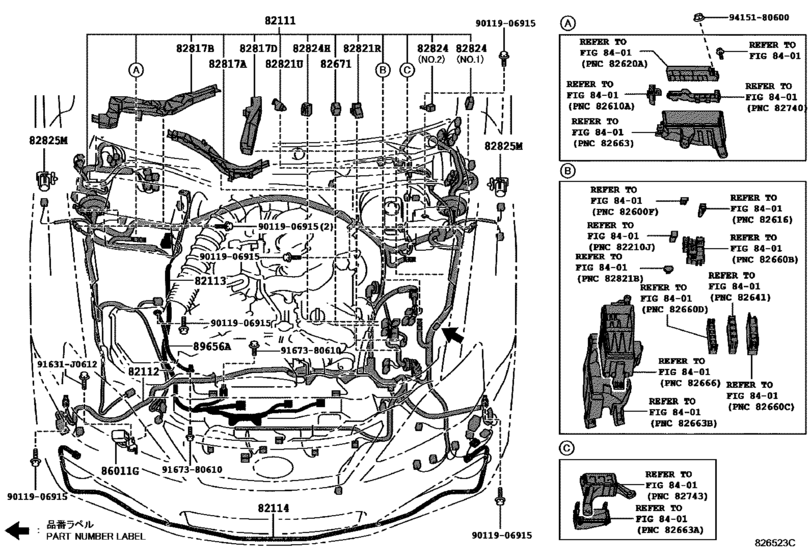

Wiring & Clamp ([04.2009 - ] ENGINE ROOM (0904- )LHD) Diagram Toyota LEXUS IS
- Year
- 2009 - 2010
- Sales region
- Europe
- Frame
- GSE20
- grade
- 250C
- ENGINE
- 4GRFSE
- TRANSMISSION
- MTM
- Model
- IS250
- From
- 04.2009
- To
- 08.2010
- Gear Shift Type
- 6F
- Vehicle Model
- IS250C
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82111
|
82111
82111-53D70
Wire, Engine Room Main
[04.2009 - 08.2010] GSE20..LHD..6F; GSE20..LHD..6F PART NUMBER LABEL=82111-53D70 |
82111-53D70 |
— | ||
|
82112
|
82112
82112-53220 Wire, Engine Room, No.2ENGINE ROOM, NO.2 [04.2009 - 08.2010] GSE20 |
82112-53220 |
US $535.81 |
||
|
82113
|
82113
82113-53020
Wire, Engine Room, No.3
[04.2009 -] GSE20..LHD |
82113-53020 |
— | ||
|
82114
|
82114
82114-53050 Wire, Engine Room, No.4ENGINE ROOM, NO.4 [04.2009 - 07.2015] GSE20 |
82114-53050 |
US $31.74 |
||
|
82671
|
82671
82671-30340 Block, Junction[04.2009 -] GSE20 |
82671-30340 |
US $10.21 |
||
|
82817A
|
82817A
82817-30B70
Protector, Wiring Harness, No.1
[04.2009 -] GSE20..LHD |
82817-30B70 |
— | ||
|
82817B
|
82817B
82817-53130
Protector, Wiring Harness, No.3
[04.2009 -] GSE20..LHD |
82817-53130 |
— | ||
|
82817D
|
82817D
82817-53200
Protector, Wiring Harness, No.5
[04.2009 -] GSE20..LHD |
82817-53200 |
— | ||
|
82821R
|
82821R
82821-30600 Cover, Connector[04.2009 - 08.2010] GSE20..6F; GSE20..6FC LUXURY PACKAGE&HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING) |
82821-30600 |
US $1.08 |
||
|
82824
|
82824
82824-30130 Connector, Wiring Harness[04.2009 -] GSE20 NO.1 |
82824-30130 |
US $3.94 |
||
|
82824
|
82824
82824-48020 Connector, Wiring Harness[04.2009 -] GSE20 NO.2 |
82824-48020 |
from US $24.38 |
||
|
82824H
|
82824H
82824-28180 Connector, Wiring Harness[04.2009 -] GSE20 |
82824-28180 |
US $6.41 |
||
|
86011G
|
86011G
86516-53010 Condenser[04.2009 -] GSE20 |
86516-53010 |
US $67.56 |
||
|
89656A
|
89656A
89656-30010 Wire, Power Steering Earth[04.2009 -] GSE20 |
89656-30010 |
US $15.38 |
||
|
91631J0612
|
91631J0612
91631-J0612 BRACKET |
91631-J0612 |
from US $0.70 |
||
|
9011906915
|
9011906915
90119-06915 BOLT WWASHER |
90119-06915 |
from US $0.53 |
||
|
9167380610
|
9167380610
91673-80610 New Genuine Part |
91673-80610 |
US $0.83 |
||
|
9415180600
|
9415180600
94151-80600 Nut, Cap(For Cylinder Head Cover) |
94151-80600 |
from US $0.65 |
