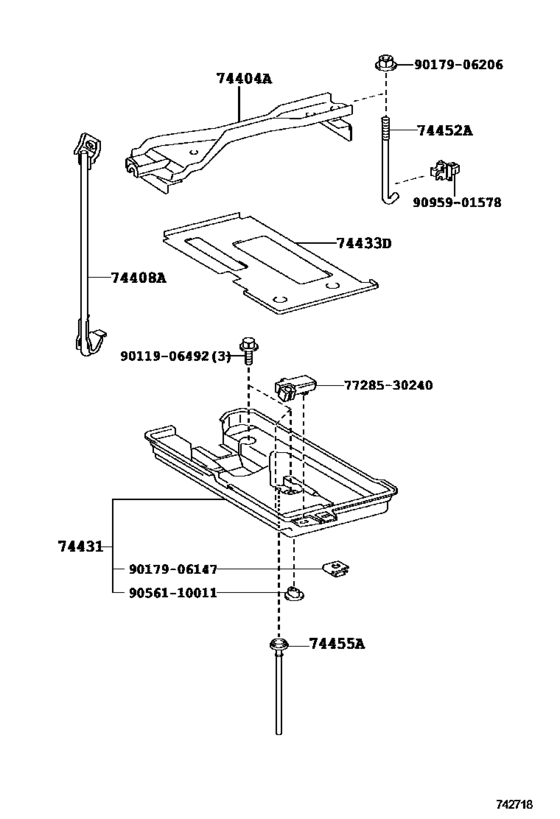

Battery Carrier ([04.2009 - ] (0904- )) Diagram Toyota LEXUS IS
- Year
- 2009 - 2015
- Sales region
- U.S.A.
- Frame
- GSE20
- grade
- 250C
- ENGINE
- 4GRFSE
- TRANSMISSION
- ATM
- Model
- IS250
- From
- 04.2009
- To
- 07.2015
- Gear Shift Type
- 6FC
- Vehicle Model
- IS250C
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
74404A
|
74404A
74404-22370 Clamp Sub-Assy, Battery[04.2009 - 07.2015] GSE2# |
74404-22370 |
from US $10.87 |
||
|
74408A
|
74408A
74408-22030 Bolt Sub-Assy, Battery Clamp, No.2[04.2009 - 02.2011] GSE2# |
74408-22030 |
US $6.70 |
||
| replacement | |||||
|
74408A
|
74408A
74408-22031 Bolt Sub-Assy, Battery Clamp, No.2[04.2009 - 02.2011] GSE2# |
74408-22031 |
from US $4.56 |
||
|
74408A
|
74408A
74408-22031 Bolt Sub-Assy, Battery Clamp, No.2[03.2011 -] GSE2# |
74408-22031 |
from US $4.56 |
||
|
74431
|
74431
74431-53050 Tray, BatteryBATTERY [04.2009 -] GSE2# |
74431-53050 |
US $103.93 |
||
|
74433D
|
74433D
74433-53030
Support, Battery Tray,no.1
[04.2009 - 08.2009] GSE2# |
74433-53030 |
— | ||
| replacement | |||||
|
74433D
|
74433D
74433-53031
Support, Battery Tray,no.1
[04.2009 - 08.2009] GSE2# |
74433-53031 |
— | ||
|
74433D
|
74433D
74433-53031
Support, Battery Tray,no.1
[09.2009 -] GSE2# |
74433-53031 |
— | ||
|
74452A
|
74452A
74452-53020 Bolt, Battery Clamp, No.2[04.2009 -] GSE2# |
74452-53020 |
from US $2.57 |
||
|
74455A
|
74455A
74455-30020
Hose, Battery Drain
[04.2009 -] GSE2# |
74455-30020 |
— | ||
|
7728530240
|
7728530240
77285-30240
Bracket, Fuel Tube
|
77285-30240 |
— | ||
|
9011906492
|
9011906492
90119-06492 BOLT |
90119-06492 |
from US $0.76 |
||
|
9017906147
|
9017906147
90179-06147 NUT |
90179-06147 |
from US $2.69 |
||
|
9017906206
|
9017906206
90179-06206 Nut |
90179-06206 |
from US $0.76 |
||
|
9056110011
|
9056110011
90561-10011 New Genuine Part |
90561-10011 |
US $0.87 |
||
|
9095901578
|
9095901578
90959-01578 CLAMP |
90959-01578 |
US $1.25 |
||
