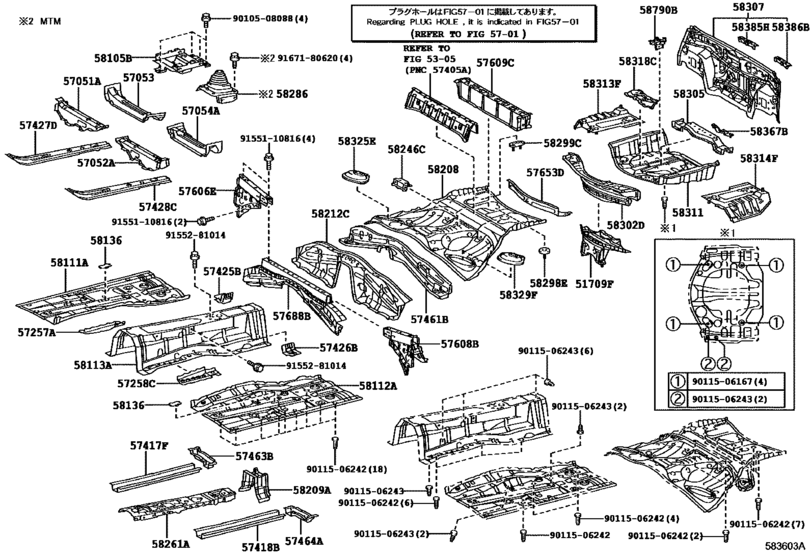

Floor Pan & Lower Back Panel ([04.2009 - ] FLOOR PAN & LOWER BACK PANEL (0904- )) Diagram Toyota LEXUS IS
- Year
- 2009 - 2015
- Sales region
- U.S.A.
- Frame
- GSE20
- grade
- 250C
- ENGINE
- 4GRFSE
- TRANSMISSION
- ATM
- Model
- IS250
- From
- 04.2009
- To
- 07.2015
- Gear Shift Type
- 6FC
- Vehicle Model
- IS250C
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
51709F
|
51709F
51709-53010 Bracket Sub-Assy, Torsion BarTORSION BAR [04.2009 -] GSE2# |
51709-53010 |
US $152.88 |
||
|
57051A
|
57051A
57051-53030 Member Sub-Assy, Front Floor Cross, RhFRONT FLOOR CROSS, RH [04.2009 -] GSE2# |
57051-53030 |
US $81.54 |
||
|
57052A
|
57052A
57052-53030 Member Sub-Assy, Front Floor Cross, LhFRONT FLOOR CROSS, LH [04.2009 -] GSE2# |
57052-53030 |
US $81.54 |
||
|
57053
|
57053
57053-30071 Reinforcement Sub-Assy, Front Floor Cross Member, Rh[04.2009 -] GSE2# |
57053-30071 |
US $57.51 |
||
|
57054A
|
57054A
57054-30071 Reinforcement Sub-Assy, Front Floor Cross Member, Lh[04.2009 -] GSE2# |
57054-30071 |
US $57.51 |
||
|
57257A
|
57257A
57257-30041 Bracket, Engine Rear Mounting Member, Rh[04.2009 - 06.2014] GSE2# |
57257-30041 |
US $42.08 |
||
|
57257A
|
57257A
57257-30042 Bracket, Engine Rear Mounting Member, Rh[06.2014 -] GSE2# |
57257-30042 |
US $40.48 |
||
|
57258C
|
57258C
57258-30091 Bracket, Engine Rear Mounting Member, Lh[04.2009 -] GSE2# |
57258-30091 |
US $38.15 |
||
|
57417F
|
57417F
57417-24040 Reinforcement, Front Floor Under, Rh[11.2013 -] GSE2# |
57417-24040 |
US $44.26 |
||
|
57417F
|
57417F
57417-53020 Reinforcement, Front Floor Under, Rh[04.2009 - 11.2013] GSE2# |
57417-53020 |
US $44.26 |
||
| replacement | |||||
|
57417F
|
57417F
57417-24040 Reinforcement, Front Floor Under, Rh[04.2009 - 11.2013] GSE2# |
57417-24040 |
US $44.26 |
||
|
57418B
|
57418B
57417-24040 Reinforcement, Front Floor Under, Rh[11.2013 -] GSE2# |
57417-24040 |
US $44.26 |
||
|
57418B
|
57418B
57417-53020 Reinforcement, Front Floor Under, Rh[04.2009 - 11.2013] GSE2# |
57417-53020 |
US $44.26 |
||
| replacement | |||||
|
57418B
|
57418B
57417-24040 Reinforcement, Front Floor Under, Rh[04.2009 - 11.2013] GSE2# |
57417-24040 |
US $44.26 |
||
|
57425B
|
57425B
57425-30020 Reinforcement, Front Floor, No.2 Rh[04.2009 -] GSE2# |
57425-30020 |
US $11.21 |
||
|
57426B
|
57426B
57426-30020 Reinforcement, Front Floor, No.2 Lh[04.2009 -] GSE2# |
57426-30020 |
US $11.21 |
||
|
57427D
|
57427D
57427-30030 Reinforcement, Front Floor, Upper[04.2009 -] GSE2# |
57427-30030 |
US $46.88 |
||
|
57428C
|
57428C
57427-30030 Reinforcement, Front Floor, Upper[04.2009 -] GSE2# |
57427-30030 |
US $46.88 |
||
|
57461B
|
57461B
57407-30151 Member Sub-Assy, Center Floor Cross[04.2009 - 07.2015] GSE2# |
57407-30151 |
US $90.27 |
||
|
57463B
|
57463B
57508-30020 Reinforcement, Center Floor Crossmember, Rh[04.2009 -] GSE2# |
57508-30020 |
US $17.76 |
||
|
57464A
|
57464A
57509-30020 Reinforcement, Center Floor Crossmember, Lh[04.2009 -] GSE2# |
57509-30020 |
US $17.76 |
||
|
57606E
|
57606E
57603-53010 Member Sub-Assy, Rear Floor Cross, No.2REAR FLOOR CROSS, NO.2 [04.2009 -] GSE2# |
57603-53010 |
US $90.27 |
||
|
57608B
|
57608B
57604-53010 Member Sub-Assy, Rear Floor Cross, No.4REAR FLOOR CROSS, NO.4 [04.2009 -] GSE2# |
57604-53010 |
US $90.27 |
||
|
57609C
|
57609C
57609-53030 Member Sub-Assy, Rear Floor Cross, No.5REAR FLOOR CROSS, NO.5 [04.2009 -] GSE2# |
57609-53030 |
US $152.88 |
||
|
57653D
|
57653D
57606-30061 Member Sub-Assy, Rear Floor Cross, No.2[04.2009 - 07.2015] GSE2# |
57606-30061 |
US $71.93 |
||
|
57688B
|
57688B
57503-53010 Reinforcement, Rear Floor CrossmemberREAR FLOOR CROSSMEMBER [04.2009 -] GSE2# |
57503-53010 |
US $182 |
||
|
58105B
|
58105B
58105-53010 Panel Sub-Assy, Front Floor Rear Upper Sub[04.2009 -] GSE2# |
58105-53010 |
US $51.69 |
||
|
58111A
|
58111A
58111-24050 Pan, Front Floor, Rh[10.2013 - 06.2014] GSE2# |
58111-24050 |
US $218.40 |
||
| replacements | |||||
|
58111A
|
58111A
57257-30042 Bracket, Engine Rear Mounting Member, Rh[10.2013 - 06.2014] GSE2# |
57257-30042 |
US $40.48 |
||
|
58111A
|
58111A
58111-24060 Pan, Front Floor, Rh[10.2013 - 06.2014] GSE2# |
58111-24060 |
US $198.02 |
||
|
58111A
|
58111A
87212-30431 Duct, Air, Rear No.1[10.2013 - 06.2014] GSE2# |
87212-30431 |
US $57.51 |
||
|
58111A
|
58111A
58111-24060 Pan, Front Floor, Rh[06.2014 -] GSE2# |
58111-24060 |
US $198.02 |
||
|
58111A
|
58111A
58111-53040 Pan, Front Floor, Rh[04.2009 - 10.2013] GSE2# |
58111-53040 |
US $218.40 |
||
| replacements | |||||
|
58111A
|
58111A
57257-30042 Bracket, Engine Rear Mounting Member, Rh[04.2009 - 10.2013] GSE2# |
57257-30042 |
US $40.48 |
||
|
58111A
|
58111A
58111-24060 Pan, Front Floor, Rh[04.2009 - 10.2013] GSE2# |
58111-24060 |
US $198.02 |
||
|
58111A
|
58111A
87212-30431 Duct, Air, Rear No.1[04.2009 - 10.2013] GSE2# |
87212-30431 |
US $57.51 |
||
|
58112A
|
58112A
58112-24040 Panel, Front Floor, Lh[10.2013 -] GSE2# |
58112-24040 |
US $198.02 |
||
|
58112A
|
58112A
58112-53031 Panel, Front Floor, Lh[04.2009 - 10.2013] GSE2# |
58112-53031 |
US $218.40 |
||
| replacement | |||||
|
58112A
|
58112A
58112-24040 Panel, Front Floor, Lh[04.2009 - 10.2013] GSE2# |
58112-24040 |
US $198.02 |
||
|
58113A
|
58113A
58113-53030 Panel, Front Floor, Center[04.2009 -] GSE2# |
58113-53030 |
US $298.48 |
||
|
58136
|
58136
58136-51010 Cover, Front Floor Hole[04.2009 -] GSE2# |
58136-51010 |
US $2.04 |
||
|
58208
|
58208
58211-30350 Pan, Center Floor[04.2009 -] GSE2# |
58211-30350 |
US $198.02 |
||
|
58209A
|
58209A
58209-30050 Reinforcement Sub-Assy, Drive Shaft Center Support[04.2009 -] GSE2# |
58209-30050 |
US $36.98 |
||
|
58212C
|
58212C
58202-30091 Pan Sub-Assy, Center Floor, Front[04.2009 -] GSE2# |
58202-30091 |
US $116.48 |
||
|
58246C
|
58246C
58246-22020 Bracket, Rear Seat Hinge, Center No.2[04.2009 -] GSE2# |
58246-22020 |
US $11.07 |
||
|
58261A
|
58261A
58261-30231 Cover, Transmission[04.2009 -] GSE2#..6FC |
58261-30231 |
US $66.98 |
||
|
58298E
|
58298E
58298-30030 Bracket, Hot Air Intake, No.1[04.2009 -] GSE2# |
58298-30030 |
US $4.80 |
||
|
58299C
|
58299C
58299-30010 Bracket, Hot Air Intake, No.2[04.2009 -] GSE2# |
58299-30010 |
US $9.03 |
||
|
58302D
|
58302D
58302-53010 Panel Sub-Assy, Rear Floor, FrontREAR FLOOR, FRONT [04.2009 -] GSE2# |
58302-53010 |
US $158.70 |
||
|
58305
|
58305
58305-30220 Bracket Sub-Assy, Spare Wheel Clamp[04.2009 -] GSE2# |
58305-30220 |
US $45.14 |
||
|
58307
|
58307
58307-53070
Panel Sub-Assy, Body Lower Back
[04.2009 -] GSE2# |
58307-53070 |
— | ||
|
58311
|
58311
58311-53030 Pan, Rear Floor[04.2009 -] GSE2# |
58311-53030 |
US $215.49 |
||
|
58313F
|
58313F
58313-53030 Extension, Rear Floor Pan To Quarter Panel, Rh[04.2009 - 07.2015] GSE2# |
58313-53030 |
US $54.89 |
||
|
58314F
|
58314F
58314-53030 Extension, Rear Floor Pan To Quarter Panel, Lh[04.2009 - 07.2015] GSE2# |
58314-53030 |
US $54.89 |
||
|
58318C
|
58318C
58318-53010 Bracket, Rear Floor CrossmemberREAR FLOOR CROSSMEMBER [04.2009 -] GSE2# |
58318-53010 |
US $34.07 |
||
|
58325E
|
58325E
58325-30020 Cover, Rear Floor Service Hole[04.2009 -] GSE2# |
58325-30020 |
US $17.18 |
||
|
58329F
|
58329F
58329-30030 Cover, Rear Floor Service Hole, No.2[04.2009 -] GSE2# |
58329-30030 |
US $19.51 |
||
|
58367B
|
58367B
58367-30120 Bracket, Fuel Tube[04.2009 -] GSE2# |
58367-30120 |
from US $8.01 |
||
|
58385H
|
58385H
58385-53040 Bracket, Rear Bumper Cover, RhREAR BUMPER COVER, NO.1 [04.2009 -] GSE2# |
58385-53040 |
US $9.32 |
||
|
58386B
|
58386B
58386-53020 Bracket, Rear Bumper Cover, No.2REAR BUMPER COVER, NO.2 [04.2009 -] GSE2# |
58386-53020 |
US $9.55 |
||
|
58790B
|
58790B
58790-30010 Carrier Assy, Jack[04.2009 -] GSE2# |
58790-30010 |
from US $10.47 |
||
|
9010508088
|
9010508088
90105-08088 New Genuine Part |
90105-08088 |
US $1.97 |
||
|
9011506167
|
9011506167
90115-06167 Bolt, Weld(For Front Floor Panel, Center) |
90115-06167 |
US $1.25 |
||
|
9011506242
|
9011506242
90115-06242 New Genuine Part |
90115-06242 |
US $1.08 |
||
|
9011506243
|
9011506243
90115-06243 Bolt, Weld(For Front Floor Panel, Center) |
90115-06243 |
US $1.43 |
||
|
9155110816
|
9155110816
91551-10816 BOLT FLANGE |
91551-10816 |
US $1.43 |
||
|
9155281014
|
9155281014
91552-81014 New Genuine Part |
91552-81014 |
US $1.10 |
||
|
9167180620
|
9167180620
91671-80620 New Genuine Part |
91671-80620 |
US $1.08 |
||
