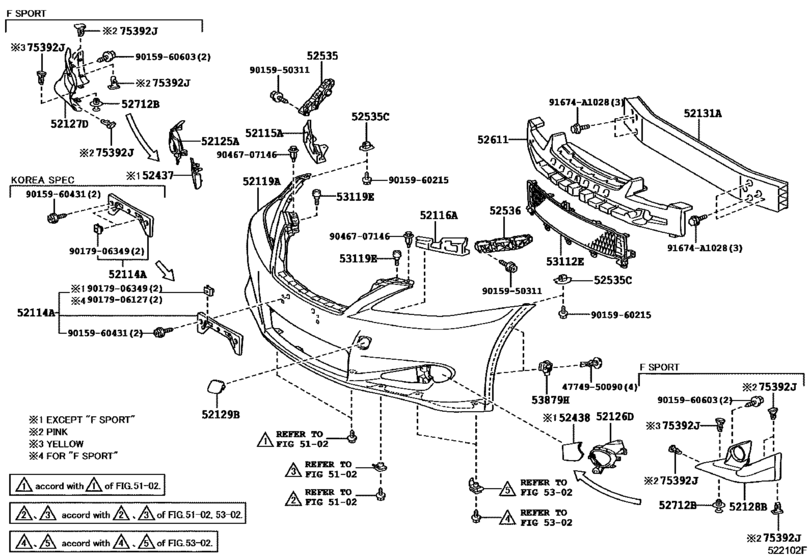

Front Bumper & Bumper Stay ([04.2009 - ] (0904- )) Diagram Toyota LEXUS IS
- Year
- 2009 - 2015
- Sales region
- U.S.A.
- Frame
- GSE20
- grade
- 250C
- ENGINE
- 4GRFSE
- TRANSMISSION
- ATM
- Model
- IS250
- From
- 04.2009
- To
- 07.2015
- Gear Shift Type
- 6FC
- Vehicle Model
- IS250C
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
52114A
|
52114A
52114-53160 Bracket, Front Bumper Extention MountingFRONT BUMPER EXTENTION MOUNTING [04.2009 - 08.2012] GSE20..6FC KOREA SPEC; GSE20..6FC KOREA SPEC&HEAD LAMP CLEANER-WITH; GSE20..6FC KOREA SPEC&HEAD LAMP CLEANER-WITH&CLEARANCE & BACK SONAR-WITH; GSE20..6FC KOREA SPEC&CLEARANCE & BACK SONAR-WITH |
52114-53160 |
US $33.74 |
||
|
52114A
|
52114A
52114-53180
Bracket, Front Bumper Extention Mounting
[04.2009 -] GSE2#; GSE20..6FC KOREA SPEC; GSE20..6FC KOREA SPEC&LUXURY PACKAGE; GSE20..6FC KOREA SPEC&F SPORT |
52114-53180 |
— | ||
|
52114A
|
52114A
52114-53200 Bracket, Front Bumper Extention Mounting[08.2012 -] GSE2# F SPORT |
52114-53200 |
US $26.94 |
||
|
52114A
|
52114A
52114-53210 Bracket, Front Bumper Extention Mounting[08.2012 - 08.2014] GSE20 KOREA SPEC&F SPORT; GSE20 KOREA SPEC&F SPORT&HEAD LAMP CLEANER-WITH; GSE20 KOREA SPEC&F SPORT&HEAD LAMP CLEANER-WITH&CLEARANCE & BACK SONAR-WITH; GSE20 KOREA SPEC&F SPORT&CLEARANCE & BACK SONAR-WITH |
52114-53210 |
from US $34.60 |
||
|
52115A
|
52115A
52115-53060 Support, Front Bumper Side, RhFRONT BUMPER SIDE, RH [04.2009 - 07.2015] GSE2# |
52115-53060 |
US $57.66 |
||
|
52115A
|
52115A
52115-53070 Support, Front Bumper Side, Rh[08.2012 - 08.2014] GSE20 KOREA SPEC&F SPORT&HEADLAMP-DISCHAGE & WITH(AUTO LEVELING) |
52115-53070 |
from US $75.60 |
||
|
52115A
|
52115A
52115-53080 Support, Front Bumper Side, Rh[08.2010 - 08.2014] GSE20..6FC KOREA SPEC&LUXURY PACKAGE&HEADLAMP-DISCHAGE & WITH(AUTO LEVELING) |
52115-53080 |
US $55.33 |
||
|
52116A
|
52116A
52116-53060 Support, Front Bumper Side, LhFRONT BUMPER SIDE, LH [04.2009 - 07.2015] GSE2# |
52116-53060 |
US $57.66 |
||
|
52116A
|
52116A
52116-53070 Support, Front Bumper Side, Lh[08.2012 - 08.2014] GSE20 KOREA SPEC&F SPORT&HEADLAMP-DISCHAGE & WITH(AUTO LEVELING) |
52116-53070 |
from US $74.20 |
||
|
52116A
|
52116A
52116-53080 Support, Front Bumper Side, Lh[08.2010 - 08.2014] GSE20..6FC KOREA SPEC&LUXURY PACKAGE&HEADLAMP-DISCHAGE & WITH(AUTO LEVELING) |
52116-53080 |
US $72.60 |
||
|
52119A
|
52119A
52119-53958
Cover, Front Bumper
[04.2009 - 08.2010] GSE20..6FC KOREA SPEC&CLEARANCE & BACK SONAR-WITH |
52119-53958 |
— | ||
|
52119A
|
52119A
52119-53961 Cover, Front BumperFRONT BUMPER [04.2009 - 07.2015] GSE2# |
52119-53961 |
US $639.18 |
||
|
52119A
|
52119A
52119-53962 Cover, Front BumperFRONT BUMPER [04.2009 - 08.2010] GSE2#..6FC PRE-COLLISION SYSTEM-WITH(*PSB & *PBA)&CLEARANCE & BACK SONAR-WITH; GSE2# CLEARANCE & BACK SONAR-WITH |
52119-53962 |
from US $424.86 |
||
|
52119A
|
52119A
52119-53963
Cover, Front Bumper
[04.2009 - 08.2010] GSE2#..6FC PRE-COLLISION SYSTEM-WITH(*PSB & *PBA)&HEAD LAMP CLEANER-WITH; GSE20..6F HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING) |
52119-53963 |
— | ||
|
52119A
|
52119A
52119-53964 Cover, Front BumperFRONT BUMPER [04.2009 - 08.2010] GSE2#..6FC PRE-COLLISION SYSTEM-WITH(*PSB & *PBA)&HEAD LAMP CLEANER-WITH&CLEARANCE & BACK SON AR-WITH; GSE20..6F HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING)&CLEARANCE & BACK SONAR-WITH; GSE2#..6FC HEAD LAMP CLEANER-WITH&CLEARANCE & BAC |
52119-53964 |
US $424.86 |
||
|
52119A
|
52119A
52119-53965
Cover, Front Bumper
[04.2009 - 08.2012] GSE20..6FC KOREA SPEC&HEAD LAMP CLEANER-WITH |
52119-53965 |
— | ||
|
52119A
|
52119A
52119-53966
Cover, Front Bumper
[04.2009 - 08.2010] GSE20..6FC KOREA SPEC&HEAD LAMP CLEANER-WITH&CLEARANCE & BACK SONAR-WITH |
52119-53966 |
— | ||
|
52119A
|
52119A
52119-53967
Cover, Front Bumper
[04.2009 - 08.2012] GSE20..6FC KOREA SPEC |
52119-53967 |
— | ||
|
52119A
|
52119A
52119-53988
Cover, Front Bumper
[08.2012 - 08.2014] GSE20 KOREA SPEC&F SPORT |
52119-53988 |
— | ||
|
52119A
|
52119A
52119-53989
Cover, Front Bumper
[08.2012 - 08.2014] GSE20 KOREA SPEC&F SPORT&CLEARANCE & BACK SONAR-WITH |
52119-53989 |
— | ||
|
52119A
|
52119A
52119-53990
Cover, Front Bumper
[08.2012 - 07.2015] GSE2# F SPORT; GSE2# F SPORT&PRE-COLLISION SYSTEM-WITH(*PSB & *PBA & *PB) |
52119-53990 |
— | ||
|
52119A
|
52119A
52119-53991
Cover, Front Bumper
[08.2012 - 07.2015] GSE2# F SPORT&CLEARANCE & BACK SONAR-WITH; GSE2# F SPORT&PRE-COLLISION SYSTEM-WITH(*PSB & *PBA & *PB)&CLEARANCE & BACK SONAR-WITH |
52119-53991 |
— | ||
|
52119A
|
52119A
52119-53992
Cover, Front Bumper
[08.2012 - 07.2015] GSE2# F SPORT&PRE-COLLISION SYSTEM-WITH(*PSB & *PBA & *PB)&HEAD LAMP CLEANER-WITH; GSE2# F SPORT&HEAD LAMP CLEANER-WITH |
52119-53992 |
— | ||
|
52119A
|
52119A
52119-53993
Cover, Front Bumper
[08.2012 - 07.2015] GSE2# F SPORT&PRE-COLLISION SYSTEM-WITH(*PSB & *PBA & *PB)&HEAD LAMP CLEANER-WITH&CLEARA NCE & BACK SONAR-WITH; GSE2# F SPORT&HEAD LAMP CLEANER-WITH&CLEARANCE & BACK SONAR-WITH |
52119-53993 |
— | ||
|
52119A
|
52119A
52119-53998
Cover, Front Bumper
[08.2012 - 08.2014] GSE20 KOREA SPEC&F SPORT&HEAD LAMP CLEANER-WITH |
52119-53998 |
— | ||
|
52119A
|
52119A
52119-53999
Cover, Front Bumper
[08.2012 - 08.2014] GSE20 KOREA SPEC&F SPORT&HEAD LAMP CLEANER-WITH&CLEARANCE & BACK SONAR-WITH |
52119-53999 |
— | ||
|
52119A
|
52119A
52119-AA911
Cover, Front Bumper
[08.2010 - 08.2012] GSE20..6FC KOREA SPEC&CLEARANCE & BACK SONAR-WITH |
52119-AA911 |
— | ||
|
52119A
|
52119A
52119-AA912
Cover, Front Bumper
[08.2010 - 07.2015] GSE2#..6FC PRE-COLLISION SYSTEM-WITH(*PSB & *PBA & *PB)&CLEARANCE & BACK SONAR-WITH; GSE2# CLEARANCE & BACK SONAR-WITH |
52119-AA912 |
— | ||
|
52119A
|
52119A
52119-AA913
Cover, Front Bumper
[08.2010 - 07.2015] GSE2#..6FC HEAD LAMP CLEANER-WITH&CLEARANCE & BACK SONAR-WITH; GSE2#..6FC PRE-COLLISION SYSTEM-WITH(*PSB & *PBA & *PB)&HEAD LAMP CLEANER-WITH&CLEARANCE & BA CK SONAR-WITH |
52119-AA913 |
— | ||
|
52119A
|
52119A
52119-AA914
Cover, Front Bumper
[08.2010 - 08.2012] GSE20..6FC KOREA SPEC&HEAD LAMP CLEANER-WITH&CLEARANCE & BACK SONAR-WITH |
52119-AA914 |
— | ||
|
52125A
|
52125A
52125-53010 Bracket, Fog Lamp Mounting, RhFOG LAMP MOUNTING, RH [04.2009 -] GSE2# |
52125-53010 |
US $18.93 |
||
|
52125A
|
52125A
52125-53030 Bracket, Fog Lamp Mounting, Rh[08.2012 - 08.2014] GSE20 KOREA SPEC&F SPORT; GSE20 KOREA SPEC&F SPORT&HEAD LAMP CLEANER-WITH; GSE20 KOREA SPEC&F SPORT&HEAD LAMP CLEANER-WITH&CLEARANCE & BACK SONAR-WITH; GSE20 KOREA SPEC&F SPORT&CLEARANCE & BACK SONAR-WITH |
52125-53030 |
from US $20.27 |
||
|
52126D
|
52126D
52126-53010 Bracket, Fog Lamp Mounting, LhFOG LAMP MOUNTING, LH [04.2009 -] GSE2# |
52126-53010 |
US $18.93 |
||
|
52126D
|
52126D
52126-53030 Bracket, Fog Lamp Mounting, Lh[08.2012 - 08.2014] GSE20 KOREA SPEC&F SPORT; GSE20 KOREA SPEC&F SPORT&HEAD LAMP CLEANER-WITH; GSE20 KOREA SPEC&F SPORT&HEAD LAMP CLEANER-WITH&CLEARANCE & BACK SONAR-WITH; GSE20 KOREA SPEC&F SPORT&CLEARANCE & BACK SONAR-WITH |
52126-53030 |
from US $21.45 |
||
|
52127D
|
52127D
76851-53020-A2 Cover, Front Bumper Hole, Rh[08.2012 - 07.2015] GSE2# F SPORT,WHITE NOVA GF.,083 |
76851-53020-A2 |
US $263.84 |
||
|
52127D
|
52127D
76851-53020-B1 Cover, Front Bumper Hole, Rh[08.2012 - 07.2015] GSE2# F SPORT,MERCURY GRAY MC.,1H9 |
76851-53020-B1 |
US $263.84 |
||
|
52127D
|
52127D
76851-53020-B3 Cover, Front Bumper Hole, Rh[08.2012 - 07.2015] GSE2# F SPORT,PLATINUM SILVER ME.,1J4 |
76851-53020-B3 |
US $263.84 |
||
|
52127D
|
52127D
76851-53020-C0 Cover, Front Bumper Hole, Rh[08.2012 - 07.2015] GSE2# F SPORT,BLACK,212 |
76851-53020-C0 |
US $263.84 |
||
|
52127D
|
52127D
76851-53020-C1 Cover, Front Bumper Hole, Rh[08.2012 - 07.2015] GSE20 F SPORT,STARLIGHT BLACK GF.,217 |
76851-53020-C1 |
US $263.84 |
||
|
52127D
|
52127D
76851-53020-D0 Cover, Front Bumper Hole, Rh[08.2012 - 07.2015] GSE2# F SPORT,RED MC.CS.,3R1 |
76851-53020-D0 |
US $263.84 |
||
|
52127D
|
52127D
76851-53020-J0 Cover, Front Bumper Hole, Rh[08.2012 - 07.2015] GSE2# F SPORT,BLUE ME.,8U1 |
76851-53020-J0 |
US $263.84 |
||
|
52128B
|
52128B
76852-53020-A2 Cover, Front Bumper Hole, Lh[08.2012 - 07.2015] GSE2# F SPORT,WHITE NOVA GF.,083 |
76852-53020-A2 |
US $263.84 |
||
|
52128B
|
52128B
76852-53020-B1 Cover, Front Bumper Hole, Lh[08.2012 - 07.2015] GSE2# F SPORT,MERCURY GRAY MC.,1H9 |
76852-53020-B1 |
US $263.84 |
||
|
52128B
|
52128B
76852-53020-B3 Cover, Front Bumper Hole, Lh[08.2012 - 07.2015] GSE2# F SPORT,PLATINUM SILVER ME.,1J4 |
76852-53020-B3 |
US $263.84 |
||
|
52128B
|
52128B
76852-53020-C0 Cover, Front Bumper Hole, Lh[08.2012 - 07.2015] GSE2# F SPORT,BLACK,212 |
76852-53020-C0 |
US $263.84 |
||
|
52128B
|
52128B
76852-53020-C1 Cover, Front Bumper Hole, Lh[08.2012 - 07.2015] GSE20 F SPORT,STARLIGHT BLACK GF.,217 |
76852-53020-C1 |
US $263.84 |
||
|
52128B
|
52128B
76852-53020-D0 Cover, Front Bumper Hole, Lh[08.2012 - 07.2015] GSE2# F SPORT,RED MC.CS.,3R1 |
76852-53020-D0 |
US $263.84 |
||
|
52128B
|
52128B
76852-53020-J0 Cover, Front Bumper Hole, Lh[08.2012 - 07.2015] GSE2# F SPORT,BLUE ME.,8U1 |
76852-53020-J0 |
US $263.84 |
||
|
52129B
|
52129B
52129-53906
Cover, Front Bumper, Lower
[04.2009 - 07.2015] GSE2# |
52129-53906 |
— | ||
|
52129B
|
52129B
52129-53909 Cover, Front Bumper, Lower[08.2012 - 08.2014] GSE20 KOREA SPEC&F SPORT,BLACK(LESS COLOR); GSE20 KOREA SPEC&F SPORT&HEAD LAMP CLEANER-WITH,BLACK(LESS COLOR); GSE20 KOREA SPEC&F SPORT&HEAD LAMP CLEANER-WITH&CLEARANCE & BACK SONAR-WITH,BLACK(LESS C OLOR); GSE20 KOREA SPEC&F SPORT&CLE |
52129-53909 |
US $4.96 |
||
|
52131A
|
52131A
52131-53060 Reinforcement, Front BumperFRONT BUMPER [04.2009 - 07.2015] GSE2# |
52131-53060 |
US $426.61 |
||
|
52437
|
52437
52437-53030 Cover, Front Bumper Guard, RhFRONT BUMPER GUARD, RH [04.2009 -] GSE2# |
52437-53030 |
US $11.07 |
||
|
52438
|
52438
52438-53030 Cover, Front Bumper Guard, LhFRONT BUMPER GUARD, LH [04.2009 -] GSE2# |
52438-53030 |
US $11.07 |
||
|
52535
|
52535
52535-53011 Retainer, Front Bumper Side, Rh[04.2009 -] GSE2# |
52535-53011 |
from US $32.83 |
||
|
52535C
|
52535C
52535-50060 Retainer, Front Bumper Side[04.2009 -] GSE2# |
52535-50060 |
from US $3.55 |
||
|
52536
|
52536
52536-53011 Retainer, Front Bumper Side, Lh[04.2009 -] GSE2# |
52536-53011 |
from US $33.57 |
||
|
52611
|
52611
52611-53120 Absorber, Front Bumper EnergyFRONT BUMPER ENERGY [04.2009 -] GSE2# |
52611-53120 |
from US $76.70 |
||
|
52611
|
52611
52611-53140 Absorber, Front Bumper Energy[08.2012 - 08.2014] GSE20 KOREA SPEC&F SPORT; GSE20 KOREA SPEC&F SPORT&HEAD LAMP CLEANER-WITH; GSE20 KOREA SPEC&F SPORT&HEAD LAMP CLEANER-WITH&CLEARANCE & BACK SONAR-WITH; GSE20 KOREA SPEC&F SPORT&CLEARANCE & BACK SONAR-WITH |
52611-53140 |
from US $54.30 |
||
|
52712B
|
52712B
90467-07201 Clamp(For Cool Air Intake)[08.2012 - 07.2015] GSE2# F SPORT |
90467-07201 |
from US $0.93 |
||
|
53112E
|
53112E
53112-53130 Grille, Radiator, Lower No.1RADIATOR, LOWER NO.1 [04.2009 -] GSE2# |
53112-53130 |
US $63.04 |
||
|
53112E
|
53112E
53113-53030 Grille, Radiator, Lower No.1[08.2012 - 08.2014] GSE20 KOREA SPEC&F SPORT; GSE20 KOREA SPEC&F SPORT&HEAD LAMP CLEANER-WITH; GSE20 KOREA SPEC&F SPORT&HEAD LAMP CLEANER-WITH&CLEARANCE & BACK SONAR-WITH; GSE20 KOREA SPEC&F SPORT&CLEARANCE & BACK SONAR-WITH |
53113-53030 |
from US $71.19 |
||
|
53119E
|
53119E
53119-53021 Protector, Radiator Grille[04.2009 -] GSE2# |
53119-53021 |
from US $7.71 |
||
|
53879H
|
53879H
53879-50020 Retainer, Front Fender Liner[04.2009 -] GSE2# |
53879-50020 |
from US $4.58 |
||
|
75392J
|
75392J
75392-50070 Retainer, Outside MouldingFRONT SPOILER, NO.1 [08.2012 - 07.2015] GSE2# F SPORT,PINK |
75392-50070 |
from US $1.60 |
||
|
75392J
|
75392J
75392-50080 Retainer, Outside MouldingFRONT SPOILER, NO.1 [08.2012 - 07.2015] GSE2# F SPORT,YELLOW |
75392-50080 |
from US $1.71 |
||
|
91674A1028
|
91674A1028
91674-A1028 BOLT FLANGE |
91674-A1028 |
from US $1.14 |
||
|
4774950090
|
4774950090
47749-50090 Clip, Pin Hold |
47749-50090 |
from US $0.51 |
||
|
9015950311
|
9015950311
90159-50311 SCREW |
90159-50311 |
from US $0.70 |
||
|
9015960215
|
9015960215
90159-60215 SCREW |
90159-60215 |
from US $1.10 |
||
|
9015960431
|
9015960431
90159-60431 SCREW |
90159-60431 |
from US $0.72 |
||
|
9015960603
|
9015960603
90159-60603 SCREW WITH-WASHER |
90159-60603 |
from US $0.63 |
||
|
9017906127
|
9017906127
90179-06127 Bracket, Front Licence Plate Mounting |
90179-06127 |
from US $0.68 |
||
|
9017906349
|
9017906349
90179-06349 NUT |
90179-06349 |
from US $1.27 |
||
|
9046707146
|
9046707146
90467-07146 Clip |
90467-07146 |
from US $1.46 |
