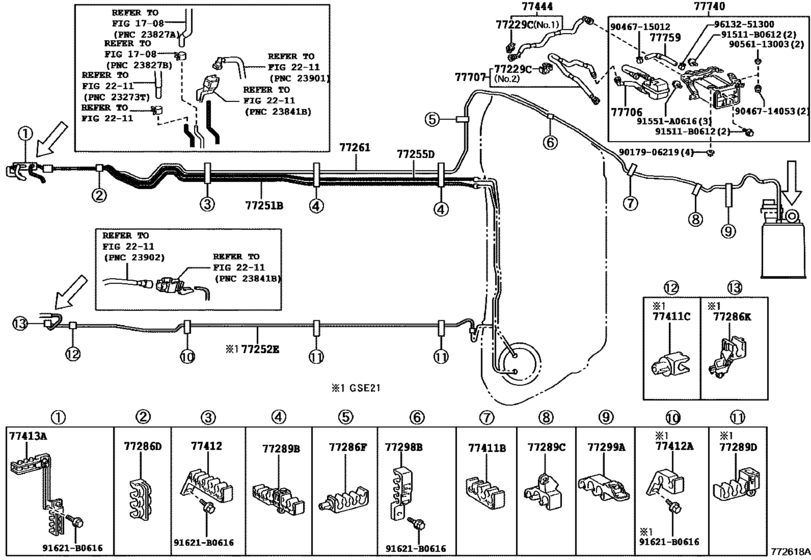

Fuel Tank & Tube ([04.2009 - ] FUEL TUBE (0904- )) Diagram Toyota LEXUS IS
- Year
- 2009 - 2015
- Sales region
- U.S.A.
- Frame
- GSE20
- grade
- 250C
- ENGINE
- 4GRFSE
- TRANSMISSION
- ATM
- Model
- IS250
- From
- 04.2009
- To
- 07.2015
- Gear Shift Type
- 6FC
- Vehicle Model
- IS250C
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
77229C
|
77229C
77229-30050 Clamp, Breather Tube[04.2009 -] GSE2# NO.2 |
77229-30050 |
US $6.41 |
||
|
77229C
|
77229C
77229-30060 Clamp, Breather TubeBREATHER TUBE [04.2009 -] GSE2# NO.1 |
77229-30060 |
US $6.26 |
||
|
77251B
|
77251B
77251-53050 Tube, Fuel Main[04.2009 -] GSE2# |
77251-53050 |
US $44.70 |
||
|
77255D
|
77255D
77255-53010 Tube, Fuel Return[04.2009 -] GSE2# |
77255-53010 |
US $42.95 |
||
|
77261
|
77261
77261-53130
Tube Sub-Assy, Fuel Emission
[04.2009 -] GSE2# |
77261-53130 |
— | ||
|
77286D
|
77286D
77286-30170 Clamp, Fuel Tube, No.2[04.2009 -] GSE2# |
77286-30170 |
US $2.91 |
||
|
77286F
|
77286F
77286-30110 Clamp, Brake Tube, No.5[04.2009 - 07.2015] GSE2# |
77286-30110 |
US $5.23 |
||
|
77289B
|
77289B
77289-30060 Clamp, Fuel Tube, No.4[04.2009 - 07.2015] GSE2# |
77289-30060 |
US $10.57 |
||
|
77289C
|
77289C
77289-30080 Clamp, Fuel Tube, No.3FUEL TUBE W/GROMMET, NO.3 [04.2009 -] GSE2# |
77289-30080 |
US $9.90 |
||
|
77298B
|
77298B
77298-30150 Clamp, Brake Tube, No.8[04.2009 - 07.2015] GSE2# |
77298-30150 |
US $6.05 |
||
|
77299A
|
77299A
77299-53040
Clamp, Fuel Tube, No.5
[04.2009 -] GSE2# |
77299-53040 |
— | ||
|
77411B
|
77411B
77411-48030 Support, Fuel Tube Grommet, No.1[04.2009 -] GSE2# |
77411-48030 |
US $6.63 |
||
|
77412
|
77412
77412-30060 Clamp, Brake Tube, No.9[04.2009 - 07.2015] GSE2# |
77412-30060 |
US $6.05 |
||
|
77413A
|
77413A
77413-30070 Support, Fuel Tube Grommet, No.3[04.2009 - 07.2009] GSE2# |
77413-30070 |
US $24.02 |
||
| replacement | |||||
|
77413A
|
77413A
77413-30071 Support, Fuel Tube Grommet, No.3FUEL TUBE GROMMET, NO.3 [04.2009 - 07.2009] GSE2# |
77413-30071 |
US $16.89 |
||
|
77413A
|
77413A
77413-30071 Support, Fuel Tube Grommet, No.3FUEL TUBE GROMMET, NO.3 [08.2009 -] GSE2# |
77413-30071 |
US $16.89 |
||
|
77444
|
77444
77404-53050
Hose, Fuel Tank Vent
[04.2009 -] GSE2# |
77404-53050 |
— | ||
|
77706
|
77706
77706-30010
Filter Sub-Assy, Charcoal Canister
[04.2009 -] GSE2# |
77706-30010 |
— | ||
|
77707
|
77707
77707-53010
Tube Sub-Assy, Charcoal Canister Outlet
[04.2009 -] GSE2# |
77707-53010 |
— | ||
|
77740
|
77740
77740-30360 Canister Assy, CharcoalCHARCOAL [04.2009 -] GSE2# |
77740-30360 |
US $421.06 |
||
|
77759
|
77759
77759-30010 Hose, Charcoal CanisterCHARCOAL CANISTER [04.2009 -] GSE2# |
77759-30010 |
US $11.50 |
||
|
91511B0612
|
91511B0612
91511-B0612 BOLT FLANGE |
91511-B0612 |
from US $0.99 |
||
|
91551A0616
|
91551A0616
91551-A0616 New Genuine Part |
91551-A0616 |
US $1.08 |
||
|
91621B0616
|
91621B0616
91621-B0616 Bolt |
91621-B0616 |
from US $0.76 |
||
|
9017906219
|
9017906219
90179-06219 Nut |
90179-06219 |
from US $1.01 |
||
|
9046714053
|
9046714053
90467-14053 Clip, No.1(For Floor Under Cover) |
90467-14053 |
from US $1.10 |
||
|
9046715012
|
9046715012
90467-15012 Clip Or Clamp(For Ventilation Hose) |
90467-15012 |
US $3.58 |
||
|
9056113003
|
9056113003
90561-13003 Clip, No.4(For Floor Under Cover) |
90561-13003 |
US $1.25 |
||
|
9613251300
|
9613251300
96132-51300 Clip(For Ventilation Hose No.2) |
96132-51300 |
from US $1.44 |
||
