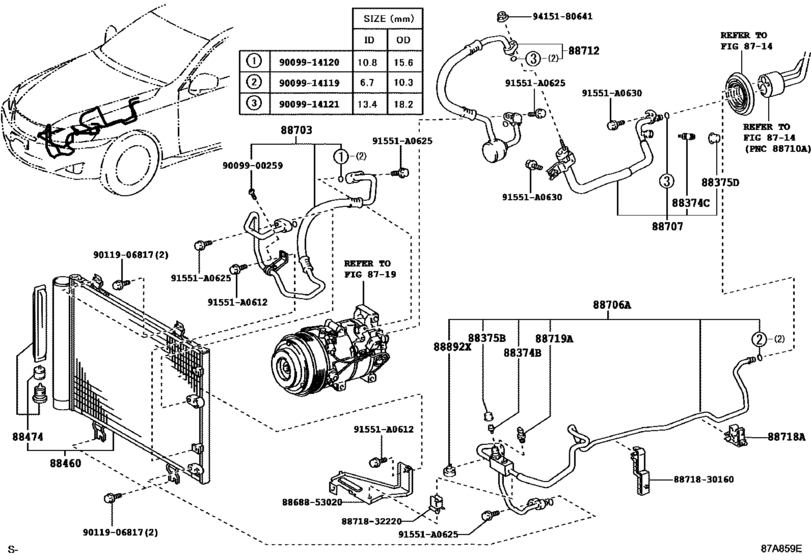

Heating & Air Conditioning - Cooler Piping ([04.2009 - ] (0904- )6FC) Diagram Toyota LEXUS IS
- Year
- 2009 - 2015
- Sales region
- U.S.A.
- Frame
- GSE20
- grade
- 250C
- ENGINE
- 4GRFSE
- TRANSMISSION
- ATM
- Model
- IS250
- From
- 04.2009
- To
- 07.2015
- Gear Shift Type
- 6FC
- Vehicle Model
- IS250C
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88374B
|
88374B
88374-30010 Valve, Service, No.1[04.2009 -] GSE2# |
88374-30010 |
from US $3.08 |
||
|
88374C
|
88374C
88374-30010 Valve, Service, No.1[04.2009 -] GSE2# |
88374-30010 |
from US $3.08 |
||
|
88375B
|
88375B
88375-30280 Cap, Service Valve (For Cooler Pipe)[04.2009 -] GSE2# |
88375-30280 |
from US $0.98 |
||
|
88375D
|
88375D
88375-30290 Cap, Service Valve (For Cooler Pipe)[04.2009 -] GSE2# |
88375-30290 |
from US $0.78 |
||
|
88460
|
88460
88460-53030 Condenser Assy, Cooler[04.2009 -] GSE2# |
88460-53030 |
US $480.48 |
||
|
88474
|
88474
88474-17010 Dryer, Cooler[04.2009 -] GSE2# |
88474-17010 |
from US $60.10 |
||
|
88703
|
88703
88703-53090 Hose Sub-Assy, Discharge[04.2009 - 09.2010] GSE2# |
88703-53090 |
US $139.78 |
||
| replacement | |||||
|
88703
|
88703
88703-53091 Hose Sub-Assy, Discharge[04.2009 - 09.2010] GSE2# |
88703-53091 |
US $170.58 |
||
|
88703
|
88703
88703-53091 Hose Sub-Assy, Discharge[09.2010 - 12.2010] GSE2# |
88703-53091 |
US $170.58 |
||
|
88703
|
88703
88703-53120 Hose Sub-Assy, Discharge[01.2011 -] GSE2# |
88703-53120 |
US $123.76 |
||
|
88706A
|
88706A
88706-53080 Tube Sub-Assy, Liquid, A[04.2009 - 12.2010] GSE2# |
88706-53080 |
US $340.70 |
||
|
88706A
|
88706A
88706-53130 Tube Sub-Assy, Liquid, A[01.2011 -] GSE2# |
88706-53130 |
US $248.98 |
||
|
88707
|
88707
88707-53050 Pipe Sub-Assy, Suction[04.2009 -] GSE2#..6FC |
88707-53050 |
US $133.95 |
||
|
88712
|
88712
88712-53100 Hose, Cooler Refrigerant Suction, No.1[04.2009 - 12.2010] GSE2# |
88712-53100 |
US $148.51 |
||
|
88712
|
88712
88712-53180 Hose, Cooler Refrigerant Suction, No.1[01.2011 -] GSE2# |
88712-53180 |
US $144.14 |
||
|
88718A
|
88718A
88718-30150
Clamp(For Cooler Refrigerant Pipe), No.1
[04.2009 -] GSE2# |
88718-30150 |
— | ||
|
88719A
|
88719A
88719-33020 Sensor, Airconditioner Pressure[05.2010 -] GSE2# |
88719-33020 |
from US $124.05 |
||
|
88719A
|
88719A
88719-40020 Sensor, Airconditioner Pressure[04.2009 - 05.2010] GSE2# |
88719-40020 |
from US $83.72 |
||
|
88892X
|
88892X
88892-50120
Cover, Cooler, No.2
[05.2010 -] GSE2# |
88892-50120 |
— | ||
|
91551A0612
|
91551A0612
91551-A0612 New Genuine Part |
91551-A0612 |
US $1.08 |
||
|
91551A0625
|
91551A0625
91551-A0625 Bolt(For Cylinder Head Cover) |
91551-A0625 |
US $1.08 |
||
|
91551A0630
|
91551A0630
91551-A0630 New Genuine Part |
91551-A0630 |
US $1.08 |
||
|
8868853020
|
8868853020
88688-53020
Bracket, Cooler Diaphragm
|
88688-53020 |
— | ||
|
8871830160
|
8871830160
88718-30160 Pipe, Cooler Refrigerant Suction, No.2 |
88718-30160 |
US $2.62 |
||
|
8871832220
|
8871832220
88718-32220 Clamp(For Cooler Refrigerant Pipe), No.2 |
88718-32220 |
from US $1.43 |
||
|
9009900259
|
9009900259
90099-00259
New Genuine Part
|
90099-00259 |
— | ||
|
9009914119
|
9009914119
90099-14119 Ring, O(For Cooler Refrigerant Liquid Pipe) |
90099-14119 |
from US $1.62 |
||
| replacement | |||||
|
9009914119
|
9009914119
90099-14119-TH O RING |
90099-14119-TH |
US $0.67 |
||
|
9009914120
|
9009914120
90099-14120 O-Ring, Cooler Evaporator No.1(Discharge) |
90099-14120 |
from US $1.79 |
||
|
9009914121
|
9009914121
90099-14121 O-Ring, Cooler Evaporator No.1(Suction) |
90099-14121 |
from US $1.54 |
||
|
9011906817
|
9011906817
90119-06817 BOLT WWASHER |
90119-06817 |
from US $0.84 |
||
|
9415180641
|
9415180641
94151-80641 NUT FLANGE |
94151-80641 |
from US $0.95 |
||
