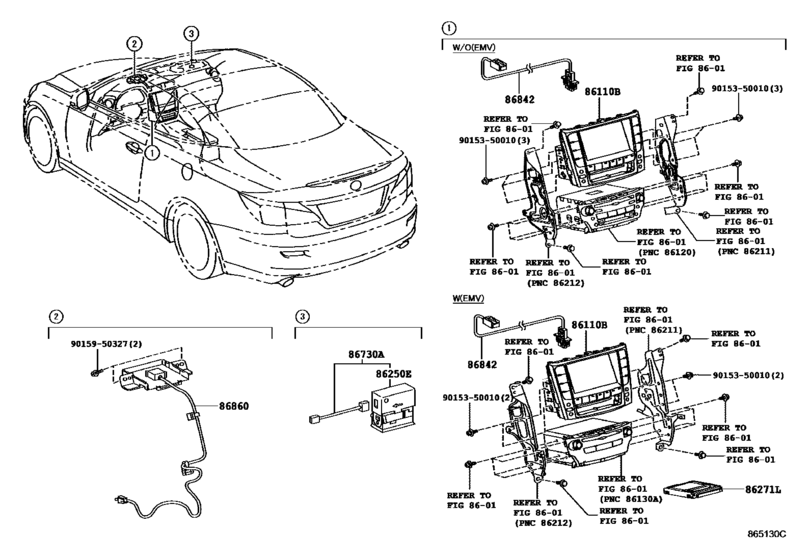

Navigation & Front Monitor Display ([08.2012 - ] (1208- )) Diagram Toyota LEXUS IS
- Year
- 2009 - 2015
- Sales region
- U.S.A.
- Frame
- GSE20
- grade
- 250C
- ENGINE
- 4GRFSE
- TRANSMISSION
- ATM
- Model
- IS250
- From
- 04.2009
- To
- 07.2015
- Gear Shift Type
- 6FC
- Vehicle Model
- IS250C
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
86110B
|
86110B
86110-53330
Multi-Display Assy
[08.2012 - 07.2015] GSE20 DENSO,AUDIO-AM/FM DVD 12SPEAKER; GSE20 DENSO,AUDIO-AM/FM DVD 8SPEAKER |
86110-53330 |
— | ||
|
86110B
|
86110B
86110-53370
Multi-Display Assy
[08.2012 - 08.2014] GSE20 DENSO,KOREA SPEC&AUDIO-AM/FM DVD 12SPEAKER; GSE20 DENSO,KOREA SPEC&AUDIO-AM/FM DVD 8SPEAKER |
86110-53370 |
— | ||
|
86250E
|
86250E
86250-52030 Microphone Assy, Amplifier[04.2009 -] GSE2#; GSE2# USA POSSESIONS SPEC; GSE20..6FC KOREA SPEC; GSE21 MEXICO SPEC |
86250-52030 |
US $61.44 |
||
|
86271L
|
86271L
86271-30681
Hard Disc
[08.2012 - 07.2013] GSE2# CANADA SPEC&AUDIO-AM/FM DVD 12SPEAKER; GSE2# CANADA SPEC&AUDIO-AM/FM DVD 8SPEAKER; GSE2# USA POSSESIONS SPEC&AUDIO-AM/FM DVD 12SPEAKER; GSE2# USA POSSESIONS SPEC&AUDIO-AM/FM DVD 8SPEAKER; GSE2# AUDIO-AM/FM DVD 12SPEAKER; GSE2# AU |
86271-30681 |
— | ||
| replacement | |||||
|
86271L
|
86271L
86271-30683
Hard Disc
[08.2012 - 07.2013] GSE2# CANADA SPEC&AUDIO-AM/FM DVD 12SPEAKER; GSE2# CANADA SPEC&AUDIO-AM/FM DVD 8SPEAKER; GSE2# USA POSSESIONS SPEC&AUDIO-AM/FM DVD 12SPEAKER; GSE2# USA POSSESIONS SPEC&AUDIO-AM/FM DVD 8SPEAKER; GSE2# AUDIO-AM/FM DVD 12SPEAKER; GSE2# AU |
86271-30683 |
— | ||
|
86271L
|
86271L
86271-30682
Hard Disc
[08.2013 - 06.2014] GSE2# CANADA SPEC&AUDIO-AM/FM DVD 12SPEAKER; GSE2# CANADA SPEC&AUDIO-AM/FM DVD 8SPEAKER; GSE2# USA POSSESIONS SPEC&AUDIO-AM/FM DVD 12SPEAKER; GSE2# USA POSSESIONS SPEC&AUDIO-AM/FM DVD 8SPEAKER; GSE2# AUDIO-AM/FM DVD 12SPEAKER; GSE2# AU |
86271-30682 |
— | ||
| replacement | |||||
|
86271L
|
86271L
86271-30683
Hard Disc
[08.2013 - 06.2014] GSE2# CANADA SPEC&AUDIO-AM/FM DVD 12SPEAKER; GSE2# CANADA SPEC&AUDIO-AM/FM DVD 8SPEAKER; GSE2# USA POSSESIONS SPEC&AUDIO-AM/FM DVD 12SPEAKER; GSE2# USA POSSESIONS SPEC&AUDIO-AM/FM DVD 8SPEAKER; GSE2# AUDIO-AM/FM DVD 12SPEAKER; GSE2# AU |
86271-30683 |
— | ||
|
86271L
|
86271L
86271-30683
Hard Disc
[07.2014 - 07.2015] GSE2# CANADA SPEC&AUDIO-AM/FM DVD 12SPEAKER; GSE2# CANADA SPEC&AUDIO-AM/FM DVD 8SPEAKER; GSE2# USA POSSESIONS SPEC&AUDIO-AM/FM DVD 12SPEAKER; GSE2# USA POSSESIONS SPEC&AUDIO-AM/FM DVD 8SPEAKER; GSE2# AUDIO-AM/FM DVD 12SPEAKER; GSE2# AU |
86271-30683 |
— | ||
|
86271L
|
86271L
86271-30720
Hard Disc
[08.2012 - 08.2014] GSE20 KOREA SPEC&F SPORT&AUDIO-AM/FM DVD 12SPEAKER; GSE20 KOREA SPEC&F SPORT&AUDIO-AM/FM DVD 8SPEAKER; GSE20 KOREA SPEC&LUXURY PACKAGE&AUDIO-AM/FM DVD 12SPEAKER; GSE20 KOREA SPEC&LUXURY PACKAGE&AUDIO-AM/FM DVD 8SPEAKER |
86271-30720 |
— | ||
|
86271L
|
86271L
86271-53050
Hard Disc
[08.2011 - 11.2011] GSE2# AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI; GSE2# AUDIO-AM/FM CD-CHANGER 8SUPERKAER NAVI |
86271-53050 |
— | ||
|
86271L
|
86271L
86271-53070
Hard Disc
[04.2009 - 08.2009] GSE2# AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI; GSE2# AUDIO-AM/FM CD-CHANGER 8SUPERKAER NAVI |
86271-53070 |
— | ||
|
86271L
|
86271L
86271-60141
Hard Disc
[08.2009 - 08.2010] GSE2# AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI; GSE2# AUDIO-AM/FM CD-CHANGER 8SUPERKAER NAVI |
86271-60141 |
— | ||
|
86271L
|
86271L
86271-60142
Hard Disc
[08.2010 - 07.2011] GSE2# AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI; GSE2# AUDIO-AM/FM CD-CHANGER 8SUPERKAER NAVI |
86271-60142 |
— | ||
| replacement | |||||
|
86271L
|
86271L
86271-60143
Hard Disc
[08.2010 - 07.2011] GSE2# AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI; GSE2# AUDIO-AM/FM CD-CHANGER 8SUPERKAER NAVI |
86271-60143 |
— | ||
|
86271L
|
86271L
86271-60143
Hard Disc
[11.2011 - 07.2012] GSE2# AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI; GSE2# AUDIO-AM/FM CD-CHANGER 8SUPERKAER NAVI |
86271-60143 |
— | ||
|
86271L
|
86271L
86271-60144
Hard Disc
[07.2012 - 08.2012] GSE2# AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI; GSE2# AUDIO-AM/FM CD-CHANGER 8SUPERKAER NAVI |
86271-60144 |
— | ||
| replacement | |||||
|
86271L
|
86271L
86271-60145
Hard Disc
[07.2012 - 08.2012] GSE2# AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI; GSE2# AUDIO-AM/FM CD-CHANGER 8SUPERKAER NAVI |
86271-60145 |
— | ||
|
86730A
|
86730A
86730-48040
Microphone Assy, Telephone
[04.2009 - 07.2015] GSE2#; GSE2# USA POSSESIONS SPEC; GSE20..6FC KOREA SPEC; GSE21 MEXICO SPEC |
86730-48040 |
— | ||
|
86842
|
86842
86842-53070
Wire, Navigation, No.1
[04.2009 - 08.2012] GSE2# AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI; GSE2# AUDIO-AM/FM CD-CHANGER 8SUPERKAER NAVI |
86842-53070 |
— | ||
|
86842
|
86842
86842-53080
Wire, Navigation, No.1
[04.2009 - 08.2012] GSE20..6FC KOREA SPEC&AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI,NO.1; GSE20..6FC KOREA SPEC&AUDIO-AM/FM CD-CHANGER 8SUPERKAER NAVI,NO.1 |
86842-53080 |
— | ||
|
86842
|
86842
86842-53090
Wire, Navigation, No.1
[04.2009 - 08.2012] GSE20..6FC KOREA SPEC&AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI,NO.2; GSE20..6FC KOREA SPEC&AUDIO-AM/FM CD-CHANGER 8SUPERKAER NAVI,NO.2 |
86842-53090 |
— | ||
|
86842
|
86842
86842-53200 Wire, Navigation, No.1[08.2012 - 08.2014] GSE20 KOREA SPEC&AUDIO-AM/FM DVD 12SPEAKER; GSE20 KOREA SPEC&AUDIO-AM/FM DVD 8SPEAKER |
86842-53200 |
US $48.78 |
||
|
86860
|
86860
86860-53050 Antenna Assy, NavigationNAVIGATION [04.2009 - 08.2012] GSE2# AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI; GSE2# AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI&MAYDAY SYSTEM-USA; GSE2# AUDIO-AM/FM CD-CHANGER 8SUPERKAER NAVI; GSE2# AUDIO-AM/FM CD-CHANGER 8SUPERKAER NAVI&MAYDAY SYSTEM-USA |
86860-53050 |
US $151.42 |
||
|
86860
|
86860
86860-53060
Antenna Assy, Navigation
[04.2009 -] GSE2# MAYDAY SYSTEM-USA |
86860-53060 |
— | ||
|
86860
|
86860
86860-53100
Antenna Assy, Navigation
[08.2012 -] GSE2# AUDIO-AM/FM DVD 12SPEAKER; GSE2# AUDIO-AM/FM DVD 12SPEAKER&MAYDAY SYSTEM-USA; GSE2# AUDIO-AM/FM DVD 8SPEAKER; GSE2# AUDIO-AM/FM DVD 8SPEAKER&MAYDAY SYSTEM-USA |
86860-53100 |
— | ||
|
9015350010
|
9015350010
90153-50010 BOLT |
90153-50010 |
from US $0.68 |
||
|
9015950327
|
9015950327
90159-50327 SCREW WWASHER |
90159-50327 |
from US $0.70 |
||
