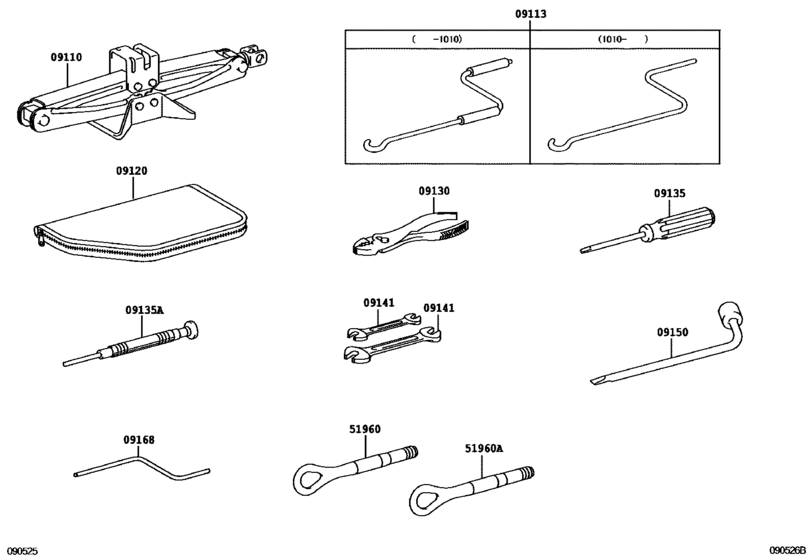

Standard Tool ([04.2009 - ] (0904- )) Diagram Toyota LEXUS IS
- Year
- 2009 - 2015
- Sales region
- U.S.A.
- Frame
- GSE20
- grade
- 250C
- ENGINE
- 4GRFSE
- TRANSMISSION
- ATM
- Model
- IS250
- From
- 04.2009
- To
- 07.2015
- Gear Shift Type
- 6FC
- Vehicle Model
- IS250C
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
09110
|
09110
09111-33030
Jack Assy
[10.2010 -] GSE2# |
09111-33030 |
— | ||
| replacement | |||||
|
09110
|
09110
09111-76010 Jack Assy[10.2010 -] GSE2# |
09111-76010 |
US $85.90 |
||
|
09110
|
09110
09111-50051 Jack Assy[04.2009 - 09.2010] GSE2# |
09111-50051 |
US $77.88 |
||
| replacement | |||||
|
09110
|
09110
09111-76011 JACK ASSY[04.2009 - 09.2010] GSE2# |
09111-76011 |
US $96.76 |
||
|
09113
|
09113
09113-13040 Handle, Jack[10.2010 -] GSE2# |
09113-13040 |
US $9.68 |
||
|
09113
|
09113
09113-22020 Handle, Jack[04.2009 - 10.2010] GSE2# |
09113-22020 |
US $11.36 |
||
|
09120
|
09120
09120-53030 Bag, ToolTOOL [04.2009 -] GSE2# |
09120-53030 |
US $77.17 |
||
|
09120
|
09120
09120-53040
Bag, Tool
[04.2009 - 08.2012] GSE2# AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI; GSE2# AUDIO-AM/FM CD-CHANGER 8SUPERKAER NAVI |
09120-53040 |
— | ||
|
09130
|
09130
09130-50030 Pliers[04.2009 - 06.2009] GSE2# |
09130-50030 |
US $8.12 |
||
|
09130
|
09130
09130-50040 Pliers[06.2009 -] GSE2# |
09130-50040 |
US $10.57 |
||
|
09135
|
09135
09135-50040 Driver, Screw[04.2009 - 06.2009] GSE2# |
09135-50040 |
US $10.57 |
||
|
09135
|
09135
99915-10700 Driver, ScrewNo Toyota stamp [06.2009 -] GSE2# |
99915-10700 |
from US $8.24 |
||
| replacement | |||||
|
09135
|
09135
90089-99009 Driver, Screw (ATC) (Thailand)Screw Driver (ATC) [06.2009 -] GSE2# |
90089-99009 |
from US $2.20 |
||
|
09135A
|
09135A
09135-53010
Bit, Screw Driver
[04.2009 - 08.2012] GSE20..6FC KOREA SPEC&AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI&EMV & NAVIGATION SYSTEM-DVD NAVI GATION; GSE20..6FC KOREA SPEC&AUDIO-AM/FM CD-CHANGER 8SUPERKAER NAVI&EMV & NAVIGATION SYSTEM-DVD NAVI GATION; GSE2# AUDIO-AM/FM DVD-CHANGER 1 |
09135-53010 |
— | ||
|
09141
|
09141
09141-50050 Spanner[04.2009 - 06.2009] GSE2# 8 X 10 |
09141-50050 |
US $6.27 |
||
|
09141
|
09141
09141-50060 Spanner[04.2009 - 06.2009] GSE2# 12 X 14 |
09141-50060 |
US $7.98 |
||
|
09141
|
09141
09141-60010 Spanner[06.2009 -] GSE2# 8 X 10 |
09141-60010 |
from US $4.54 |
||
|
09141
|
09141
09141-60020 Spanner[06.2009 -] GSE2# 12 X 14 |
09141-60020 |
from US $7.69 |
||
|
09150
|
09150
09150-50010
Wrench, Hub Nut Box
[04.2009 - 05.2009] GSE2# |
09150-50010 |
— | ||
| replacement | |||||
|
09150
|
09150
09150-76020 Wrench, Hub Nut Box[04.2009 - 05.2009] GSE2# |
09150-76020 |
US $9.26 |
||
|
09150
|
09150
09150-53010 Wrench, Hub Nut BoxHUB NUT BOX [06.2009 - 05.2012] GSE2# |
09150-53010 |
US $10.34 |
||
| replacement | |||||
|
09150
|
09150
09150-76020 Wrench, Hub Nut Box[06.2009 - 05.2012] GSE2# |
09150-76020 |
US $9.26 |
||
|
09150
|
09150
09150-76020 Wrench, Hub Nut Box[05.2012 - 07.2015] GSE2# |
09150-76020 |
US $9.26 |
||
|
09168
|
09168
09168-53010 Wrench, Roof PanelROOF PANEL [04.2009 -] GSE2# |
09168-53010 |
US $11.36 |
||
|
51960
|
51960
51961-53010 Hook Assy, Front[04.2009 -] GSE2# |
51961-53010 |
from US $36.12 |
||
|
51960A
|
51960A
51961-53010 Hook Assy, Front[04.2009 - 07.2015] GSE2# |
51961-53010 |
from US $36.12 |
||
