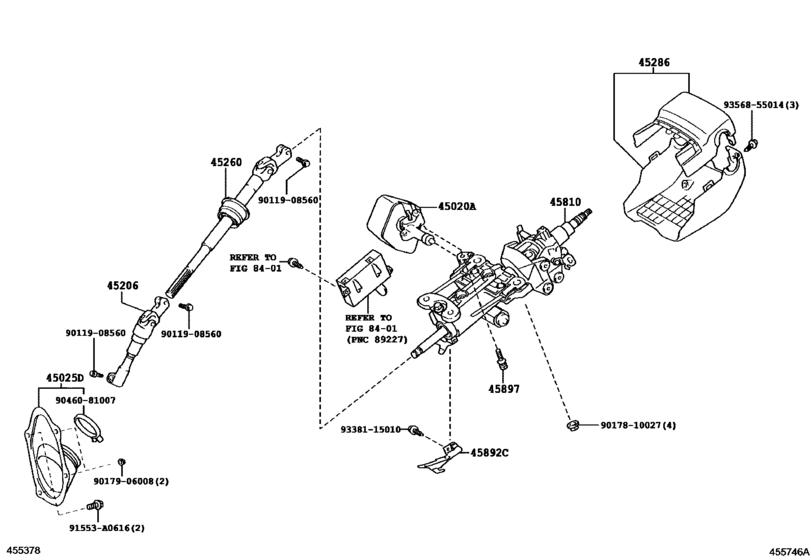

Steering Column & Shaft ([11.2010 - ] (1011- )) Diagram Toyota LEXUS IS
- Year
- 2009 - 2015
- Sales region
- U.S.A.
- Frame
- GSE20
- grade
- 250C
- ENGINE
- 4GRFSE
- TRANSMISSION
- ATM
- Model
- IS250
- From
- 04.2009
- To
- 07.2015
- Gear Shift Type
- 6FC
- Vehicle Model
- IS250C
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
45020A
|
45020A
45020-30A60 Actuator Assy, Steering Lock[04.2009 - 07.2015] GSE2# |
45020-30A60 |
from US $206.17 |
||
|
45025D
|
45025D
45025-30390 Cover Sub-Assy, Steering Column Hole, No.1STEERING COLUMN HOLE, NO.1 [04.2009 -] GSE2# |
45025-30390 |
US $24.46 |
||
|
45206
|
45206
45206-30111 Yoke Sub-Assy, Steering Sliding W/shaftSTEERING SLIDING W/SHAFT [04.2009 - 12.2011] GSE2# |
45206-30111 |
US $139.78 |
||
|
45206
|
45206
45206-30112
Yoke Sub-Assy, Steering Sliding W/shaft
[12.2011 -] GSE2# |
45206-30112 |
— | ||
|
45260
|
45260
45260-30200
Shaft Assy, Steering Intermediate, No.2
[04.2009 - 12.2012] GSE2# |
45260-30200 |
— | ||
| replacement | |||||
|
45260
|
45260
45260-30201 Shaft Assy, Steering Intermediate, No.2[04.2009 - 12.2012] GSE2# |
45260-30201 |
US $282.78 |
||
|
45260
|
45260
45260-30201 Shaft Assy, Steering Intermediate, No.2[01.2013 -] GSE2# |
45260-30201 |
US $282.78 |
||
|
45286
|
45286
45286-53912-C0
Cover, Steering Column
[04.2009 - 07.2015] GSE2# BLACK,TRIM0#,1#,2#,3#,4# |
45286-53912-C0 |
— | ||
|
45810
|
45810
45810-53020 Gear Assy, Tilt Steering, W/motor[11.2010 -] GSE2# |
45810-53020 |
US $776.05 |
||
|
45892C
|
45892C
45892-30020
Bracket, Return Spring
[11.2010 -] GSE2# |
45892-30020 |
— | ||
|
45897
|
45897
45897-12020 Bolt, Steering Lock Set[04.2009 -] GSE2# |
45897-12020 |
from US $2.62 |
||
|
91553A0616
|
91553A0616
91553-A0616 New Genuine Part |
91553-A0616 |
US $1.08 |
||
|
9011908560
|
9011908560
90119-08560 Bolt, Hexagon |
90119-08560 |
from US $1.43 |
||
| replacement | |||||
|
9011908560
|
9011908560
90080-11555 New Genuine Part |
90080-11555 |
US $4.23 |
||
|
9017810027
|
9017810027
90178-10027 New Genuine Part |
90178-10027 |
US $1.79 |
||
|
9017906008
|
9017906008
90179-06008 Nut, Rear Wiper Link Pivot, No.1 |
90179-06008 |
US $0.73 |
||
| replacement | |||||
|
9017906008
|
9017906008
90179-06159 Nut, Rear Wiper Link Pivot, No.1 |
90179-06159 |
from US $0.57 |
||
|
9046081007
|
9046081007
90460-81007 CLAMP HOSE |
90460-81007 |
US $2.91 |
||
|
9338115010
|
9338115010
93381-15010 SCREW |
93381-15010 |
US $1.08 |
||
|
9356855014
|
9356855014
93568-55014 Screw |
93568-55014 |
from US $0.48 |
||
