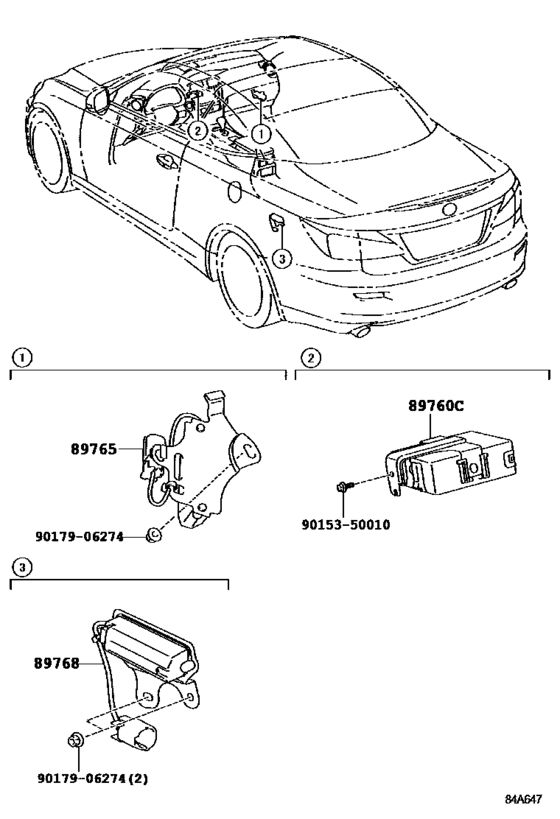

Tire Pressure Warning System ([04.2009 - ] (0904- )) Diagram Toyota LEXUS IS
- Year
- 2009 - 2015
- Sales region
- U.S.A.
- Frame
- GSE20
- grade
- 250C
- ENGINE
- 4GRFSE
- TRANSMISSION
- ATM
- Model
- IS250
- From
- 04.2009
- To
- 07.2015
- Gear Shift Type
- 6FC
- Vehicle Model
- IS250C
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
89760C
|
89760C
89760-53020
Receiver Assy, Tire Pressure Monitor
[04.2009 -] GSE2#; GSE20..6FC KOREA SPEC |
89760-53020 |
— | ||
|
89765
|
89765
89765-30010 Antenna, Tire Pressure, Front Rh[04.2009 - 09.2014] GSE2#; GSE20..6FC KOREA SPEC |
89765-30010 |
US $78.62 |
||
| replacement | |||||
|
89765
|
89765
89765-30011 Antenna, Tire Pressure, Front Rh[04.2009 - 09.2014] GSE2#; GSE20..6FC KOREA SPEC |
89765-30011 |
US $78.62 |
||
|
89765
|
89765
89765-30011 Antenna, Tire Pressure, Front Rh[10.2014 -] GSE2#; GSE20 KOREA SPEC |
89765-30011 |
US $78.62 |
||
|
89768
|
89768
89768-53010 Antenna, Tire Pressure, Rear LhTIRE PRESSURE, REAR LH [04.2009 - 09.2014] GSE2#; GSE20..6FC KOREA SPEC |
89768-53010 |
US $78.62 |
||
| replacement | |||||
|
89768
|
89768
89768-53011 Antenna, Tire Pressure, Rear Lh[04.2009 - 09.2014] GSE2#; GSE20..6FC KOREA SPEC |
89768-53011 |
US $78.62 |
||
|
89768
|
89768
89768-53011 Antenna, Tire Pressure, Rear Lh[10.2014 -] GSE2#; GSE20 KOREA SPEC |
89768-53011 |
US $78.62 |
||
|
9015350010
|
9015350010
90153-50010 BOLT |
90153-50010 |
from US $0.68 |
||
|
9017906274
|
9017906274
90179-06274 Nut |
90179-06274 |
from US $0.68 |
||
