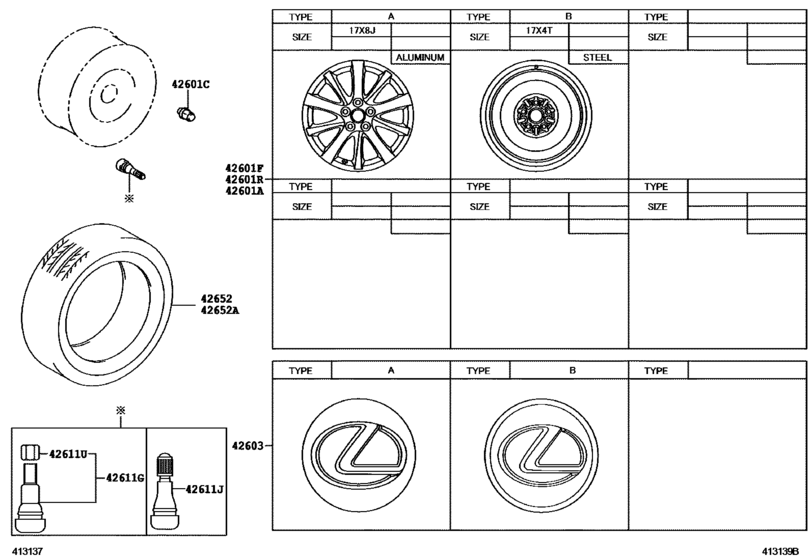

Disc Wheel & Wheel Cap ([04.2009 - ] (0904- )) Diagram Toyota LEXUS IS
- Year
- 2010 - 2015
- Sales region
- General
- Frame
- GSE20
- grade
- 250C
- ENGINE
- 4GRFSE
- TRANSMISSION
- ATM
- DESTINATION
- GCC
- Model
- IS250
- From
- 08.2010
- To
- 07.2015
- Gear Shift Type
- 6FC
- Vehicle Model
- IS250C
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
42601A
|
42601A
42611-53320 Wheel, Disc (For Spare)DISC (FOR SPARE) [08.2009 -] GSE2# 17X4T,TYPE B:REFER ILLUST. |
42611-53320 |
US $142.69 |
||
|
42601C
|
42601C
90942-01033 Nut, Hub (For Axle)[04.2009 - 07.2015] GSE2# |
90942-01033 |
from US $2.22 |
||
|
42601F
|
42601F
4261A-53090 Wheel, Disc (For Front)DISC (FOR FRONT) [04.2009 - 07.2015] GSE2# 17X8J,TYPE A:REFER ILLUST. |
4261A-53090 |
US $662.48 |
||
|
42601F
|
42601F
4261A-53100
Wheel, Disc (For Front)
[08.2010 - 07.2015] GSE20 17X8J,CHINA SPEC,TYPE A:REFER ILLUST. |
4261A-53100 |
— | ||
|
42601R
|
42601R
4261A-53090 Wheel, Disc (For Front)DISC (FOR FRONT) [04.2009 - 07.2015] GSE2# 17X8J,TYPE A:REFER ILLUST. |
4261A-53090 |
US $662.48 |
||
|
42601R
|
42601R
4261A-53100
Wheel, Disc (For Front)
[08.2010 - 07.2015] GSE20 17X8J,CHINA SPEC,TYPE A:REFER ILLUST. |
4261A-53100 |
— | ||
|
42603
|
42603
42603-30550
Ornament Sub-Assy, Wheel Hub
[08.2012 -] GSE2# *CHR,TYPE B:REFER ILLUST. |
42603-30550 |
— | ||
| replacement | |||||
|
42603
|
42603
42603-30551 ORNAMENT SUBASSY[08.2012 -] GSE2# *CHR,TYPE B:REFER ILLUST. |
42603-30551 |
from US $20.60 |
||
|
42603
|
42603
42603-50320 Ornament Sub-Assy, Wheel Hub[04.2009 - 08.2012] GSE2# *ALU,TYPE A:REFER ILLUST. |
42603-50320 |
US $29.29 |
||
|
42611G
|
42611G
90942-05028 Valve (For Tubeless Tire)[04.2009 -] GSE2# |
90942-05028 |
from US $6.81 |
||
|
42611J
|
42611J
90942-05009 Valve (For Tubeless Tire)[04.2009 -] GSE2# |
90942-05009 |
from US $6.99 |
||
| replacement | |||||
|
42611J
|
42611J
90080-94031 Valve (For Tubeless Tire)[04.2009 -] GSE2# |
90080-94031 |
US $1.46 |
||
|
42611U
|
42611U
90942-05029 Cap, Tire Valve[04.2009 -] GSE2# |
90942-05029 |
from US $2.15 |
||
|
42652
|
42652
42652-53620
Tire
[08.2010 - 07.2015] GSE20 225/45R17 *B/S |
42652-53620 |
— | ||
|
42652
|
42652
42652-53630
Tire
[08.2010 - 07.2015] GSE20 245/45R17 *B/S |
42652-53630 |
— | ||
|
42652A
|
42652A
4265A-53010
Tire (For Spare)
[04.2009 - 08.2014] GSE2# T125/70D17 *Y/H |
4265A-53010 |
— | ||
| replacement | |||||
|
42652A
|
42652A
4265A-53011
Tire (For Spare)
[04.2009 - 08.2014] GSE2# T125/70D17 *Y/H |
4265A-53011 |
— | ||
|
42652A
|
42652A
4265A-53011
Tire (For Spare)
[09.2014 -] GSE2# T125/70D17 *Y/H |
4265A-53011 |
— | ||
