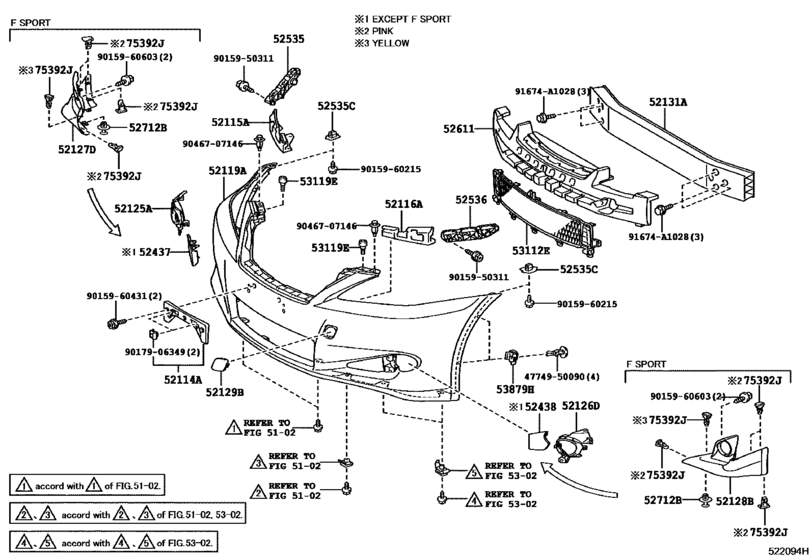

Front Bumper & Bumper Stay ([04.2009 - ] (0904- )) Diagram Toyota LEXUS IS
- Year
- 2010 - 2015
- Sales region
- General
- Frame
- GSE20
- grade
- 250C
- ENGINE
- 4GRFSE
- TRANSMISSION
- ATM
- DESTINATION
- GCC
- Model
- IS250
- From
- 08.2010
- To
- 07.2015
- Gear Shift Type
- 6FC
- Vehicle Model
- IS250C
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
52114A
|
52114A
52114-53170
Bracket, Front Bumper Extention Mounting
[04.2009 -] GSE20;GSE22..GEN; GSE22..GCC PHILIPPINE SPEC |
52114-53170 |
— | ||
|
52115A
|
52115A
52115-53080 Support, Front Bumper Side, Rh[08.2010 - 07.2015] GSE2# |
52115-53080 |
US $55.33 |
||
|
52116A
|
52116A
52116-53080 Support, Front Bumper Side, Lh[08.2010 - 07.2015] GSE2# |
52116-53080 |
US $72.60 |
||
|
52119A
|
52119A
52119-AA909
Cover, Front Bumper
[08.2010 - 07.2015] GSE20;GSE22..GEN; GSE22..GCC PHILIPPINE SPEC |
52119-AA909 |
— | ||
|
52125A
|
52125A
52125-53010 Bracket, Fog Lamp Mounting, RhFOG LAMP MOUNTING, RH [04.2009 -] GSE2# |
52125-53010 |
US $18.93 |
||
|
52126D
|
52126D
52126-53010 Bracket, Fog Lamp Mounting, LhFOG LAMP MOUNTING, LH [04.2009 -] GSE2# |
52126-53010 |
US $18.93 |
||
|
52129B
|
52129B
52129-53906
Cover, Front Bumper, Lower
[04.2009 - 07.2015] GSE2# |
52129-53906 |
— | ||
|
52131A
|
52131A
52131-53040 Reinforcement, Front Bumper[04.2009 - 07.2015] GSE20;GSE22..GEN; GSE22..GCC PHILIPPINE SPEC |
52131-53040 |
from US $276.98 |
||
|
52437
|
52437
52437-53030 Cover, Front Bumper Guard, RhFRONT BUMPER GUARD, RH [04.2009 -] GSE2# |
52437-53030 |
US $11.07 |
||
|
52438
|
52438
52438-53030 Cover, Front Bumper Guard, LhFRONT BUMPER GUARD, LH [04.2009 -] GSE2# |
52438-53030 |
US $11.07 |
||
|
52535
|
52535
52535-53011 Retainer, Front Bumper Side, Rh[04.2009 -] GSE2# |
52535-53011 |
from US $32.83 |
||
|
52535C
|
52535C
52535-50060 Retainer, Front Bumper Side[04.2009 -] GSE2# |
52535-50060 |
from US $3.55 |
||
|
52536
|
52536
52536-53011 Retainer, Front Bumper Side, Lh[04.2009 -] GSE2# |
52536-53011 |
from US $33.57 |
||
|
52611
|
52611
52611-53110 Absorber, Front Bumper EnergyFRONT BUMPER ENERGY [04.2009 -] GSE20;GSE22..GEN; GSE22..GCC PHILIPPINE SPEC |
52611-53110 |
US $137.99 |
||
|
53112E
|
53112E
53112-53130 Grille, Radiator, Lower No.1RADIATOR, LOWER NO.1 [04.2009 -] GSE2# |
53112-53130 |
US $63.04 |
||
|
53119E
|
53119E
53119-53021 Protector, Radiator Grille[04.2009 -] GSE2# |
53119-53021 |
from US $7.71 |
||
|
53879H
|
53879H
53879-50020 Retainer, Front Fender Liner[04.2009 -] GSE2# |
53879-50020 |
from US $4.58 |
||
|
91674A1028
|
91674A1028
91674-A1028 BOLT FLANGE |
91674-A1028 |
from US $1.14 |
||
|
4774950090
|
4774950090
47749-50090 Clip, Pin Hold |
47749-50090 |
from US $0.51 |
||
|
9015950311
|
9015950311
90159-50311 SCREW |
90159-50311 |
from US $0.70 |
||
|
9015960215
|
9015960215
90159-60215 SCREW |
90159-60215 |
from US $1.10 |
||
|
9015960431
|
9015960431
90159-60431 SCREW |
90159-60431 |
from US $0.72 |
||
|
9015960603
|
9015960603
90159-60603 SCREW WITH-WASHER |
90159-60603 |
from US $0.63 |
||
|
9017906349
|
9017906349
90179-06349 NUT |
90179-06349 |
from US $1.27 |
||
|
9046707146
|
9046707146
90467-07146 Clip |
90467-07146 |
from US $1.46 |
