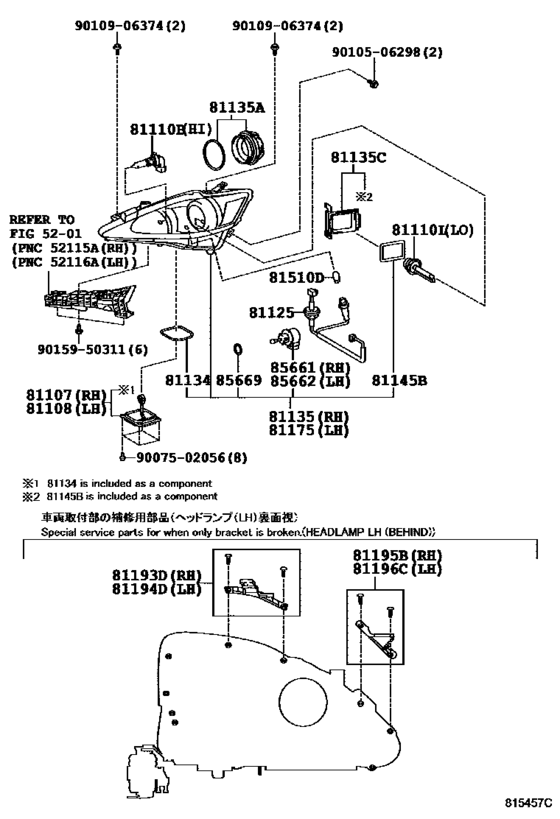

Headlamp ([08.2010 - ] (1008- )) Diagram Toyota LEXUS IS
- Year
- 2010 - 2015
- Sales region
- General
- Frame
- GSE20
- grade
- 250C
- ENGINE
- 4GRFSE
- TRANSMISSION
- ATM
- DESTINATION
- GCC
- Model
- IS250
- From
- 08.2010
- To
- 07.2015
- Gear Shift Type
- 6FC
- Vehicle Model
- IS250C
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81107
|
81107
81107-53501 Computer Sub-Assy, Headlamp Light Control, Rh[08.2010 -] GSE2# |
81107-53501 |
from US $342.08 |
||
|
81108
|
81108
81107-53501 Computer Sub-Assy, Headlamp Light Control, Rh[08.2010 -] GSE2# |
81107-53501 |
from US $342.08 |
||
|
81110B
|
81110B
90981-13046 Bulb(For Headlamp, No.1) (12V, 65W)[04.2009 -] GSE2# 12V65W(SAE),60W(ECE) |
90981-13046 |
from US $15.88 |
||
|
81110L
|
81110L
90981-20024 Bulb, Discharge Headlamp[04.2009 -] GSE2# 42V 35W |
90981-20024 |
from US $164.74 |
||
|
81125
|
81125
81125-53570 Cord, Headlamp[08.2010 -] GSE20 |
81125-53570 |
US $46.66 |
||
|
81134
|
81134
90075-68007 Gasket, Headlamp[04.2009 -] GSE2# |
90075-68007 |
from US $7.13 |
||
|
81135
|
81135
81145-53610
Unit Assy, Headlamp, Rh
[08.2010 - 08.2011] GSE20 |
81145-53610 |
— | ||
|
81135
|
81135
81145-53611
Unit Assy, Headlamp, Rh
[08.2011 - 09.2011] GSE20 |
81145-53611 |
— | ||
|
81135
|
81135
81145-53612
Unit Assy, Headlamp, Rh
[09.2011 - 09.2011] GSE20 |
81145-53612 |
— | ||
|
81135
|
81135
81145-53613
Unit Assy, Headlamp, Rh
[09.2011 - 04.2013] GSE20 |
81145-53613 |
— | ||
|
81135
|
81135
81145-53614
Unit Assy, Headlamp, Rh
[04.2013 -] GSE20 |
81145-53614 |
— | ||
|
81135A
|
81135A
90075-66004 Cap, Locking[08.2010 -] GSE2# |
90075-66004 |
from US $5.24 |
||
|
81135C
|
81135C
81135-53240 Cover, Headlamp Back, No.1[04.2009 -] GSE2# |
81135-53240 |
from US $21.76 |
||
|
81145B
|
81145B
81132-53240 Gasket, Headlamp Cover, No.1[04.2009 -] GSE2# |
81132-53240 |
US $20.83 |
||
|
81175
|
81175
81185-53610
Unit Assy, Headlamp, Lh
[08.2010 - 08.2011] GSE20 |
81185-53610 |
— | ||
|
81175
|
81175
81185-53611
Unit Assy, Headlamp, Lh
[08.2011 - 09.2011] GSE20 |
81185-53611 |
— | ||
|
81175
|
81175
81185-53612
Unit Assy, Headlamp, Lh
[09.2011 - 09.2011] GSE20 |
81185-53612 |
— | ||
|
81175
|
81175
81185-53613
Unit Assy, Headlamp, Lh
[09.2011 - 04.2013] GSE20 |
81185-53613 |
— | ||
|
81175
|
81175
81185-53614
Unit Assy, Headlamp, Lh
[04.2013 -] GSE20 |
81185-53614 |
— | ||
|
81193D
|
81193D
81193-53020 Retainer, Rh Headlamp Protector, Upper Lh[04.2009 - 07.2015] GSE2# |
81193-53020 |
from US $16.26 |
||
|
81194D
|
81194D
81194-53010 Retainer, Lh Headlamp Protector, Upper Lh[04.2009 -] GSE2# |
81194-53010 |
from US $24.62 |
||
|
81195B
|
81195B
81195-53010 Retainer, Rh Headlamp Protector, Lower Rh[04.2009 -] GSE2# |
81195-53010 |
from US $7.78 |
||
|
81196C
|
81196C
81196-53020 Retainer, Lh Headlamp Protector, Lower Lh[04.2009 -] GSE2# |
81196-53020 |
from US $7.78 |
||
|
81510D
|
81510D
90981-15021 Bulb (For Front Turn Signal Lamp)[04.2009 -] GSE2# 12V 21W,AMBER |
90981-15021 |
from US $3.14 |
||
|
85661
|
85661
85661-48030 Motor, Headlamp Leveling, Rh[04.2009 -] GSE2# |
85661-48030 |
US $155.79 |
||
|
85662
|
85662
85661-48030 Motor, Headlamp Leveling, Rh[04.2009 -] GSE2# |
85661-48030 |
US $155.79 |
||
|
85669
|
85669
90075-99120 Packing, Headlamp Leveling Motor Base[04.2009 -] GSE2# |
90075-99120 |
from US $2.32 |
||
|
9007502056
|
9007502056
90075-02056 Screw, Headlamp |
90075-02056 |
from US $0.59 |
||
|
9010506298
|
9010506298
90105-06298 BOLT FLANGE |
90105-06298 |
from US $0.59 |
||
|
9010906374
|
9010906374
90109-06374 BOLT |
90109-06374 |
US $1.08 |
||
|
9015950311
|
9015950311
90159-50311 SCREW |
90159-50311 |
from US $0.70 |
