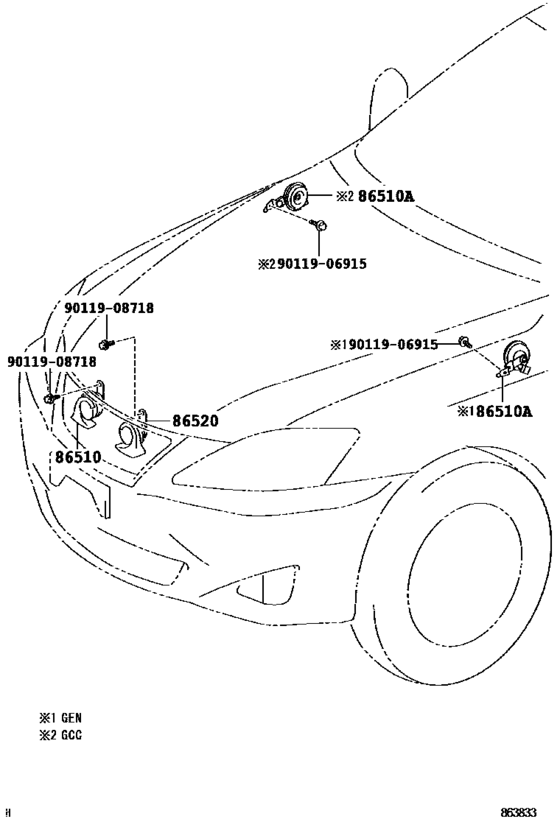

Horn ([04.2009 - ] (0904- )) Diagram Toyota LEXUS IS
- Year
- 2010 - 2015
- Sales region
- General
- Frame
- GSE20
- grade
- 250C
- ENGINE
- 4GRFSE
- TRANSMISSION
- ATM
- DESTINATION
- GCC
- Model
- IS250
- From
- 08.2010
- To
- 07.2015
- Gear Shift Type
- 6FC
- Vehicle Model
- IS250C
- Driver's Position
- LHD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
86510
|
86510
86510-30691 Horn Assy, High PitchedHIGH PITCHED [08.2010 - 07.2011] GSE20 |
86510-30691 |
US $35.24 |
||
| replacement | |||||
|
86510
|
86510
86510-30692 Horn Assy, High Pitched[08.2010 - 07.2011] GSE20 |
86510-30692 |
US $32.03 |
||
|
86510
|
86510
86510-50200
Horn Assy, High Pitched
[08.2011 -] GSE20 |
86510-50200 |
— | ||
|
86510A
|
86510A
86510-30660 Horn Assy, SecuritySECURITY [04.2009 -] GSE2#..GCC |
86510-30660 |
from US $32.47 |
||
|
86520
|
86520
86520-30601 Horn Assy, Low PitchedLOW PITCHED [08.2010 - 07.2011] GSE20 |
86520-30601 |
US $35.24 |
||
| replacement | |||||
|
86520
|
86520
86520-30602 Horn Assy, Low Pitched[08.2010 - 07.2011] GSE20 |
86520-30602 |
US $32.03 |
||
|
86520
|
86520
86520-50170
Horn Assy, Low Pitched
[08.2011 -] GSE20 |
86520-50170 |
— | ||
|
9011906915
|
9011906915
90119-06915 BOLT WWASHER |
90119-06915 |
from US $0.53 |
||
|
9011908718
|
9011908718
90119-08718 BOLT WWASHER |
90119-08718 |
from US $1.92 |
||
