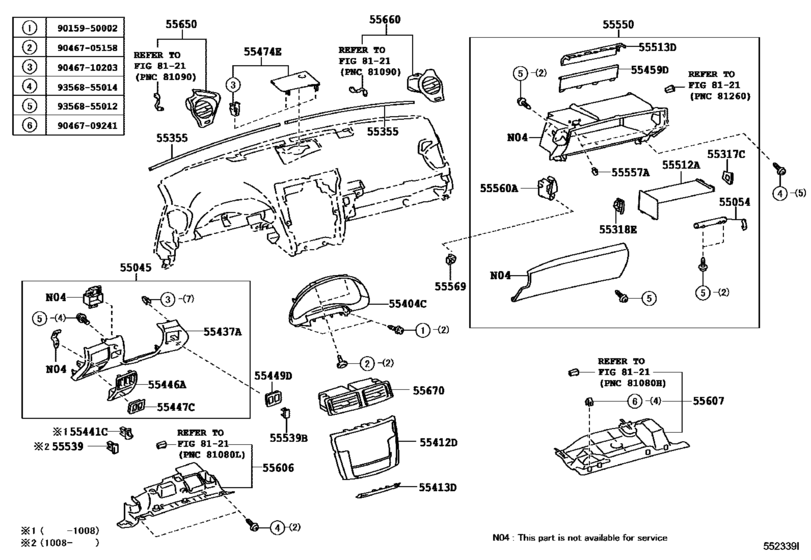

Instrument Panel & Glove Compartment ([04.2009 - ] (0904- )GCC) Diagram Toyota LEXUS IS
- Year
- 2010 - 2015
- Sales region
- General
- Frame
- GSE20
- grade
- 250C
- ENGINE
- 4GRFSE
- TRANSMISSION
- ATM
- DESTINATION
- GCC
- Model
- IS250
- From
- 08.2010
- To
- 07.2015
- Gear Shift Type
- 6FC
- Vehicle Model
- IS250C
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55045
|
55045
55045-53120-A0
Panel Sub-Assy, Instrument Panel Finish, Lower
[08.2010 - 11.2011] GSE2#..GCC MELLOW WHITE,TRIM0# |
55045-53120-A0 |
— | ||
| replacement | |||||
|
55045
|
55045
55045-53121-A0
Panel Sub-Assy, Instrument Panel Finish, Lower
[08.2010 - 11.2011] GSE2#..GCC MELLOW WHITE,TRIM0# |
55045-53121-A0 |
— | ||
|
55045
|
55045
55045-53120-C0
Panel Sub-Assy, Instrument Panel Finish, Lower
[08.2010 - 11.2011] GSE2#..GCC BLACK,TRIM1#,2#,3#,4# |
55045-53120-C0 |
— | ||
| replacement | |||||
|
55045
|
55045
55045-53121-C0
Panel Sub-Assy, Instrument Panel Finish, Lower
[08.2010 - 11.2011] GSE2#..GCC BLACK,TRIM1#,2#,3#,4# |
55045-53121-C0 |
— | ||
|
55045
|
55045
55045-53121-A0
Panel Sub-Assy, Instrument Panel Finish, Lower
[12.2011 - 07.2015] GSE2#..GCC MELLOW WHITE,TRIM0# |
55045-53121-A0 |
— | ||
|
55045
|
55045
55045-53121-C0
Panel Sub-Assy, Instrument Panel Finish, Lower
[12.2011 - 07.2015] GSE2#..GCC BLACK,TRIM1#,2#,3#,4# |
55045-53121-C0 |
— | ||
|
55054
|
55054
55054-53020
Stopper Sub-Assy, Glove Compartment Door
[08.2010 -] GSE2#..GCC |
55054-53020 |
— | ||
|
55317C
|
55317C
55317-53050 Patch, Instrument Side, Lower Rh[04.2009 - 02.2011] GSE2# |
55317-53050 |
US $3.93 |
||
| replacement | |||||
|
55317C
|
55317C
55317-53060 Patch, Instrument Side, Lower Rh[04.2009 - 02.2011] GSE2# |
55317-53060 |
US $2.91 |
||
|
55317C
|
55317C
55317-53060 Patch, Instrument Side, Lower Rh[02.2011 -] GSE2# |
55317-53060 |
US $2.91 |
||
|
55318E
|
55318E
55318-53020 Patch, Instrument Side, Lower Lh[02.2011 -] GSE2# |
55318-53020 |
US $2.91 |
||
|
55318E
|
55318E
55318-53030 Patch, Instrument Side, Lower Lh[04.2009 - 02.2011] GSE2# |
55318-53030 |
US $3.93 |
||
| replacement | |||||
|
55318E
|
55318E
55318-53020 Patch, Instrument Side, Lower Lh[04.2009 - 02.2011] GSE2# |
55318-53020 |
US $2.91 |
||
|
55355
|
55355
55355-30100 Cushion, Instrument Panel, No.1[04.2009 - 07.2015] GSE2# |
55355-30100 |
US $10.93 |
||
|
55404C
|
55404C
55404-53050
Panel Sub-Assy, Instrument Cluster Finish, No.2
[04.2009 -] GSE2#..GCC |
55404-53050 |
— | ||
|
55412D
|
55412D
55405-53100
Panel, Instrument Cluster Finish, Center
[04.2009 - 07.2015] GSE2#; GSE2# AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI; GSE2# AUDIO-AM/FM CD-CHANGER 8SUPERKAER NAVI; GSE2#..GCC AUDIO-AM/FM DVD 12SPEAKER; GSE2#..GCC AUDIO-AM/FM DVD 8SPEAKER |
55405-53100 |
— | ||
|
55413D
|
55413D
55413-53051 Panel, Instrument Cluster Finish, Center Lower[04.2009 -] GSE2# |
55413-53051 |
US $11.50 |
||
|
55413D
|
55413D
55413-53080 Panel, Instrument Cluster Finish, Center Lower[08.2012 -] GSE2#..GCC AUDIO-AM/FM DVD 12SPEAKER; GSE2#..GCC AUDIO-AM/FM DVD 8SPEAKER |
55413-53080 |
US $11.50 |
||
|
55437A
|
55437A
55437-53022-A2
Retainer, Instrument Panel Finish Panel, No.1
[08.2010 - 11.2011] GSE2#..GCC MELLOW WHITE,TRIM0# |
55437-53022-A2 |
— | ||
| replacement | |||||
|
55437A
|
55437A
55437-53023-A2
Retainer, Instrument Panel Finish Panel, No.1
[08.2010 - 11.2011] GSE2#..GCC MELLOW WHITE,TRIM0# |
55437-53023-A2 |
— | ||
|
55437A
|
55437A
55437-53022-C0
Retainer, Instrument Panel Finish Panel, No.1
[08.2010 - 11.2011] GSE2#..GCC BLACK,TRIM1#,2#,3#,4# |
55437-53022-C0 |
— | ||
| replacement | |||||
|
55437A
|
55437A
55437-53023-C0
Retainer, Instrument Panel Finish Panel, No.1
[08.2010 - 11.2011] GSE2#..GCC BLACK,TRIM1#,2#,3#,4# |
55437-53023-C0 |
— | ||
|
55437A
|
55437A
55437-53023-A2
Retainer, Instrument Panel Finish Panel, No.1
[12.2011 - 07.2015] GSE2#..GCC MELLOW WHITE,TRIM0# |
55437-53023-A2 |
— | ||
|
55437A
|
55437A
55437-53023-C0
Retainer, Instrument Panel Finish Panel, No.1
[12.2011 - 07.2015] GSE2#..GCC BLACK,TRIM1#,2#,3#,4# |
55437-53023-C0 |
— | ||
|
55446A
|
55446A
55446-53090-A0
Base, Switch Hole, No.1
[08.2010 - 11.2011] GSE2#..GCC MELLOW WHITE,TRIM0# |
55446-53090-A0 |
— | ||
| replacement | |||||
|
55446A
|
55446A
55446-53091-A0
Base, Switch Hole, No.1
[08.2010 - 11.2011] GSE2#..GCC MELLOW WHITE,TRIM0# |
55446-53091-A0 |
— | ||
|
55446A
|
55446A
55446-53090-C0
Base, Switch Hole, No.1
[08.2010 - 11.2011] GSE2#..GCC BLACK,TRIM1#,2#,3#,4# |
55446-53090-C0 |
— | ||
| replacement | |||||
|
55446A
|
55446A
55446-53091-C0
Base, Switch Hole, No.1
[08.2010 - 11.2011] GSE2#..GCC BLACK,TRIM1#,2#,3#,4# |
55446-53091-C0 |
— | ||
|
55446A
|
55446A
55446-53091-A0
Base, Switch Hole, No.1
[12.2011 - 07.2015] GSE2#..GCC MELLOW WHITE,TRIM0# |
55446-53091-A0 |
— | ||
|
55446A
|
55446A
55446-53091-C0
Base, Switch Hole, No.1
[12.2011 - 07.2015] GSE2#..GCC BLACK,TRIM1#,2#,3#,4# |
55446-53091-C0 |
— | ||
|
55447C
|
55447C
55447-53060-A0
Base, Switch Hole, No.2
[08.2010 - 11.2011] GSE2#..GCC MELLOW WHITE,TRIM0# |
55447-53060-A0 |
— | ||
| replacement | |||||
|
55447C
|
55447C
55447-53061-A0
Base, Switch Hole, No.2
[08.2010 - 11.2011] GSE2#..GCC MELLOW WHITE,TRIM0# |
55447-53061-A0 |
— | ||
|
55447C
|
55447C
55447-53060-C0
Base, Switch Hole, No.2
[08.2010 - 11.2011] GSE2#..GCC BLACK,TRIM1#,2#,3#,4# |
55447-53060-C0 |
— | ||
| replacement | |||||
|
55447C
|
55447C
55447-53061-C0
Base, Switch Hole, No.2
[08.2010 - 11.2011] GSE2#..GCC BLACK,TRIM1#,2#,3#,4# |
55447-53061-C0 |
— | ||
|
55447C
|
55447C
55447-53061-A0
Base, Switch Hole, No.2
[12.2011 - 07.2015] GSE2#..GCC MELLOW WHITE,TRIM0# |
55447-53061-A0 |
— | ||
|
55447C
|
55447C
55447-53061-C0
Base, Switch Hole, No.2
[12.2011 - 07.2015] GSE2#..GCC BLACK,TRIM1#,2#,3#,4# |
55447-53061-C0 |
— | ||
|
55449D
|
55449D
55449-53021-A2
Base, Switch
[04.2009 - 08.2011] GSE2#..GCC MELLOW WHITE,TRIM0# |
55449-53021-A2 |
— | ||
|
55449D
|
55449D
55449-53021-C0
Base, Switch
[04.2009 - 08.2011] GSE2#..GCC BLACK,TRIM1#,2#,3#,4# |
55449-53021-C0 |
— | ||
|
55449D
|
55449D
55449-53040-A2
Base, Switch
[08.2011 - 07.2015] GSE2#..GCC MELLOW WHITE,TRIM0# |
55449-53040-A2 |
— | ||
|
55449D
|
55449D
55449-53040-C0
Base, Switch
[08.2011 - 07.2015] GSE2#..GCC BLACK,TRIM1#,2#,3#,4# |
55449-53040-C0 |
— | ||
|
55459D
|
55459D
55459-30060 Cover, Instrument, Lower LhINSTRUMENT, LOWER LH [02.2011 - 08.2012] GSE2# |
55459-30060 |
US $14.50 |
||
|
55459D
|
55459D
55459-48020 Cover, Instrument, Lower Lh[08.2010 - 02.2011] GSE2# |
55459-48020 |
US $16.60 |
||
|
55474E
|
55474E
55474-53050-C0
Panel Sub-Assy, Instrument Panel Speaker, No.3
[04.2009 - 07.2015] GSE2#..GCC BLACK,TRIM0#,1#,2#,3#,4# |
55474-53050-C0 |
— | ||
|
55474E
|
55474E
55474-53060-C0
Panel Sub-Assy, Instrument Panel Speaker, No.3
[04.2009 - 08.2012] GSE2#..GCC AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI,BLACK,TRIM0#,1#,2#,3#,4# |
55474-53060-C0 |
— | ||
|
55512A
|
55512A
55512-53020
Plate, Glove Compartment
[04.2009 -] GSE2#..GCC |
55512-53020 |
— | ||
|
55513D
|
55513D
55513-53020
Plate, Glove Compartment, No.2
[04.2009 -] GSE2#..GCC |
55513-53020 |
— | ||
|
55539
|
55539
55539-44010-A3 Cover, Spare Switch HoleSPARE SWITCH HOLE, NO.2 [08.2010 - 08.2011] GSE2# MELLOW WHITE,TRIM0# |
55539-44010-A3 |
US $4.08 |
||
|
55539
|
55539
55539-44010-C0 Cover, Spare Switch Hole[08.2010 - 08.2011] GSE2# BLACK,TRIM1#,2#,3#,4# |
55539-44010-C0 |
US $4.08 |
||
|
55539B
|
55539B
55539-52060-A7 Cover, Spare Switch Hole, No.2[08.2011 - 07.2015] GSE2# MELLOW WHITE,TRIM0# |
55539-52060-A7 |
US $3.20 |
||
|
55539B
|
55539B
55539-52060-C0 Cover, Spare Switch Hole[08.2011 - 07.2015] GSE2# BLACK,TRIM1#,2#,3#,4# |
55539-52060-C0 |
from US $3.36 |
||
|
55550
|
55550
55550-53090-A2
Door Assy, Glove Compartment
[08.2010 - 01.2011] GSE2#..GCC MELLOW WHITE,TRIM0# |
55550-53090-A2 |
— | ||
| replacement | |||||
|
55550
|
55550
55550-53093-A2
Door Assy, Glove Compartment
[08.2010 - 01.2011] GSE2#..GCC MELLOW WHITE,TRIM0# |
55550-53093-A2 |
— | ||
|
55550
|
55550
55550-53090-C0
Door Assy, Glove Compartment
[08.2010 - 01.2011] GSE2#..GCC BLACK,TRIM1#,2#,3#,4# |
55550-53090-C0 |
— | ||
| replacement | |||||
|
55550
|
55550
55550-53093-C0
Door Assy, Glove Compartment
[08.2010 - 01.2011] GSE2#..GCC BLACK,TRIM1#,2#,3#,4# |
55550-53093-C0 |
— | ||
|
55550
|
55550
55550-53091-A2
Door Assy, Glove Compartment
[02.2011 - 07.2012] GSE2#..GCC MELLOW WHITE,TRIM0# |
55550-53091-A2 |
— | ||
| replacement | |||||
|
55550
|
55550
55550-53093-A2
Door Assy, Glove Compartment
[02.2011 - 07.2012] GSE2#..GCC MELLOW WHITE,TRIM0# |
55550-53093-A2 |
— | ||
|
55550
|
55550
55550-53091-C0
Door Assy, Glove Compartment
[02.2011 - 07.2012] GSE2#..GCC BLACK,TRIM1#,2#,3#,4# |
55550-53091-C0 |
— | ||
| replacement | |||||
|
55550
|
55550
55550-53093-C0
Door Assy, Glove Compartment
[02.2011 - 07.2012] GSE2#..GCC BLACK,TRIM1#,2#,3#,4# |
55550-53093-C0 |
— | ||
|
55550
|
55550
55550-53092-A2
Door Assy, Glove Compartment
[08.2012 - 07.2015] GSE2#..GCC MELLOW WHITE,TRIM0# |
55550-53092-A2 |
— | ||
| replacement | |||||
|
55550
|
55550
55550-53093-A2
Door Assy, Glove Compartment
[08.2012 - 07.2015] GSE2#..GCC MELLOW WHITE,TRIM0# |
55550-53093-A2 |
— | ||
|
55550
|
55550
55550-53092-C0
Door Assy, Glove Compartment
[08.2012 - 07.2015] GSE2#..GCC BLACK,TRIM1#,2#,3#,4# |
55550-53092-C0 |
— | ||
| replacement | |||||
|
55550
|
55550
55550-53093-C0
Door Assy, Glove Compartment
[08.2012 - 07.2015] GSE2#..GCC BLACK,TRIM1#,2#,3#,4# |
55550-53093-C0 |
— | ||
|
55557A
|
55557A
55557-30090 Cushion, Glove Compartment Door Check[02.2011 -] GSE2# |
55557-30090 |
US $2.48 |
||
|
55557A
|
55557A
55557-53030 Cushion(For Glove Compartment Door)[04.2009 - 02.2011] GSE2# |
55557-53030 |
US $1.85 |
||
|
55560A
|
55560A
55560-53030-A2
Lock Assy, Glove Compartment Door
[04.2009 - 07.2015] GSE2#..GCC MELLOW WHITE,TRIM0# |
55560-53030-A2 |
— | ||
|
55560A
|
55560A
55560-53030-C0
Lock Assy, Glove Compartment Door
[08.2010 - 07.2015] GSE2#..GCC BLACK,TRIM1#,2#,3#,4# |
55560-53030-C0 |
— | ||
|
55569
|
55569
55569-53020-A2
Cover, Glove Compartment Door Lock
[04.2009 - 07.2015] GSE2#..GCC MELLOW WHITE,TRIM0# |
55569-53020-A2 |
— | ||
|
55569
|
55569
55569-53020-C0
Cover, Glove Compartment Door Lock
[04.2009 - 07.2015] GSE2#..GCC BLACK,TRIM1#,2#,3#,4# |
55569-53020-C0 |
— | ||
|
55606
|
55606
55606-53031
Cover Sub-Assy, Instrument Panel Under, No.1
[04.2009 - 08.2014] GSE2#..GCC |
55606-53031 |
— | ||
|
55606
|
55606
55606-53080
Cover Sub-Assy, Instrument Panel Under, No.1
[08.2014 -] GSE2# |
55606-53080 |
— | ||
|
55607
|
55607
55607-53030
Cover Sub-Assy, Instrument Panel Under, No.2
[04.2009 -] GSE2#..GCC |
55607-53030 |
— | ||
|
55650
|
55650
55650-53060-C0
Register Assy, Instrument Panel, No.1
[08.2010 - 07.2015] GSE2#..GCC BLACK,TRIM0#,1#,2#,3#,4# |
55650-53060-C0 |
— | ||
|
55660
|
55660
55660-53060-C0
Register Assy, Instrument Panel, No.2
[08.2010 - 07.2015] GSE2#..GCC BLACK,TRIM0#,1#,2#,3#,4# |
55660-53060-C0 |
— | ||
|
55670
|
55670
55670-53050-C0 Register Assy, Instrument Panel, No.3[08.2010 - 07.2015] GSE2# BLACK,TRIM0#,1#,2#,3#,4# |
55670-53050-C0 |
US $216 |
||
|
9015950002
|
9015950002
90159-50002 SCREW |
90159-50002 |
US $1.25 |
||
|
9046705158
|
9046705158
90467-05158 Clip, Safety Pad Set |
90467-05158 |
US $1.51 |
||
|
9046709241
|
9046709241
90467-09241 Clip(For Back Door Side Garnish) |
90467-09241 |
US $1.43 |
||
|
9046710203
|
9046710203
90467-10203 Direct |
90467-10203 |
from US $0.64 |
||
|
9356855012
|
9356855012
93568-55012 SCREW |
93568-55012 |
US $1.08 |
||
|
9356855014
|
9356855014
93568-55014 Screw |
93568-55014 |
from US $0.48 |
||
