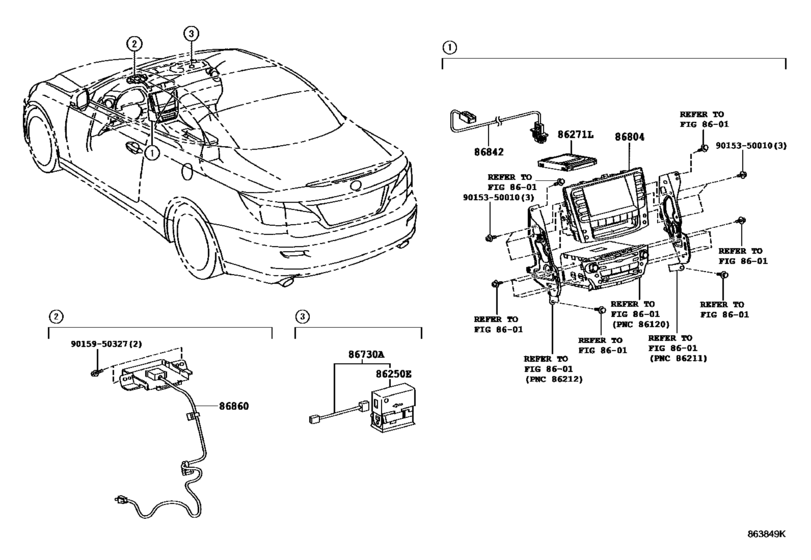

Navigation & Front Monitor Display ([04.2009 - 08.2012] HDD NAVIGATION (0904-1208)GCC) Diagram Toyota LEXUS IS
- Year
- 2010 - 2015
- Sales region
- General
- Frame
- GSE20
- grade
- 250C
- ENGINE
- 4GRFSE
- TRANSMISSION
- ATM
- DESTINATION
- GCC
- Model
- IS250
- From
- 08.2010
- To
- 07.2015
- Gear Shift Type
- 6FC
- Vehicle Model
- IS250C
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
86250E
|
86250E
86250-52030 Microphone Assy, Amplifier[04.2009 - 08.2011] GSE22..GCC EMV & NAVIGATION SYSTEM-DVD NAVIGATION; GSE20 EMV & NAVIGATION SYSTEM-HDD NAVIGATION |
86250-52030 |
US $61.44 |
||
|
86271L
|
86271L
86271-30810
Hard Disc
[08.2012 - 07.2015] GSE20 AUDIO-AM/FM DVD 12SPEAKER; GSE20 AUDIO-AM/FM DVD 8SPEAKER |
86271-30810 |
— | ||
|
86271L
|
86271L
86271-53080
Hard Disc
[08.2011 - 11.2011] GSE20 AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI; GSE20 AUDIO-AM/FM CD-CHANGER 8SUPERKAER NAVI |
86271-53080 |
— | ||
|
86271L
|
86271L
86271-60150 Hard Disc[08.2010 - 07.2011] GSE20 AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI; GSE20 AUDIO-AM/FM CD-CHANGER 8SUPERKAER NAVI |
86271-60150 |
US $1,071.20 |
||
|
86730A
|
86730A
86730-48040
Microphone Assy, Telephone
[04.2009 - 08.2011] GSE22..GCC EMV & NAVIGATION SYSTEM-DVD NAVIGATION; GSE20 EMV & NAVIGATION SYSTEM-HDD NAVIGATION |
86730-48040 |
— | ||
|
86804
|
86804
86804-53070
Cover Sub-Assy, Navigation Computer
[08.2010 - 07.2011] GSE20 AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI; GSE20 AUDIO-AM/FM CD-CHANGER 8SUPERKAER NAVI |
86804-53070 |
— | ||
|
86804
|
86804
86804-53A60
Cover Sub-Assy, Navigation Computer
[11.2011 - 08.2012] GSE20 AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI; GSE20 AUDIO-AM/FM CD-CHANGER 8SUPERKAER NAVI |
86804-53A60 |
— | ||
|
86804
|
86804
86804-53D70
Cover Sub-Assy, Navigation Computer
[07.2011 - 08.2011] GSE20 AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI; GSE20 AUDIO-AM/FM CD-CHANGER 8SUPERKAER NAVI |
86804-53D70 |
— | ||
|
86804
|
86804
86804-53D80
Cover Sub-Assy, Navigation Computer
[08.2011 - 09.2011] GSE20 AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI; GSE20 AUDIO-AM/FM CD-CHANGER 8SUPERKAER NAVI |
86804-53D80 |
— | ||
| replacement | |||||
|
86804
|
86804
86804-53D81
Cover Sub-Assy, Navigation Computer
[08.2011 - 09.2011] GSE20 AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI; GSE20 AUDIO-AM/FM CD-CHANGER 8SUPERKAER NAVI |
86804-53D81 |
— | ||
|
86804
|
86804
86804-53D81
Cover Sub-Assy, Navigation Computer
[10.2011 - 11.2011] GSE20 AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI; GSE20 AUDIO-AM/FM CD-CHANGER 8SUPERKAER NAVI |
86804-53D81 |
— | ||
|
86842
|
86842
86842-53070
Wire, Navigation, No.1
[08.2010 - 08.2012] GSE20 AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI; GSE20 AUDIO-AM/FM CD-CHANGER 8SUPERKAER NAVI |
86842-53070 |
— | ||
|
86842
|
86842
86842-53200 Wire, Navigation, No.1[08.2012 - 07.2015] GSE2#..GCC AUDIO-AM/FM DVD 12SPEAKER; GSE2#..GCC AUDIO-AM/FM DVD 8SPEAKER |
86842-53200 |
US $48.78 |
||
|
86860
|
86860
86860-53050 Antenna Assy, NavigationNAVIGATION [08.2010 - 08.2012] GSE22..GCC AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI; GSE20 AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI&EMV & NAVIGATION SYSTEM-HDD NAVIGATION; GSE22..GCC AUDIO-AM/FM CD-CHANGER 8SUPERKAER NAVI; GSE20 AUDIO-AM/FM CD-CHANGER 8SUPERKAER NAVI&EMV |
86860-53050 |
US $151.42 |
||
|
86860
|
86860
86860-53100
Antenna Assy, Navigation
[08.2012 -] GSE22..GCC AUDIO-AM/FM DVD 12SPEAKER; GSE20 AUDIO-AM/FM DVD 12SPEAKER&EMV & NAVIGATION SYSTEM-HDD NAVIGATION; GSE22..GCC AUDIO-AM/FM DVD 8SPEAKER; GSE20 AUDIO-AM/FM DVD 8SPEAKER&EMV & NAVIGATION SYSTEM-HDD NAVIGATION |
86860-53100 |
— | ||
|
9015350010
|
9015350010
90153-50010 BOLT |
90153-50010 |
from US $0.68 |
||
|
9015950327
|
9015950327
90159-50327 SCREW WWASHER |
90159-50327 |
from US $0.70 |
||
