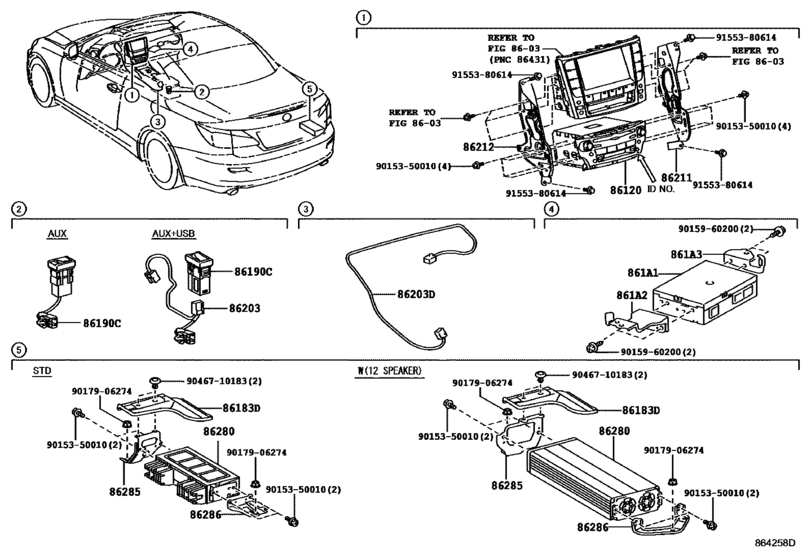

Radio Receiver & Amplifier & Condenser ([04.2009 - 08.2012] (0904-1208)GCC) Diagram Toyota LEXUS IS
- Year
- 2010 - 2015
- Sales region
- General
- Frame
- GSE20
- grade
- 250C
- ENGINE
- 4GRFSE
- TRANSMISSION
- ATM
- DESTINATION
- GCC
- Model
- IS250
- From
- 08.2010
- To
- 07.2015
- Gear Shift Type
- 6FC
- Vehicle Model
- IS250C
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
861A1
|
861A1
861A0-48030 Computer, Multi-Media Interface[08.2009 - 07.2011] GSE2# |
861A0-48030 |
US $286.83 |
||
|
861A1
|
861A1
861A0-77010 Computer Assy, Multi-Media Interface[08.2009 - 07.2011] GSE2#..GCC AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI; GSE2#..GCC AUDIO-AM/FM CD-CHANGER 8SUPERKAER NAVI |
861A0-77010 |
US $315.95 |
||
|
861A2
|
861A2
861A2-53010
Bracket, Multi-Media Interface, No.1
[08.2009 -] GSE2#..GCC |
861A2-53010 |
— | ||
|
861A3
|
861A3
861A3-53010
Bracket, Multi-Media Interface, No.2
[08.2009 -] GSE2#..GCC |
861A3-53010 |
— | ||
|
86120
|
86120
86120-53560
Receiver Assy, Radio
[09.2011 - 07.2015] GSE20 PIONEER, ID=P10125 |
86120-53560 |
— | ||
|
86120
|
86120
86120-53B50
Receiver Assy, Radio
[08.2010 - 09.2011] GSE20 PIONEER, ID=P2881 |
86120-53B50 |
— | ||
|
86120
|
86120
86120-53B70
Receiver Assy, Radio
[08.2010 - 08.2012] GSE20 PIONEER, ID=P7545,AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI |
86120-53B70 |
— | ||
|
86120
|
86120
86120-53C30
Receiver Assy, Radio
[08.2010 - 08.2012] GSE20 PIONEER, ID=P2882,AUDIO-AM/FM CD-CHANGER 8SUPERKAER NAVI |
86120-53C30 |
— | ||
|
86183D
|
86183D
86183-53010 Cover, Audio AmplifierAUDIO AMPLIFIER [04.2009 -] GSE2# |
86183-53010 |
US $20.68 |
||
|
86190C
|
86190C
86190-53040 Adapter Assy, Stereo Jack, No.1STEREO JACK, NO.1 [08.2009 - 07.2015] GSE2# |
86190-53040 |
US $113.57 |
||
|
86203
|
86203
86203-53010 Wire, RadioRADIO [08.2009 - 07.2015] GSE2# |
86203-53010 |
US $13.40 |
||
|
86203D
|
86203D
86203-53020
Wire, Stereo Component, No.1
[08.2009 - 07.2015] GSE2#..GCC |
86203-53020 |
— | ||
|
86203D
|
86203D
86203-53210
Wire, Stereo Component, No.1
[08.2012 - 07.2015] GSE2#..GCC AUDIO-AM/FM DVD 12SPEAKER; GSE2#..GCC AUDIO-AM/FM DVD 8SPEAKER |
86203-53210 |
— | ||
|
86211
|
86211
86211-53030 Bracket, Radio, No.1[04.2009 - 07.2015] GSE2# |
86211-53030 |
US $8.74 |
||
|
86211
|
86211
86211-53070 Bracket, Radio, No.1[08.2012 - 07.2015] GSE2#..GCC AUDIO-AM/FM DVD 12SPEAKER; GSE2#..GCC AUDIO-AM/FM DVD 8SPEAKER |
86211-53070 |
US $8.74 |
||
|
86212
|
86212
86212-53030 Bracket, Radio, No.2[04.2009 - 07.2015] GSE2# |
86212-53030 |
US $9.32 |
||
|
86212
|
86212
86212-53070 Bracket, Radio, No.2[08.2012 - 07.2015] GSE2#..GCC AUDIO-AM/FM DVD 12SPEAKER; GSE2#..GCC AUDIO-AM/FM DVD 8SPEAKER |
86212-53070 |
US $8.74 |
||
|
86280
|
86280
86280-0W660
Amplifier Assy, Stereo Component
[04.2009 - 08.2012] GSE2#..GCC AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI |
86280-0W660 |
— | ||
|
86280
|
86280
86280-0WB20
Amplifier Assy, Stereo Component
[08.2012 -] GSE2#..GCC AUDIO-AM/FM DVD 12SPEAKER |
86280-0WB20 |
— | ||
|
86280
|
86280
86280-53120
Amplifier Assy, Stereo Component
[04.2009 -] GSE2# |
86280-53120 |
— | ||
|
86280
|
86280
86280-53130 Amplifier Assy, Stereo ComponentSTEREO COMPONENT [04.2009 - 08.2012] GSE2#..GCC AUDIO-AM/FM CD-CHANGER 8SUPERKAER NAVI |
86280-53130 |
US $1,616.16 |
||
|
86280
|
86280
86280-53200
Amplifier Assy, Stereo Component
[08.2012 -] GSE2#..GCC AUDIO-AM/FM DVD 8SPEAKER |
86280-53200 |
— | ||
|
86285
|
86285
86285-53060 Bracket, Amplifier, No.1AMPLIFIER, NO.1 [04.2009 -] GSE2# |
86285-53060 |
US $10.05 |
||
|
86285
|
86285
86285-53070 Bracket, Amplifier, No.1AMPLIFIER, NO.1 [04.2009 - 08.2012] GSE2#..GCC AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI |
86285-53070 |
US $9.32 |
||
|
86286
|
86286
86286-53060 Bracket, Amplifier, No.2AMPLIFIER, NO.2 [04.2009 -] GSE2# |
86286-53060 |
US $9.17 |
||
|
86286
|
86286
86286-53070 Bracket, Amplifier, No.2AMPLIFIER, NO.2 [04.2009 - 08.2012] GSE2#..GCC AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI |
86286-53070 |
US $8.59 |
||
|
9015350010
|
9015350010
90153-50010 BOLT |
90153-50010 |
from US $0.68 |
||
|
9015960200
|
9015960200
90159-60200 SCREW |
90159-60200 |
US $1.79 |
||
|
9017906274
|
9017906274
90179-06274 Nut |
90179-06274 |
from US $0.68 |
||
|
9046710183
|
9046710183
90467-10183 Clip(For Luggage Compartment Trim Inner Cover) |
90467-10183 |
from US $0.82 |
||
|
9155380614
|
9155380614
91553-80614 BOLT FLANGE |
91553-80614 |
US $1.08 |
