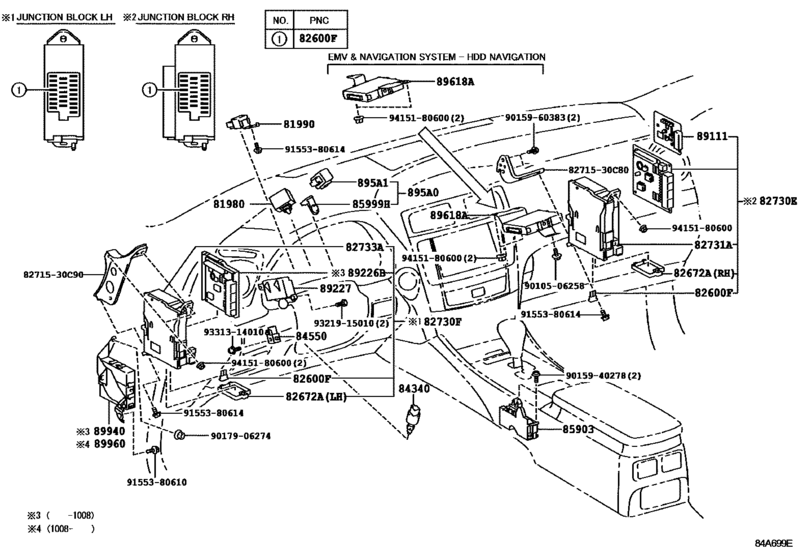

Switch & Relay & Computer ([04.2009 - ] COWL (0904- )GCC) Diagram Toyota LEXUS IS
- Year
- 2010 - 2015
- Sales region
- General
- Frame
- GSE20
- grade
- 250C
- ENGINE
- 4GRFSE
- TRANSMISSION
- ATM
- DESTINATION
- GCC
- Model
- IS250
- From
- 08.2010
- To
- 07.2015
- Gear Shift Type
- 6FC
- Vehicle Model
- IS250C
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
895A0
|
895A0
895A0-53020 Relay Assy, Stop Lamp Control[08.2010 -] GSE2# |
895A0-53020 |
US $55.18 |
||
|
895A1
|
895A1
895A1-12010 Relay, Stop Lamp ControlSTOP LAMP CONTROL [08.2010 -] GSE2# |
895A1-12010 |
US $50.67 |
||
|
81980
|
81980
81980-53040 Flasher Assy, Turn SignalTURN SIGNAL [04.2009 -] GSE2# |
81980-53040 |
US $70.18 |
||
|
81990
|
81990
81991-53010 Relay Assy, Turn SignalTURN SIGNAL [04.2009 -] GSE2# |
81991-53010 |
US $62.46 |
||
|
82600F
|
82600F
90982-09020 Fusible Link[04.2009 - 07.2015] GSE2# 7.5A,MINI FUSE |
90982-09020 |
from US $0.84 |
||
|
82600F
|
82600F
90982-09021 Fusible Link[04.2009 - 07.2015] GSE2# 10A,MINI FUSE |
90982-09021 |
from US $0.78 |
||
|
82600F
|
82600F
90982-09022 Instrument Panel Fuse[04.2009 - 07.2015] GSE2# 15A,MINI FUSE |
90982-09022 |
from US $0.80 |
||
|
82600F
|
82600F
90982-09023 Instrument Panel Fuse[04.2009 - 07.2015] GSE2# 20A,MINI FUSE |
90982-09023 |
from US $0.84 |
||
|
82600F
|
82600F
90982-09024 Instrument Panel Fuse[04.2009 - 07.2015] GSE2# 25A,MINI FUSE |
90982-09024 |
from US $0.82 |
||
|
82600F
|
82600F
90982-09025 Instrument Panel Fuse[04.2009 - 07.2015] GSE2# 30A,MINI FUSE |
90982-09025 |
from US $0.76 |
||
|
82672A
|
82672A
82672-53130
Cover, Junction Block
[08.2010 -] GSE20 LH |
82672-53130 |
— | ||
|
82672A
|
82672A
82672-53160
Cover, Junction Block
[08.2010 -] GSE20 RH |
82672-53160 |
— | ||
|
82730E
|
82730E
82730-53A92
Block Assy, Junction, Rh
[08.2010 - 08.2011] GSE20 |
82730-53A92 |
— | ||
|
82730E
|
82730E
82730-53A93
Block Assy, Junction, Rh
[08.2011 - 10.2014] GSE20 |
82730-53A93 |
— | ||
|
82730E
|
82730E
82730-53A94
Block Assy, Junction, Rh
[10.2014 -] GSE20 |
82730-53A94 |
— | ||
|
82730F
|
82730F
82730-53592
Block Assy, Junction, Lh
[08.2010 -] GSE20 |
82730-53592 |
— | ||
|
82731A
|
82731A
82731-53030 Block, Cowl Side Junction, Rh[04.2009 -] GSE2# |
82731-53030 |
US $96.10 |
||
|
82733A
|
82733A
82733-53040 Block, Cowl Side Junction, Lh[04.2009 -] GSE2# |
82733-53040 |
from US $119.92 |
||
|
84340
|
84340
84340-30110 Switch Assy, Stop Lamp[04.2009 - 07.2015] GSE2# |
84340-30110 |
from US $19.82 |
||
|
84550
|
84550
84550-16060 Switch Assy, Parking Brake[04.2009 - 07.2015] GSE2# |
84550-16060 |
from US $19.32 |
||
|
85903
|
85903
85903-30080
Computer Sub-Assy, Shift Lock Control
[04.2009 - 07.2015] GSE2#..GCC |
85903-30080 |
— | ||
|
85999H
|
85999H
895A9-53020 Bracket, Relay[08.2010 -] GSE2# |
895A9-53020 |
US $5.39 |
||
|
89111
|
89111
89100-53040 Computer, Network GatewayNETWORK GATEWAY [04.2009 -] GSE2# |
89100-53040 |
US $378.56 |
||
|
89227
|
89227
89227-30020 Computer, Multiplex Tilt & Telescopic[04.2009 - 07.2015] GSE2# |
89227-30020 |
US $492.13 |
||
|
89618A
|
89618A
89670-53090
Computer, Power Source Control
[04.2009 - 08.2012] GSE2#..GCC |
89670-53090 |
— | ||
|
89618A
|
89618A
89670-53091
Computer, Power Source Control
[08.2012 -] GSE2#..GCC |
89670-53091 |
— | ||
|
89618A
|
89618A
89670-53140
Computer, Power Source Control
[08.2010 - 08.2012] GSE20 EMV & NAVIGATION SYSTEM-HDD NAVIGATION |
89670-53140 |
— | ||
|
89618A
|
89618A
89670-53141
Computer, Power Source Control
[08.2012 -] GSE20 EMV & NAVIGATION SYSTEM-HDD NAVIGATION |
89670-53141 |
— | ||
|
89960
|
89960
89960-53100 Computer Assy, Headlamp Leveling[08.2010 -] GSE2# |
89960-53100 |
US $298.48 |
||
|
8271530C80
|
8271530C80
82715-30C80 Bracket,wiring Harness Clamp |
82715-30C80 |
US $9.46 |
||
|
8271530C90
|
8271530C90
82715-30C90 Bracket,wiring Harness Clamp |
82715-30C90 |
US $18.78 |
||
|
9010506258
|
9010506258
90105-06258 BOLT, WASHER BASED |
90105-06258 |
US $1.97 |
||
|
9015940278
|
9015940278
90159-40278 New Genuine Part |
90159-40278 |
US $0.73 |
||
|
9015960383
|
9015960383
90159-60383 SCREW WWASHER |
90159-60383 |
from US $0.82 |
||
|
9017906274
|
9017906274
90179-06274 Nut |
90179-06274 |
from US $0.68 |
||
|
9155380610
|
9155380610
91553-80610 BOLT FLANGE |
91553-80610 |
US $1.08 |
||
|
9155380614
|
9155380614
91553-80614 BOLT FLANGE |
91553-80614 |
US $1.08 |
||
|
9321915010
|
9321915010
93219-15010 SCREW |
93219-15010 |
US $2.04 |
||
|
9331314010
|
9331314010
93313-14010 New Genuine Part |
93313-14010 |
US $0.73 |
||
|
9415180600
|
9415180600
94151-80600 Nut, Cap(For Cylinder Head Cover) |
94151-80600 |
from US $0.65 |
