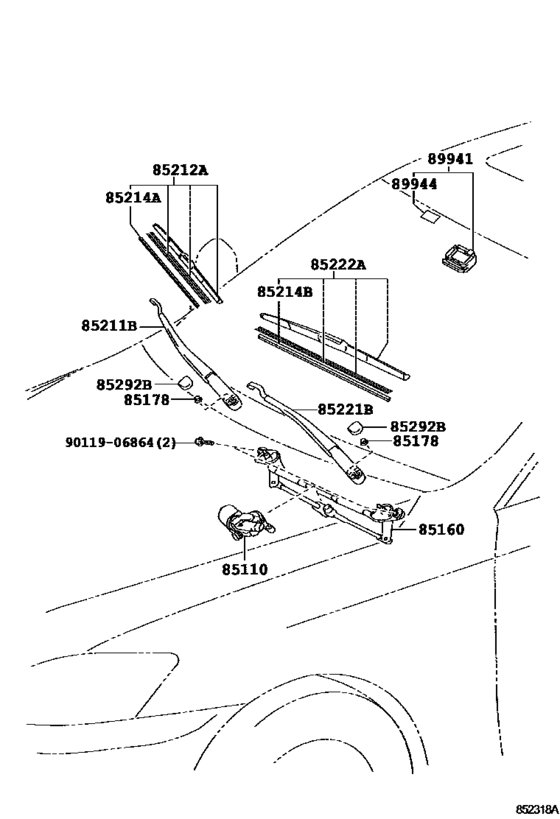

Windshield Wiper ([04.2009 - ] (0904- )GCC) Diagram Toyota LEXUS IS
- Year
- 2010 - 2015
- Sales region
- General
- Frame
- GSE20
- grade
- 250C
- ENGINE
- 4GRFSE
- TRANSMISSION
- ATM
- DESTINATION
- GCC
- Model
- IS250
- From
- 08.2010
- To
- 07.2015
- Gear Shift Type
- 6FC
- Vehicle Model
- IS250C
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
85110
|
85110
85110-60400
Motor Assy, Windshield Wiper
[04.2009 -] GSE20 |
85110-60400 |
— | ||
|
85160
|
85160
85150-53060
Link Assy, Windshield Wiper
[08.2010 -] GSE20 |
85150-53060 |
— | ||
|
85178
|
85178
90179-10223 Nut (For Front Wiper Arm Setting)[04.2009 - 06.2011] GSE2# |
90179-10223 |
US $1.79 |
||
|
85178
|
85178
90182-10006 Nut (For Front Wiper Arm Setting)[07.2011 -] GSE2# |
90182-10006 |
US $1.43 |
||
|
85211B
|
85211B
85211-53070 Arm, Front Wiper, RhFR WIPER, RH [08.2010 -] GSE20 |
85211-53070 |
US $70.70 |
||
|
85212A
|
85212A
85212-53081 Blade, Fr Wiper, RhFR WIPER, RH [04.2009 -] GSE2#..GCC |
85212-53081 |
US $38.44 |
||
|
85214A
|
85214A
85214-53090 Rubber, Wiper, Rh[04.2009 -] GSE2#..GCC |
85214-53090 |
US $14.34 |
||
|
85214B
|
85214B
85214-53080 Rubber, Wiper, Rh[04.2009 -] GSE2#..GCC |
85214-53080 |
US $15.23 |
||
|
85221B
|
85221B
85221-53070 Arm, Front Wiper, LhFR WIPER, LH [08.2010 -] GSE20 |
85221-53070 |
US $60.99 |
||
|
85222A
|
85222A
85222-53071 Blade, Fr Wiper, RhFR WIPER, LH [04.2009 -] GSE2#..GCC |
85222-53071 |
US $53.59 |
||
|
85292B
|
85292B
85292-13010 Cover, Windshield Wiper Arm[04.2009 -] GSE2# |
85292-13010 |
US $4.48 |
||
|
89941
|
89941
89941-53020 Sensor, RainRAIN [08.2009 -] GSE2#..GCC |
89941-53020 |
US $342.16 |
||
|
89944
|
89944
89944-30020 Tape, Rain Sensor[04.2009 -] GSE2#..GCC |
89944-30020 |
US $39.98 |
||
|
9011906864
|
9011906864
90119-06864 BOLT W-WASHER |
90119-06864 |
US $1.43 |
