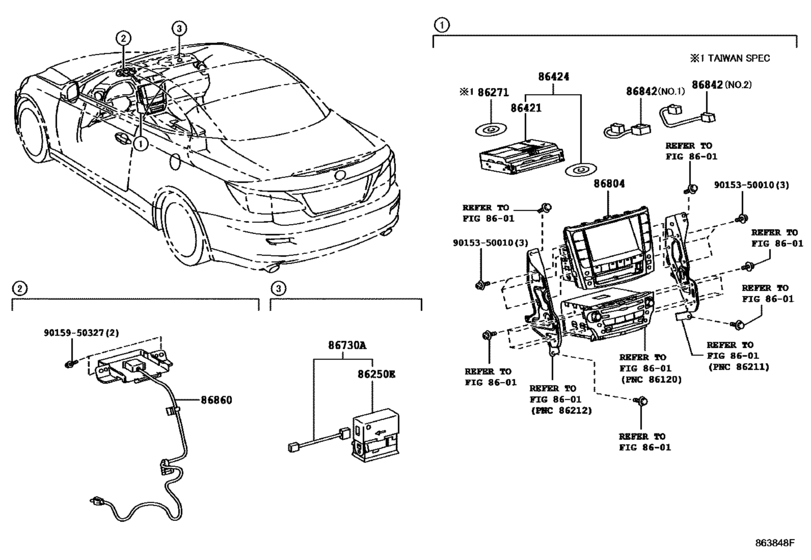

Navigation & Front Monitor Display ([04.2009 - 08.2012] DVD NAVIGATION (0904-1208)LHD) Diagram Toyota LEXUS IS
- Year
- 2009 - 2015
- Sales region
- Europe
- Frame
- GSE20
- grade
- 250C
- ENGINE
- 4GRFSE
- TRANSMISSION
- ATM
- Model
- IS250
- From
- 04.2009
- To
- 07.2015
- Gear Shift Type
- 6FC
- Vehicle Model
- IS250C
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
86250E
|
86250E
86250-52030 Microphone Assy, Amplifier[04.2009 -] GSE20..LHD; GSE20..LHD..6FC TAIWAN SPEC; GSE20..LHD..6FC CHILE SPEC; GSE20..LHD..6FC MICROPHONE & MIKE-AMPLIFIER-WITHOUT |
86250-52030 |
US $61.44 |
||
|
86271
|
86271
86807-0W035
Disc, Disc Player
[08.2010 - 07.2011] GSE20..LHD TAIWAN SPEC&AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI&MAP DISC(DOP)-WITH; GSE20..LHD TAIWAN SPEC&AUDIO-AM/FM CD-CHANGER 8SUPERKAER NAVI&MAP DISC(DOP)-WITH |
86807-0W035 |
— | ||
| replacement | |||||
|
86271
|
86271
86807-0W251
Disc Kit, Cd-Rom
[08.2010 - 07.2011] GSE20..LHD TAIWAN SPEC&AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI&MAP DISC(DOP)-WITH; GSE20..LHD TAIWAN SPEC&AUDIO-AM/FM CD-CHANGER 8SUPERKAER NAVI&MAP DISC(DOP)-WITH |
86807-0W251 |
— | ||
|
86271
|
86271
86807-0W036
Disc, Disc Player
[08.2011 - 08.2012] GSE20..LHD TAIWAN SPEC&AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI&MAP DISC(DOP)-WITH; GSE20..LHD TAIWAN SPEC&AUDIO-AM/FM CD-CHANGER 8SUPERKAER NAVI&MAP DISC(DOP)-WITH |
86807-0W036 |
— | ||
| replacement | |||||
|
86271
|
86271
86807-0W251
Disc Kit, Cd-Rom
[08.2011 - 08.2012] GSE20..LHD TAIWAN SPEC&AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI&MAP DISC(DOP)-WITH; GSE20..LHD TAIWAN SPEC&AUDIO-AM/FM CD-CHANGER 8SUPERKAER NAVI&MAP DISC(DOP)-WITH |
86807-0W251 |
— | ||
|
86271
|
86271
86807-0W071
Disc, Disc Player
[08.2009 - 07.2010] GSE20..LHD..6FC TAIWAN SPEC&AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI&MAP DISC(DOP)-WITH; GSE20..LHD..6FC TAIWAN SPEC&AUDIO-AM/FM CD-CHANGER 8SUPERKAER NAVI&MAP DISC(DOP)-WITH |
86807-0W071 |
— | ||
|
86271
|
86271
86807-0W130
Disc, Disc Player
[04.2009 - 08.2009] GSE20..LHD..6FC TAIWAN SPEC&AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI&MAP DISC(DOP)-WITH; GSE20..LHD..6FC TAIWAN SPEC&AUDIO-AM/FM CD-CHANGER 8SUPERKAER NAVI&MAP DISC(DOP)-WITH |
86807-0W130 |
— | ||
|
86271
|
86271
86807-0W220
Disc, Disc Player
[08.2012 - 07.2013] GSE20..LHD TAIWAN SPEC&AUDIO-AM/FM DVD 12SPEAKER; GSE20..LHD TAIWAN SPEC&AUDIO-AM/FM DVD 12SPEAKER&MAP DISC(DOP)-WITH; GSE20..LHD TAIWAN SPEC&AUDIO-AM/FM DVD 8SPEAKER; GSE20..LHD TAIWAN SPEC&AUDIO-AM/FM DVD 8SPEAKER&MAP DISC(DOP)-WITH |
86807-0W220 |
— | ||
|
86271
|
86271
86807-0W221
Disc, Disc Player
[08.2013 - 08.2014] GSE20..LHD TAIWAN SPEC&AUDIO-AM/FM DVD 12SPEAKER; GSE20..LHD TAIWAN SPEC&AUDIO-AM/FM DVD 8SPEAKER |
86807-0W221 |
— | ||
| replacement | |||||
|
86271
|
86271
86807-0W222
Disc, Disc Player
[08.2013 - 08.2014] GSE20..LHD TAIWAN SPEC&AUDIO-AM/FM DVD 12SPEAKER; GSE20..LHD TAIWAN SPEC&AUDIO-AM/FM DVD 8SPEAKER |
86807-0W222 |
— | ||
|
86271
|
86271
86807-0W222
Disc, Disc Player
[09.2014 - 07.2015] GSE20..LHD TAIWAN SPEC&AUDIO-AM/FM DVD 12SPEAKER |
86807-0W222 |
— | ||
|
86424
|
86424
86424-53010
Deck, Dvd
[08.2009 - 08.2012] GSE20..RHD NEW ZEALAND SPEC&AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI; GSE20..RHD NEW ZEALAND SPEC&AUDIO-AM/FM CD-CHANGER 8SUPERKAER NAVI; GSE20..RHD AUSTRALIA SPEC&AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI; GSE20..RHD AUSTRALIA SPEC&AUDIO-A |
86424-53010 |
— | ||
|
86730A
|
86730A
86730-48040
Microphone Assy, Telephone
[04.2009 - 07.2015] GSE20..LHD; GSE20..LHD..6FC TAIWAN SPEC; GSE20..LHD..6FC CHILE SPEC; GSE20..LHD..6FC MICROPHONE & MIKE-AMPLIFIER-WITHOUT |
86730-48040 |
— | ||
|
86804
|
86804
86804-53100
Cover Sub-Assy, Navigation Computer
[04.2009 - 08.2009] GSE20..LHD..6FC TAIWAN SPEC&AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI; GSE20..LHD..6FC TAIWAN SPEC&AUDIO-AM/FM CD-CHANGER 8SUPERKAER NAVI |
86804-53100 |
— | ||
|
86804
|
86804
86804-53150
Cover Sub-Assy, Navigation Computer
[08.2009 - 08.2011] GSE20..LHD..6FC TAIWAN SPEC&AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI; GSE20..LHD..6FC TAIWAN SPEC&AUDIO-AM/FM CD-CHANGER 8SUPERKAER NAVI |
86804-53150 |
— | ||
|
86804
|
86804
86804-53B00
Cover Sub-Assy, Navigation Computer
[08.2011 - 09.2011] GSE20..LHD TAIWAN SPEC&AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI; GSE20..LHD TAIWAN SPEC&AUDIO-AM/FM CD-CHANGER 8SUPERKAER NAVI |
86804-53B00 |
— | ||
| replacement | |||||
|
86804
|
86804
86804-53B01
Cover Sub-Assy, Navigation Computer
[08.2011 - 09.2011] GSE20..LHD TAIWAN SPEC&AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI; GSE20..LHD TAIWAN SPEC&AUDIO-AM/FM CD-CHANGER 8SUPERKAER NAVI |
86804-53B01 |
— | ||
|
86804
|
86804
86804-53B01
Cover Sub-Assy, Navigation Computer
[10.2011 - 08.2012] GSE20..LHD TAIWAN SPEC&AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI; GSE20..LHD TAIWAN SPEC&AUDIO-AM/FM CD-CHANGER 8SUPERKAER NAVI |
86804-53B01 |
— | ||
|
86842
|
86842
86842-53070
Wire, Navigation, No.1
[04.2009 - 08.2012] GSE20..LHD AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI; GSE20..LHD AUDIO-AM/FM CD-CHANGER 8SUPERKAER NAVI |
86842-53070 |
— | ||
|
86842
|
86842
86842-53080
Wire, Navigation, No.1
[04.2009 - 08.2012] GSE20..RHD NEW ZEALAND SPEC&AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI,NO.1; GSE20..RHD NEW ZEALAND SPEC&AUDIO-AM/FM CD-CHANGER 8SUPERKAER NAVI,NO.1; GSE20..RHD AUSTRALIA SPEC&AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI,NO.1; GSE20..RHD AUSTRAL |
86842-53080 |
— | ||
|
86842
|
86842
86842-53090
Wire, Navigation, No.1
[04.2009 - 08.2012] GSE20..RHD NEW ZEALAND SPEC&AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI,NO.2; GSE20..RHD NEW ZEALAND SPEC&AUDIO-AM/FM CD-CHANGER 8SUPERKAER NAVI,NO.2; GSE20..RHD AUSTRALIA SPEC&AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI,NO.2; GSE20..RHD AUSTRAL |
86842-53090 |
— | ||
|
86842
|
86842
86842-53200 Wire, Navigation, No.1[08.2012 - 08.2014] GSE20..LHD TAIWAN SPEC&AUDIO-AM/FM DVD 8SPEAKER |
86842-53200 |
US $48.78 |
||
|
86860
|
86860
86860-53050 Antenna Assy, NavigationNAVIGATION [04.2009 - 08.2012] GSE20..LHD AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI; GSE20..LHD AUDIO-AM/FM CD-CHANGER 8SUPERKAER NAVI |
86860-53050 |
US $151.42 |
||
|
86860
|
86860
86860-53100
Antenna Assy, Navigation
[08.2012 -] GSE20..LHD AUDIO-AM/FM DVD 12SPEAKER; GSE20..LHD AUDIO-AM/FM DVD 8SPEAKER |
86860-53100 |
— | ||
|
9015350010
|
9015350010
90153-50010 BOLT |
90153-50010 |
from US $0.68 |
||
|
9015950327
|
9015950327
90159-50327 SCREW WWASHER |
90159-50327 |
from US $0.70 |
||
