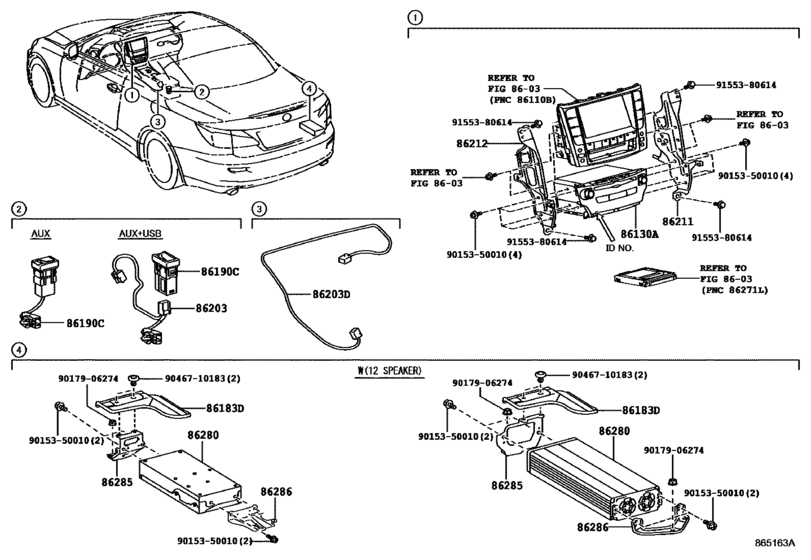

Radio Receiver & Amplifier & Condenser ([08.2012 - ] W(EMV) (1208- )LHD) Diagram Toyota LEXUS IS
- Year
- 2009 - 2015
- Sales region
- Europe
- Frame
- GSE20
- grade
- 250C
- ENGINE
- 4GRFSE
- TRANSMISSION
- ATM
- Model
- IS250
- From
- 04.2009
- To
- 07.2015
- Gear Shift Type
- 6FC
- Vehicle Model
- IS250C
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
86130A
|
86130A
86804-53G00
Receiver Assy, Multi-Media Module
[08.2012 - 08.2014] GSE20..LHD PIONEER,ID=P10365,RUSSIA SPEC&AUDIO-AM/FM DVD 12SPEAKER; GSE20..LHD PIONEER,ID=P10365,UKRAINE OR KAZAKSTAN OR BELARUS SPEC&AUDIO-AM/FM DVD 12SPEAKER |
86804-53G00 |
— | ||
|
86130A
|
86130A
86804-53G10
Receiver Assy, Multi-Media Module
[08.2012 - 08.2014] GSE20..LHD PIONEER,ID=P10366,RUSSIA SPEC&AUDIO-AM/FM DVD 8SPEAKER; GSE20..LHD PIONEER,ID=P10366,UKRAINE OR KAZAKSTAN OR BELARUS SPEC&AUDIO-AM/FM DVD 8SPEAKER |
86804-53G10 |
— | ||
|
86130A
|
86130A
86804-53G20
Receiver Assy, Multi-Media Module
[08.2012 - 07.2015] GSE20..LHD PIONEER,ID=P10406,AUDIO-AM/FM DVD 12SPEAKER |
86804-53G20 |
— | ||
|
86130A
|
86130A
86804-53G30
Receiver Assy, Multi-Media Module
[08.2012 - 07.2015] GSE20..LHD PIONEER,ID=P10407,AUDIO-AM/FM DVD 8SPEAKER |
86804-53G30 |
— | ||
|
86130A
|
86130A
86804-53G80
Receiver Assy, Multi-Media Module
[08.2012 - 07.2015] GSE20..LHD PIONEER,ID=P10371,TAIWAN SPEC&AUDIO-AM/FM DVD 12SPEAKER |
86804-53G80 |
— | ||
|
86130A
|
86130A
86804-53L40
Receiver Assy, Multi-Media Module
[08.2012 - 08.2014] GSE20..LHD PIONEER,ID=P10372,TAIWAN SPEC&AUDIO-AM/FM DVD 8SPEAKER |
86804-53L40 |
— | ||
|
86130A
|
86130A
86804-53N50
Receiver Assy, Multi-Media Module
[08.2012 - 07.2015] GSE20..LHD PIONEER,ID=P10415,TAIWAN SPEC&F SPORT&AUDIO-AM/FM DVD 12SPEAKER |
86804-53N50 |
— | ||
|
86130A
|
86130A
86804-53N60
Receiver Assy, Multi-Media Module
[08.2012 - 08.2014] GSE20..LHD PIONEER,ID=P10416,TAIWAN SPEC&F SPORT&AUDIO-AM/FM DVD 8SPEAKER |
86804-53N60 |
— | ||
|
86183D
|
86183D
86183-53010 Cover, Audio AmplifierAUDIO AMPLIFIER [04.2009 -] GSE20 |
86183-53010 |
US $20.68 |
||
|
86190C
|
86190C
86190-53030 Adapter Assy, Stereo Jack, No.1[04.2009 - 08.2009] GSE20..RHD NEW ZEALAND SPEC&AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI&AUDIO JACK-MINI JACK; GSE20..RHD NEW ZEALAND SPEC&AUDIO-AM/FM CD-CHANGER 8SUPERKAER NAVI&AUDIO JACK-MINI JACK; GSE20..RHD NEW ZEALAND SPEC&AUDIO JACK-MINI JACK; GSE20.. |
86190-53030 |
US $142.69 |
||
|
86190C
|
86190C
86190-53040 Adapter Assy, Stereo Jack, No.1STEREO JACK, NO.1 [04.2009 - 07.2015] GSE20 |
86190-53040 |
US $113.57 |
||
|
86203
|
86203
86203-53010 Wire, RadioRADIO [04.2009 - 07.2015] GSE20 |
86203-53010 |
US $13.40 |
||
|
86203D
|
86203D
86203-53020
Wire, Stereo Component, No.1
[04.2009 - 07.2015] GSE20..LHD..6FC; GSE20..LHD..6FC TAIWAN SPEC; GSE20..LHD..6FC CHILE SPEC; GSE20..LHD..6FC AUDIO JACK-MINI JACK |
86203-53020 |
— | ||
|
86203D
|
86203D
86203-53210
Wire, Stereo Component, No.1
[08.2012 - 07.2015] GSE20..LHD AUDIO-AM/FM DVD 12SPEAKER; GSE20..LHD AUDIO-AM/FM DVD 8SPEAKER |
86203-53210 |
— | ||
|
86211
|
86211
86211-53030 Bracket, Radio, No.1[04.2009 - 07.2015] GSE20 |
86211-53030 |
US $8.74 |
||
|
86211
|
86211
86211-53070 Bracket, Radio, No.1[08.2012 - 07.2015] GSE20 AUDIO-AM/FM DVD 12SPEAKER; GSE20 AUDIO-AM/FM DVD 8SPEAKER |
86211-53070 |
US $8.74 |
||
|
86212
|
86212
86212-53030 Bracket, Radio, No.2[04.2009 - 07.2015] GSE20 |
86212-53030 |
US $9.32 |
||
|
86212
|
86212
86212-53070 Bracket, Radio, No.2[08.2012 - 07.2015] GSE20 AUDIO-AM/FM DVD 12SPEAKER; GSE20 AUDIO-AM/FM DVD 8SPEAKER |
86212-53070 |
US $8.74 |
||
|
86280
|
86280
86280-0W660
Amplifier Assy, Stereo Component
[04.2009 - 08.2012] GSE20..LHD AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI |
86280-0W660 |
— | ||
|
86280
|
86280
86280-0WB20
Amplifier Assy, Stereo Component
[08.2012 -] GSE20..LHD AUDIO-AM/FM DVD 12SPEAKER |
86280-0WB20 |
— | ||
|
86280
|
86280
86280-53120
Amplifier Assy, Stereo Component
[04.2009 -] GSE20 |
86280-53120 |
— | ||
|
86280
|
86280
86280-53130 Amplifier Assy, Stereo ComponentSTEREO COMPONENT [04.2009 - 08.2012] GSE20 AUDIO-AM/FM CD-CHANGER 8SUPERKAER NAVI |
86280-53130 |
US $1,616.16 |
||
|
86280
|
86280
86280-53200
Amplifier Assy, Stereo Component
[08.2012 -] GSE20 AUDIO-AM/FM DVD 8SPEAKER |
86280-53200 |
— | ||
|
86285
|
86285
86285-53060 Bracket, Amplifier, No.1AMPLIFIER, NO.1 [04.2009 -] GSE20 |
86285-53060 |
US $10.05 |
||
|
86285
|
86285
86285-53070 Bracket, Amplifier, No.1AMPLIFIER, NO.1 [04.2009 - 08.2012] GSE20 AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI |
86285-53070 |
US $9.32 |
||
|
86286
|
86286
86286-53060 Bracket, Amplifier, No.2AMPLIFIER, NO.2 [04.2009 -] GSE20 |
86286-53060 |
US $9.17 |
||
|
86286
|
86286
86286-53070 Bracket, Amplifier, No.2AMPLIFIER, NO.2 [04.2009 - 08.2012] GSE20 AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI |
86286-53070 |
US $8.59 |
||
|
9015350010
|
9015350010
90153-50010 BOLT |
90153-50010 |
US $1.25 |
||
|
9017906274
|
9017906274
90179-06274 Nut |
90179-06274 |
from US $1.25 |
||
|
9046710183
|
9046710183
90467-10183 Clip(For Luggage Compartment Trim Inner Cover) |
90467-10183 |
from US $1.19 |
||
|
9155380614
|
9155380614
91553-80614 BOLT FLANGE |
91553-80614 |
US $1.08 |
