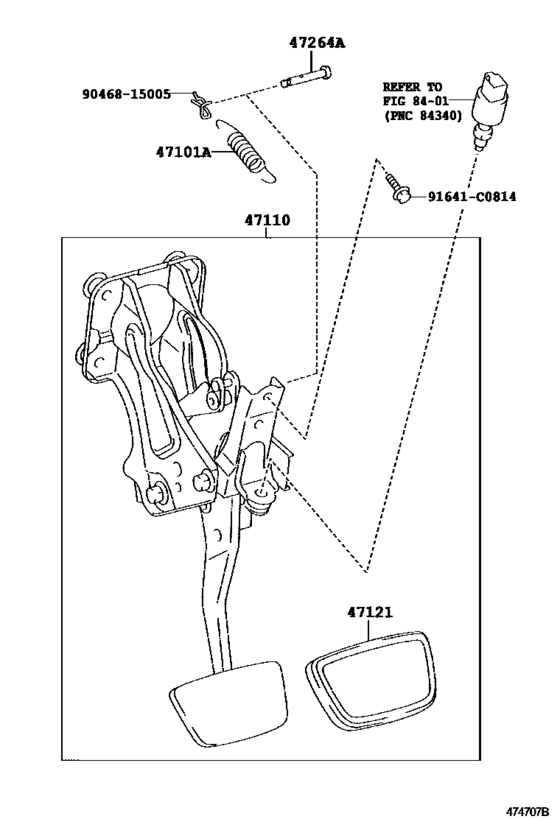

Brake Pedal & Bracket ([08.2005 - ] (0508- )RHD) Diagram Toyota LEXUS IS
- Year
- 2005 - 2010
- Sales region
- Europe
- Frame
- GSE20
- grade
- LUX
- body
- SED
- ENGINE
- 4GRFSE
- TRANSMISSION
- MTM
- Model
- IS250
- From
- 09.2005
- To
- 08.2010
- Vehicle Model
- IS250
- Driver's Position
- RHD
- Fuel Induction
- D4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
47101A
|
47101A
90507-12011 Spring(For Clutch Pedal)[08.2005 - 08.2008] ALE20,GSE20 |
90507-12011 |
US $3.67 |
||
|
47110
|
47110
47110-53190
Support Assy, Brake Pedal
[09.2005 - 08.2008] ALE20,GSE20..RHD..MTM..LUX |
47110-53190 |
— | ||
| replacement | |||||
|
47110
|
47110
47110-53191
Support Assy, Brake Pedal
[09.2005 - 08.2008] ALE20,GSE20..RHD..MTM..LUX |
47110-53191 |
— | ||
|
47110
|
47110
47110-53191
Support Assy, Brake Pedal
[01.2010 - 08.2010] ALE20,GSE20..RHD..MTM |
47110-53191 |
— | ||
|
47110
|
47110
47110-53200
Support Assy, Brake Pedal
[09.2005 - 07.2006] GSE20..RHD..MTM SPORT PACKAGE |
47110-53200 |
— | ||
| replacement | |||||
|
47110
|
47110
47110-53201
Support Assy, Brake Pedal
[09.2005 - 07.2006] GSE20..RHD..MTM SPORT PACKAGE |
47110-53201 |
— | ||
|
47110
|
47110
47110-53201
Support Assy, Brake Pedal
[01.2010 - 08.2010] ALE20,GSE20..RHD..MTM ACCELERATOR PEDAL-ALUMINUM TYPE |
47110-53201 |
— | ||
|
47121
|
47121
31321-12040 Pad, Clutch Pedal[09.2005 - 08.2008] ALE20,GSE20..MTM..LUX |
31321-12040 |
from US $6.81 |
||
|
47121
|
47121
31321-53010 Pad, Clutch Pedal[09.2005 - 07.2006] GSE20..MTM SPORT PACKAGE |
31321-53010 |
from US $30.20 |
||
|
47264A
|
47264A
90249-06180 Pin(For Push Rod)[08.2005 - 08.2008] ALE20,GSE20 |
90249-06180 |
US $0.96 |
||
|
91641C0814
|
91641C0814
91641-C0814 BOLTWWASHER |
91641-C0814 |
US $1.65 |
||
|
9046815005
|
9046815005
90468-15005 CLIP |
90468-15005 |
US $1.97 |
||
