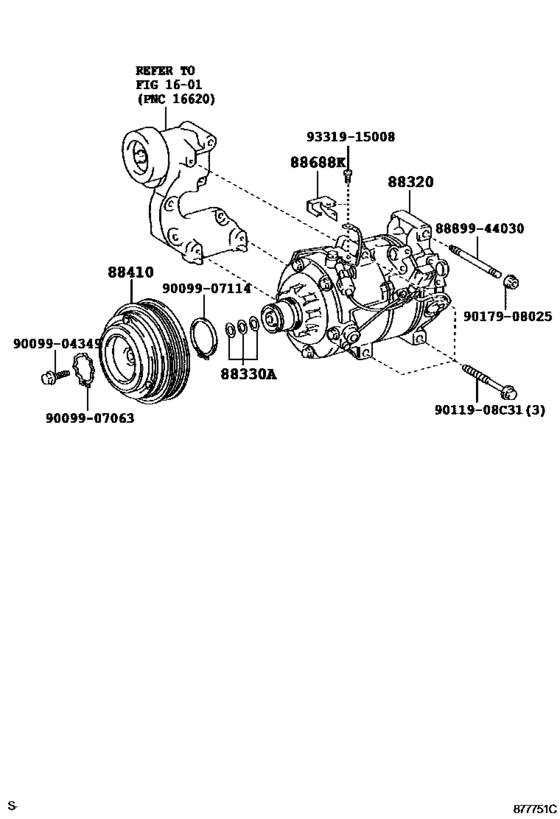

Heating & Air Conditioning - Compressor ([08.2005 - ] (0508- )GSE2#) Diagram Toyota LEXUS IS
- Year
- 2005 - 2013
- Sales region
- Europe
- Frame
- GSE20
- grade
- LUX
- body
- SED
- ENGINE
- 4GRFSE
- TRANSMISSION
- ATM
- Model
- IS250
- From
- 08.2005
- To
- 04.2013
- Vehicle Model
- IS250
- Driver's Position
- RHD
- Fuel Induction
- D4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88320
|
88320
88320-3A270
Compressor Assy, Cooler
[08.2005 - 12.2005] GSE20 |
88320-3A270 |
— | ||
|
88320
|
88320
88320-3A300 Compressor Assy, Cooler[12.2005 - 08.2008] GSE20 |
88320-3A300 |
from US $883.29 |
||
|
88330A
|
88330A
88335-14020 Washer[08.2005 - 08.2008] GSE20 |
88335-14020 |
from US $1.24 |
||
|
88410
|
88410
88410-3A280 Clutch Assy, Magnet[08.2005 - 12.2005] GSE20 |
88410-3A280 |
from US $512.81 |
||
|
88410
|
88410
88410-3A290 Clutch Assy, Magnet[12.2005 - 08.2008] GSE20 |
88410-3A290 |
from US $366.49 |
||
|
88688K
|
88688K
88688-33460
Bracket, Cooler Compressor
[12.2005 - 08.2008] GSE20 |
88688-33460 |
— | ||
|
9011908C31
|
9011908C31
90119-08C31 New Genuine Part |
90119-08C31 |
US $5.24 |
||
|
8889944030
|
8889944030
88899-44030
Cover, Evaporator
|
88899-44030 |
— | ||
|
9009904349
|
9009904349
90099-04349 Bolt, Magnet Clutch Setting |
90099-04349 |
from US $0.70 |
||
|
9009907063
|
9009907063
90099-07063 RING SNAP |
90099-07063 |
from US $0.99 |
||
|
9009907114
|
9009907114
90099-07114 Ring, Snap (For Magnet Clutch) |
90099-07114 |
from US $1.03 |
||
|
9017908025
|
9017908025
90179-08025 Nut, Cap(For Cylinder Head Cover) |
90179-08025 |
from US $0.86 |
||
|
9331915008
|
9331915008
93319-15008 SCREW |
93319-15008 |
US $3.05 |
