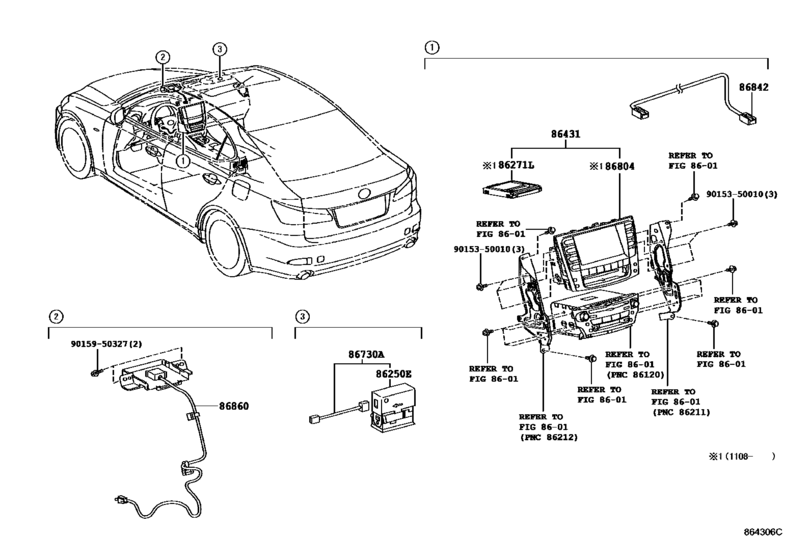

Navigation & Front Monitor Display ([08.2009 - 08.2012] HDD NAVIGATION SYSTEM (0908-1208)) Diagram Toyota LEXUS IS
- Year
- 2005 - 2013
- Sales region
- Europe
- Frame
- GSE20
- grade
- LUX
- body
- SED
- ENGINE
- 4GRFSE
- TRANSMISSION
- ATM
- Model
- IS250
- From
- 08.2005
- To
- 04.2013
- Vehicle Model
- IS250
- Driver's Position
- RHD
- Fuel Induction
- D4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
86250E
|
86250E
86250-52020 Microphone Assy, Amplifier[08.2005 - 08.2008] ALE20,GSE20..RHD AUDIO-AM/FM, DVD-CHANGER 5.1CH 14SPEAKER |
86250-52020 |
US $59.75 |
||
|
86271L
|
86271L
86271-30730
Hard Disc
[08.2012 - 10.2012] GSE21 AUDIO-AM/FM DVD 5.1CH 14SPEAKER; GSE21 AUDIO-AM/FM DVD 13SPEAKER; GSE20..RHD NEW ZEALAND SPEC&AUDIO-AM/FM DVD 5.1CH 14SPEAKER; GSE20..RHD NEW ZEALAND SPEC&AUDIO-AM/FM DVD 13SPEAKER; GSE20..RHD AUSTRALIA SPEC&AUDIO-AM/FM DVD 5.1CH |
86271-30730 |
— | ||
| replacement | |||||
|
86271L
|
86271L
86271-30731
Hard Disc
[08.2012 - 10.2012] GSE21 AUDIO-AM/FM DVD 5.1CH 14SPEAKER; GSE21 AUDIO-AM/FM DVD 13SPEAKER; GSE20..RHD NEW ZEALAND SPEC&AUDIO-AM/FM DVD 5.1CH 14SPEAKER; GSE20..RHD NEW ZEALAND SPEC&AUDIO-AM/FM DVD 13SPEAKER; GSE20..RHD AUSTRALIA SPEC&AUDIO-AM/FM DVD 5.1CH |
86271-30731 |
— | ||
|
86271L
|
86271L
86271-30731
Hard Disc
[10.2012 - 04.2013] GSE21 AUDIO-AM/FM DVD 5.1CH 14SPEAKER; GSE21 AUDIO-AM/FM DVD 13SPEAKER; GSE20..RHD NEW ZEALAND SPEC&AUDIO-AM/FM DVD 5.1CH 14SPEAKER; GSE20..RHD NEW ZEALAND SPEC&AUDIO-AM/FM DVD 13SPEAKER; GSE20..RHD AUSTRALIA SPEC&AUDIO-AM/FM DVD 5.1CH |
86271-30731 |
— | ||
|
86271L
|
86271L
86271-30761
Hard Disc
[08.2012 - 04.2013] GSE20..RHD AUDIO-AM/FM DVD 13SPEAKER; GSE21 SOUTH AFRICA SPEC&AUDIO-AM/FM DVD 13SPEAKER |
86271-30761 |
— | ||
| replacement | |||||
|
86271L
|
86271L
86271-30764
Hard Disc
[08.2012 - 04.2013] GSE20..RHD AUDIO-AM/FM DVD 13SPEAKER; GSE21 SOUTH AFRICA SPEC&AUDIO-AM/FM DVD 13SPEAKER |
86271-30764 |
— | ||
|
86271L
|
86271L
86271-30781
Hard Disc
[08.2012 - 04.2013] GSE20..RHD SINGAPORE SPEC&AUDIO-AM/FM DVD 5.1CH 14SPEAKER; GSE20..RHD SINGAPORE SPEC&AUDIO-AM/FM DVD 13SPEAKER; GSE20..RHD THAILAND SPEC&AUDIO-AM/FM DVD 5.1CH 14SPEAKER; GSE20..RHD THAILAND SPEC&AUDIO-AM/FM DVD 13SPEAKER; GSE20..RHD MA |
86271-30781 |
— | ||
| replacement | |||||
|
86271L
|
86271L
86271-30784
Hard Disc
[08.2012 - 04.2013] GSE20..RHD SINGAPORE SPEC&AUDIO-AM/FM DVD 5.1CH 14SPEAKER; GSE20..RHD SINGAPORE SPEC&AUDIO-AM/FM DVD 13SPEAKER; GSE20..RHD THAILAND SPEC&AUDIO-AM/FM DVD 5.1CH 14SPEAKER; GSE20..RHD THAILAND SPEC&AUDIO-AM/FM DVD 13SPEAKER; GSE20..RHD MA |
86271-30784 |
— | ||
|
86271L
|
86271L
86271-30851
Hard Disc
[08.2012 - 04.2013] GSE20..RHD HONG KONG SPEC&AUDIO-AM/FM DVD 5.1CH 14SPEAKER; GSE20..RHD HONG KONG SPEC&AUDIO-AM/FM DVD 13SPEAKER |
86271-30851 |
— | ||
|
86431
|
86431
86431-53370
Display, Display & Navigation Module
[08.2009 - 09.2009] GSE20..RHD..ATM DENSO,AUDIO-AM/FM, DVD-CHANGER 5.1CH 14SPEAKER&EMV & NAVIGATION SYSTEM-WITH(HDD NA VIGATION); GSE20..RHD DENSO,AUDIO-AM/FM, CD-CHANGER 13SPEAKER NAVIGATION&EMV & NAVIGATION SYSTEM-WITH(HD D NAVIGATION) |
86431-53370 |
— | ||
| replacement | |||||
|
86431
|
86431
86431-53372
Display, Display & Navigation Module
[08.2009 - 09.2009] GSE20..RHD..ATM DENSO,AUDIO-AM/FM, DVD-CHANGER 5.1CH 14SPEAKER&EMV & NAVIGATION SYSTEM-WITH(HDD NA VIGATION); GSE20..RHD DENSO,AUDIO-AM/FM, CD-CHANGER 13SPEAKER NAVIGATION&EMV & NAVIGATION SYSTEM-WITH(HD D NAVIGATION) |
86431-53372 |
— | ||
|
86431
|
86431
86431-53371
Display, Display & Navigation Module
[09.2009 - 08.2010] GSE20..RHD..ATM DENSO,AUDIO-AM/FM, DVD-CHANGER 5.1CH 14SPEAKER&EMV & NAVIGATION SYSTEM-WITH(HDD NA VIGATION); GSE20..RHD DENSO,AUDIO-AM/FM, CD-CHANGER 13SPEAKER NAVIGATION&EMV & NAVIGATION SYSTEM-WITH(HD D NAVIGATION) |
86431-53371 |
— | ||
| replacement | |||||
|
86431
|
86431
86431-53372
Display, Display & Navigation Module
[09.2009 - 08.2010] GSE20..RHD..ATM DENSO,AUDIO-AM/FM, DVD-CHANGER 5.1CH 14SPEAKER&EMV & NAVIGATION SYSTEM-WITH(HDD NA VIGATION); GSE20..RHD DENSO,AUDIO-AM/FM, CD-CHANGER 13SPEAKER NAVIGATION&EMV & NAVIGATION SYSTEM-WITH(HD D NAVIGATION) |
86431-53372 |
— | ||
|
86431
|
86431
86431-53372
Display, Display & Navigation Module
[08.2010 - 08.2011] GSE20..RHD DENSO,AUDIO-AM/FM, CD-CHANGER 13SPEAKER NAVIGATION&EMV & NAVIGATION SYSTEM-WITH(HD D NAVIGATION) |
86431-53372 |
— | ||
|
86431
|
86431
86431-53890
Display, Display & Navigation Module
[08.2011 - 12.2011] GSE21 DENSO,SOUTH AFRICA SPEC&AUDIO-AM/FM, CD-CHANGER 13SPEAKER NAVIGATION&EMV & NAVIGAT ION SYSTEM-WITH(HDD NAVIGATION); GSE20..RHD DENSO,AUDIO-AM/FM, CD-CHANGER 13SPEAKER NAVIGATION&EMV & NAVIGATION SYSTEM-WITH(HD D NAVIGATION) |
86431-53890 |
— | ||
| replacement | |||||
|
86431
|
86431
86431-53892
Display, Display & Navigation Module
[08.2011 - 12.2011] GSE21 DENSO,SOUTH AFRICA SPEC&AUDIO-AM/FM, CD-CHANGER 13SPEAKER NAVIGATION&EMV & NAVIGAT ION SYSTEM-WITH(HDD NAVIGATION); GSE20..RHD DENSO,AUDIO-AM/FM, CD-CHANGER 13SPEAKER NAVIGATION&EMV & NAVIGATION SYSTEM-WITH(HD D NAVIGATION) |
86431-53892 |
— | ||
|
86431
|
86431
86431-53891
Display, Display & Navigation Module
[01.2012 - 07.2012] GSE21 DENSO,SOUTH AFRICA SPEC&AUDIO-AM/FM, CD-CHANGER 13SPEAKER NAVIGATION&EMV & NAVIGAT ION SYSTEM-WITH(HDD NAVIGATION); GSE20..RHD DENSO,AUDIO-AM/FM, CD-CHANGER 13SPEAKER NAVIGATION&EMV & NAVIGATION SYSTEM-WITH(HD D NAVIGATION) |
86431-53891 |
— | ||
| replacement | |||||
|
86431
|
86431
86431-53892
Display, Display & Navigation Module
[01.2012 - 07.2012] GSE21 DENSO,SOUTH AFRICA SPEC&AUDIO-AM/FM, CD-CHANGER 13SPEAKER NAVIGATION&EMV & NAVIGAT ION SYSTEM-WITH(HDD NAVIGATION); GSE20..RHD DENSO,AUDIO-AM/FM, CD-CHANGER 13SPEAKER NAVIGATION&EMV & NAVIGATION SYSTEM-WITH(HD D NAVIGATION) |
86431-53892 |
— | ||
|
86431
|
86431
86431-53892
Display, Display & Navigation Module
[07.2012 - 08.2012] GSE21 DENSO,SOUTH AFRICA SPEC&AUDIO-AM/FM, CD-CHANGER 13SPEAKER NAVIGATION&EMV & NAVIGAT ION SYSTEM-WITH(HDD NAVIGATION); GSE20..RHD DENSO,AUDIO-AM/FM, CD-CHANGER 13SPEAKER NAVIGATION&EMV & NAVIGATION SYSTEM-WITH(HD D NAVIGATION) |
86431-53892 |
— | ||
|
86730A
|
86730A
86730-53010 Microphone Assy, Telephone[08.2005 - 08.2008] ALE20,GSE20..RHD AUDIO-AM/FM, DVD-CHANGER 5.1CH 14SPEAKER |
86730-53010 |
US $101.92 |
||
|
86730A
|
86730A
86730-53050 Microphone Assy, TelephoneTELEPHONE [08.2009 - 08.2010] ALE20,GSE20..RHD; GSE20..RHD CAR TELEPHONE-WITHOUT |
86730-53050 |
US $94.64 |
||
|
86804
|
86804
86804-53430
Cover Sub-Assy, Navigation Computer
[08.2009 - 08.2010] GSE20..RHD..ATM NEW ZEALAND SPEC&AUDIO-AM/FM, DVD-CHANGER 5.1CH 14SPEAKER&EMV & NAVIGATION SYSTEM- WITH(DVD NAVIGATION); GSE20..RHD NEW ZEALAND SPEC&AUDIO-AM/FM, CD-CHANGER 13SPEAKER NAVIGATION&EMV & NAVIGATION SYS TEM-WITH(DVD NAVIGAT |
86804-53430 |
— | ||
|
86804
|
86804
86804-53590
Cover Sub-Assy, Navigation Computer
[08.2010 - 08.2011] GSE20..RHD SINGAPORE SPEC&AUDIO-AM/FM, DVD-CHANGER 5.1CH 14SPEAKER&EMV & NAVIGATION SYSTEM-WI TH(DVD NAVIGATION); GSE20..RHD SINGAPORE SPEC&AUDIO-AM/FM, CD-CHANGER 13SPEAKER NAVIGATION&EMV & NAVIGATION SYSTE M-WITH(DVD NAVIGATION); GSE |
86804-53590 |
— | ||
|
86804
|
86804
86804-53610
Cover Sub-Assy, Navigation Computer
[08.2010 - 08.2011] GSE20..RHD HONG KONG SPEC&AUDIO-AM/FM, DVD-CHANGER 5.1CH 14SPEAKER&EMV & NAVIGATION SYSTEM-WI TH(DVD NAVIGATION); GSE20..RHD HONG KONG SPEC&AUDIO-AM/FM, CD-CHANGER 13SPEAKER NAVIGATION&EMV & NAVIGATION SYSTE M-WITH(DVD NAVIGATION) |
86804-53610 |
— | ||
|
86804
|
86804
86804-53810
Cover Sub-Assy, Navigation Computer
[08.2011 - 08.2012] GSE20..RHD NEW ZEALAND SPEC&AUDIO-AM/FM, DVD-CHANGER 5.1CH 14SPEAKER&EMV & NAVIGATION SYSTEM- WITH(DVD NAVIGATION); GSE20..RHD NEW ZEALAND SPEC&AUDIO-AM/FM, CD-CHANGER 13SPEAKER NAVIGATION&EMV & NAVIGATION SYS TEM-WITH(DVD NAVIGATION); |
86804-53810 |
— | ||
|
86804
|
86804
86804-53860
Cover Sub-Assy, Navigation Computer
[08.2011 - 08.2012] GSE20..RHD SINGAPORE SPEC&AUDIO-AM/FM, DVD-CHANGER 5.1CH 14SPEAKER&EMV & NAVIGATION SYSTEM-WI TH(DVD NAVIGATION); GSE20..RHD SINGAPORE SPEC&AUDIO-AM/FM, CD-CHANGER 13SPEAKER NAVIGATION&EMV & NAVIGATION SYSTE M-WITH(DVD NAVIGATION); GSE |
86804-53860 |
— | ||
|
86804
|
86804
86804-53880
Cover Sub-Assy, Navigation Computer
[08.2011 - 08.2012] GSE20..RHD HONG KONG SPEC&AUDIO-AM/FM, DVD-CHANGER 5.1CH 14SPEAKER&EMV & NAVIGATION SYSTEM-WI TH(DVD NAVIGATION); GSE20..RHD HONG KONG SPEC&AUDIO-AM/FM, CD-CHANGER 13SPEAKER NAVIGATION&EMV & NAVIGATION SYSTE M-WITH(DVD NAVIGATION) |
86804-53880 |
— | ||
|
86842
|
86842
86842-53040
Wire, Navigation, No.1
[08.2005 - 08.2008] GSE20..RHD AUSTRALIA SPEC&AUDIO-AM/FM, DVD-CHANGER 5.1CH 14SPEAKER,NO.1; ALE20,GSE20..RHD AUDIO-AM/FM, DVD-CHANGER 5.1CH 14SPEAKER,NO.1 |
86842-53040 |
— | ||
|
86842
|
86842
86842-53050
Wire, Navigation, No.1
[08.2005 - 08.2008] GSE20..RHD AUSTRALIA SPEC&AUDIO-AM/FM, DVD-CHANGER 5.1CH 14SPEAKER,NO.2; ALE20,GSE20 AUDIO-AM/FM, DVD-CHANGER 5.1CH 14SPEAKER,NO.2 |
86842-53050 |
— | ||
|
86842
|
86842
86842-53080
Wire, Navigation, No.1
[08.2009 - 08.2010] GSE20..RHD..ATM NEW ZEALAND SPEC&AUDIO-AM/FM, DVD-CHANGER 5.1CH 14SPEAKER&EMV & NAVIGATION SYSTEM- WITH(DVD NAVIGATION),NO.1; GSE20..RHD NEW ZEALAND SPEC&AUDIO-AM/FM, CD-CHANGER 13SPEAKER NAVIGATION&EMV & NAVIGATION SYS TEM-WITH(DVD NA |
86842-53080 |
— | ||
|
86842
|
86842
86842-53090
Wire, Navigation, No.1
[08.2009 - 08.2010] GSE20..RHD..ATM NEW ZEALAND SPEC&AUDIO-AM/FM, DVD-CHANGER 5.1CH 14SPEAKER&EMV & NAVIGATION SYSTEM- WITH(DVD NAVIGATION),NO.2; GSE20..RHD NEW ZEALAND SPEC&AUDIO-AM/FM, CD-CHANGER 13SPEAKER NAVIGATION&EMV & NAVIGATION SYS TEM-WITH(DVD NA |
86842-53090 |
— | ||
|
86842
|
86842
86842-53100
Wire, Navigation, No.1
[08.2009 - 08.2010] ALE20..RHD;GSE20..RHD..ATM AUDIO-AM/FM, DVD-CHANGER 5.1CH 14SPEAKER&EMV & NAVIGATION SYSTEM-WITH(HDD NAVIGATI ON); ALE20,GSE20..RHD AUDIO-AM/FM, CD-CHANGER 13SPEAKER NAVIGATION&EMV & NAVIGATION SYSTEM-WITH(HDD NAVI GATION) |
86842-53100 |
— | ||
|
86842
|
86842
86842-53200 Wire, Navigation, No.1[08.2012 - 04.2013] GSE21;GSE20..LHD AUDIO-AM/FM DVD 5.1CH 14SPEAKER; GSE2# AUDIO-AM/FM DVD 13SPEAKER; GSE20..LHD LATIN AMERICA SPEC&AUDIO-AM/FM DVD 13SPEAKER; GSE20..RHD NEW ZEALAND SPEC&AUDIO-AM/FM DVD 5.1CH 14SPEAKER; GSE20..RHD HONG KONG SPEC&AUDIO-AM |
86842-53200 |
US $48.78 |
||
|
86860
|
86860
86860-53040
Antenna Assy, Navigation
[08.2005 - 08.2008] ALE20,GSE20..RHD AUDIO-AM/FM, DVD-CHANGER 5.1CH 14SPEAKER |
86860-53040 |
— | ||
|
86860
|
86860
86860-53090
Antenna Assy, Navigation
[08.2012 -] GSE21 AUDIO-AM/FM DVD 5.1CH 14SPEAKER; GSE2#..RHD AUDIO-AM/FM DVD 13SPEAKER; GSE20..RHD NEW ZEALAND SPEC&AUDIO-AM/FM DVD 5.1CH 14SPEAKER; GSE20..RHD HONG KONG SPEC&AUDIO-AM/FM DVD 5.1CH 14SPEAKER; GSE20..RHD SINGAPORE SPEC&AUDIO-AM/FM DVD 5.1C |
86860-53090 |
— | ||
|
9015350010
|
9015350010
90153-50010 BOLT |
90153-50010 |
from US $0.68 |
||
|
9015950327
|
9015950327
90159-50327 SCREW WWASHER |
90159-50327 |
from US $0.70 |
||
