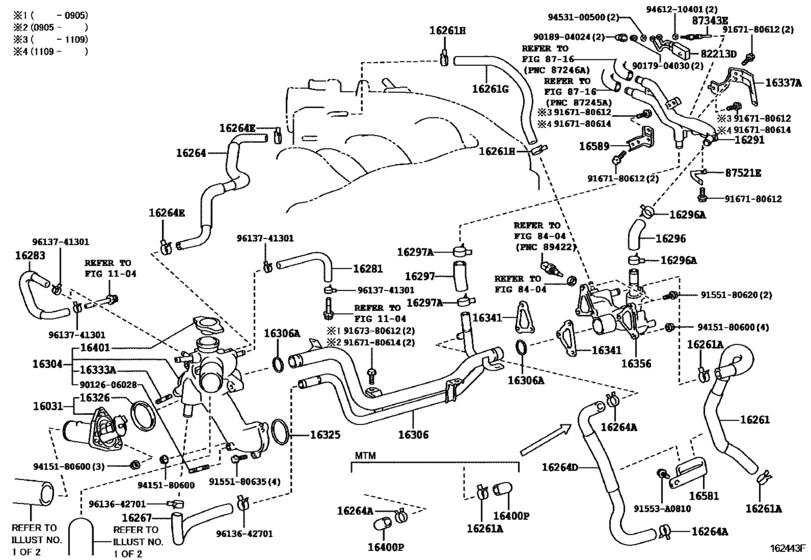

Radiator & Water Outlet ([08.2005 - ] (0508- )2GRFSE,4GRFSE) Diagram Toyota LEXUS IS
- Year
- 2005 - 2013
- Sales region
- Europe
- Frame
- GSE20
- grade
- LUX
- body
- SED
- ENGINE
- 4GRFSE
- TRANSMISSION
- ATM
- Model
- IS250
- From
- 08.2005
- To
- 04.2013
- Vehicle Model
- IS250
- Driver's Position
- RHD
- Fuel Induction
- D4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
16031
|
16031
16031-31020 Water Inlet Sub-Assy, W/thermostat[08.2005 - 08.2008] 4GRFSE..GSE20 |
16031-31020 |
from US $37.30 |
||
|
16261
|
16261
16261-31040 Hose, Water By-Pass[08.2005 - 08.2008] 4GRFSE..GSE20..ATM |
16261-31040 |
from US $15.09 |
||
|
16261A
|
16261A
96136-42101 Clip, Hose(For Radiator Hose Sub-Assy)[09.2008 - 08.2010] 4GRFSE..GSE20..ATM |
96136-42101 |
from US $2.85 |
||
|
16261A
|
16261A
96136-52101 Clip(For Ventilation Hose)[08.2005 - 08.2008] 4GRFSE..GSE20..ATM |
96136-52101 |
from US $2.37 |
||
|
16261G
|
16261G
16261-31071 Hose, Water By-Pass, No.1[08.2005 - 08.2008] 4GRFSE..GSE20 |
16261-31071 |
US $8.42 |
||
|
16261H
|
16261H
96137-51501 Clip(For Water By-Pass Hose Assy)[08.2005 - 08.2008] 4GRFSE..GSE20 |
96137-51501 |
US $2.15 |
||
|
16264
|
16264
16264-31060 Hose, Water By-Pass, No.2[08.2005 - 08.2008] 4GRFSE..GSE20 |
16264-31060 |
US $18.05 |
||
| replacement | |||||
|
16264
|
16264
16264-31120 Hose, Water By-Pass, No.2[08.2005 - 08.2008] 4GRFSE..GSE20 |
16264-31120 |
from US $16.11 |
||
|
16264
|
16264
16264-31120 Hose, Water By-Pass, No.2[11.2011 -] 2GRFSE,4GRFSE..GSE2# |
16264-31120 |
from US $16.11 |
||
|
16264A
|
16264A
96136-42101 Clip, Hose(For Radiator Hose Sub-Assy)[09.2008 - 08.2010] 4GRFSE..GSE20..ATM |
96136-42101 |
from US $2.85 |
||
|
16264A
|
16264A
96136-52101 Clip(For Ventilation Hose)[08.2005 - 08.2008] 4GRFSE..GSE20..ATM |
96136-52101 |
from US $2.37 |
||
|
16264D
|
16264D
16264-31030 Hose, Water By-Pass, No.2[08.2005 - 08.2008] 4GRFSE..GSE20..ATM |
16264-31030 |
from US $17.42 |
||
|
16264E
|
16264E
96137-51501 Clip(For Water By-Pass Hose Assy)[08.2005 - 08.2008] 4GRFSE..GSE20 |
96137-51501 |
US $2.15 |
||
|
16267
|
16267
16267-31021 Hose, Water By-Pass, No.3[08.2005 - 08.2008] 4GRFSE..GSE20 |
16267-31021 |
from US $14.23 |
||
|
16281
|
16281
16281-31021 Hose, Water By-Pass, No.4[08.2005 - 08.2008] 4GRFSE..GSE20 |
16281-31021 |
from US $5 |
||
|
16283
|
16283
16283-31010 Hose, Water By-Pass, No.6[08.2005 - 08.2008] 4GRFSE..GSE20 |
16283-31010 |
from US $5 |
||
|
16291
|
16291
16291-31060 Joint, Water Hose[08.2005 - 08.2008] 4GRFSE..GSE20 |
16291-31060 |
US $88.82 |
||
|
16296
|
16296
16296-31030 Hose, Water By-Pass, No.8[08.2005 - 08.2008] 4GRFSE..GSE20 |
16296-31030 |
US $6.81 |
||
|
16296A
|
16296A
96136-42701 Clamp Or Clip, Hose(For Water By-Pass Hose)[08.2005 - 08.2008] 4GRFSE..GSE20 |
96136-42701 |
from US $3.25 |
||
|
16297
|
16297
16297-31030
Hose, Water By-Pass, No.9
[08.2005 - 08.2008] 4GRFSE..GSE20 |
16297-31030 |
— | ||
| replacement | |||||
|
16297
|
16297
16297-31031 Hose, Water By-Pass, No.9[08.2005 - 08.2008] 4GRFSE..GSE20 |
16297-31031 |
US $8.42 |
||
|
16297
|
16297
16297-31031 Hose, Water By-Pass, No.9[01.2011 -] 2GRFSE,4GRFSE..GSE2# |
16297-31031 |
US $8.42 |
||
|
16297A
|
16297A
96136-42701 Clamp Or Clip, Hose(For Water By-Pass Hose)[08.2005 - 08.2008] 4GRFSE..GSE20 |
96136-42701 |
from US $3.25 |
||
|
16304
|
16304
16304-31032 Outlet Sub-Assy, Water[08.2005 - 09.2006] 4GRFSE..GSE20 |
16304-31032 |
US $179.09 |
||
| replacement | |||||
|
16304
|
16304
16304-31037 Outlet Sub-Assy, Water[08.2005 - 09.2006] 4GRFSE..GSE20 |
16304-31037 |
from US $89.68 |
||
|
16304
|
16304
16304-31033 Outlet Sub-Assy, Water[09.2006 - 08.2008] 4GRFSE..GSE20 |
16304-31033 |
US $147.06 |
||
| replacement | |||||
|
16304
|
16304
16304-31037 Outlet Sub-Assy, Water[09.2006 - 08.2008] 4GRFSE..GSE20 |
16304-31037 |
from US $89.68 |
||
|
16304
|
16304
16304-31034 Outlet Sub-Assy, Water[09.2011 - 08.2012] 2GRFSE,4GRFSE..GSE2# |
16304-31034 |
US $147.06 |
||
| replacement | |||||
|
16304
|
16304
16304-31037 Outlet Sub-Assy, Water[09.2011 - 08.2012] 2GRFSE,4GRFSE..GSE2# |
16304-31037 |
from US $89.68 |
||
|
16304
|
16304
16304-31035 Outlet Sub-Assy, Water[08.2012 -] 2GRFSE,4GRFSE..GSE2# |
16304-31035 |
US $122.30 |
||
| replacement | |||||
|
16304
|
16304
16304-31037 Outlet Sub-Assy, Water[08.2012 -] 2GRFSE,4GRFSE..GSE2# |
16304-31037 |
from US $89.68 |
||
|
16306
|
16306
16306-31030
Pipe Sub-Assy, Water Outlet
[08.2005 - 12.2005] 4GRFSE..GSE20 |
16306-31030 |
— | ||
| replacement | |||||
|
16306
|
16306
16306-31031 Pipe Sub-Assy, Water Outlet[08.2005 - 12.2005] 4GRFSE..GSE20 |
16306-31031 |
from US $44.71 |
||
|
16306
|
16306
16306-31031 Pipe Sub-Assy, Water Outlet[12.2005 - 04.2008] 4GRFSE..GSE20 |
16306-31031 |
from US $44.71 |
||
|
16306
|
16306
16306-31050
Pipe Sub-Assy, Water Outlet
[04.2008 - 08.2008] 4GRFSE..GSE20 |
16306-31050 |
— | ||
|
16306A
|
16306A
96761-35025 Ring, O(For Water Outlet Pipe)[08.2005 - 08.2008] 4GRFSE..GSE20 |
96761-35025 |
from US $2.47 |
||
|
16325
|
16325
16325-31010 Gasket, Water Inlet Housing, No.1[08.2005 - 08.2008] 4GRFSE..GSE20 |
16325-31010 |
from US $1.14 |
||
|
16326
|
16326
16326-31020 Gasket, Water Inlet Housing, No.2[08.2005 - 08.2008] 4GRFSE..GSE20 |
16326-31020 |
US $1.24 |
||
|
16333A
|
16333A
92122-80618 Bolt, Stud(For Water Outlet Housing)[08.2005 - 08.2008] 4GRFSE..GSE20 |
92122-80618 |
US $0.87 |
||
|
16337A
|
16337A
16337-31010 Stay, Water Outlet[08.2005 - 08.2008] 4GRFSE..GSE20 |
16337-31010 |
US $9.32 |
||
|
16341
|
16341
16341-31010 Gasket, Water Outlet[08.2005 - 08.2008] 4GRFSE..GSE20 |
16341-31010 |
from US $4.60 |
||
|
16356
|
16356
16356-31021 Joint, Water By-Pass, Rear[08.2005 - 08.2008] 4GRFSE..GSE20 |
16356-31021 |
US $96.10 |
||
|
16401
|
16401
16401-31650 Cap Sub-Assy, Radiator[05.2009 - 08.2010] 4GRFSE..GSE20 |
16401-31650 |
from US $16.97 |
||
|
16401
|
16401
16401-31680 Cap Sub-Assy, Radiator[09.2011 - 08.2012] 2GRFSE,4GRFSE..GSE2# |
16401-31680 |
from US $16.31 |
||
|
16401
|
16401
16401-31791 Cap Sub-Assy, Radiator[08.2012 -] 2GRFSE,4GRFSE..GSE2# |
16401-31791 |
from US $16.97 |
||
|
16401
|
16401
16401-75440
Cap Sub-Assy, Radiator
[08.2005 - 08.2008] 4GRFSE..GSE20 |
16401-75440 |
— | ||
| replacement | |||||
|
16401
|
16401
16401-31650 Cap Sub-Assy, Radiator[08.2005 - 08.2008] 4GRFSE..GSE20 |
16401-31650 |
from US $16.97 |
||
|
16581
|
16581
16581-31010 Clamp, Hose(For Water Hose)[08.2005 - 08.2008] 4GRFSE..GSE20..ATM |
16581-31010 |
US $6.55 |
||
|
16589
|
16589
16589-31010 Stay, Pipe Clamp[08.2005 - 08.2008] 4GRFSE..GSE20 |
16589-31010 |
US $5.97 |
||
|
82213D
|
82213D
82213-30060
Wire, Heater Blower
[08.2005 - 08.2008] GSE20 |
82213-30060 |
— | ||
|
87343E
|
87343E
87343-30010 Plug, Water By-Pass Glow[08.2005 - 08.2008] GSE20 |
87343-30010 |
US $28.54 |
||
|
87521E
|
87521E
87521-30020
Bracket,engine Block Heater
[08.2005 - 08.2008] GSE20 |
87521-30020 |
— | ||
|
91553A0810
|
91553A0810
91553-A0810 New Genuine Part |
91553-A0810 |
US $1.02 |
||
|
9012606028
|
9012606028
90126-06028 Bolt, Stud(For Oil Pan) |
90126-06028 |
from US $0.63 |
||
|
9017904030
|
9017904030
90179-04030 Nut, Connecting(For Glow Plug) |
90179-04030 |
US $1.08 |
||
|
9018904024
|
9018904024
90189-04024 Grommet, Screw(For Glow Plug) |
90189-04024 |
from US $0.68 |
||
|
9155180620
|
9155180620
91551-80620 Bolt |
91551-80620 |
from US $0.63 |
||
|
9155180635
|
9155180635
91551-80635 Bolt(For Head To Camshaft Bearing Cap) |
91551-80635 |
from US $0.76 |
||
|
9167180612
|
9167180612
91671-80612 Bolt |
91671-80612 |
from US $0.65 |
||
|
9167180614
|
9167180614
91671-80614 Bolt (For Transmission Control Cable Bracket) |
91671-80614 |
from US $0.63 |
||
|
9167380612
|
9167380612
91673-80612 BOLT FLANGE |
91673-80612 |
US $1.08 |
||
|
9415180600
|
9415180600
94151-80600 Nut, Cap(For Cylinder Head Cover) |
94151-80600 |
from US $0.65 |
||
|
9453100500
|
9453100500
94531-00500 WASHER,WAVE |
94531-00500 |
US $1.93 |
||
|
9461210401
|
9461210401
94612-10401 New Genuine Part |
94612-10401 |
US $1.31 |
||
|
9613642701
|
9613642701
96136-42701 Clamp Or Clip, Hose(For Water By-Pass Hose) |
96136-42701 |
from US $3.25 |
||
|
9613741301
|
9613741301
96137-41301 Clamp Or Clip, Hose(For Water By-Pass Hose) |
96137-41301 |
from US $2.07 |
||
