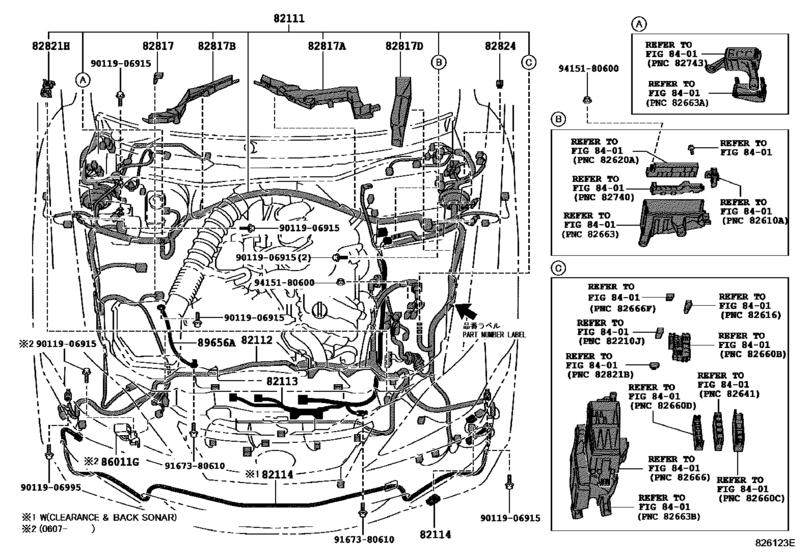

Wiring & Clamp ([08.2005 - ] ENGINE ROOM (0508- )GSE2#..RHD) Diagram Toyota LEXUS IS
- Year
- 2005 - 2013
- Sales region
- Europe
- Frame
- GSE20
- grade
- LUX
- body
- SED
- ENGINE
- 4GRFSE
- TRANSMISSION
- ATM
- Model
- IS250
- From
- 08.2005
- To
- 04.2013
- Vehicle Model
- IS250
- Driver's Position
- RHD
- Fuel Induction
- D4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82111
|
82111
82111-53A30
Wire, Engine Room Main
[08.2005 - 07.2006] GSE20..RHD..ATM; GSE20..RHD..ATM PART NUMBER LABEL=82111-53A30 |
82111-53A30 |
— | ||
|
82111
|
82111
82111-53A31
Wire, Engine Room Main
[07.2006 - 08.2007] GSE20..RHD..ATM; GSE20..RHD..ATM PART NUMBER LABEL=82111-53A31 |
82111-53A31 |
— | ||
|
82111
|
82111
82111-53A32
Wire, Engine Room Main
[08.2007 - 08.2008] GSE20..RHD..ATM; GSE20..RHD..ATM PART NUMBER LABEL=82111-53A32 |
82111-53A32 |
— | ||
|
82111
|
82111
82111-53A33
Wire, Engine Room Main
[08.2008 - 08.2009] GSE20..RHD..ATM; GSE20..RHD..ATM PART NUMBER LABEL=82111-53A33 |
82111-53A33 |
— | ||
|
82111
|
82111
82111-53A34
Wire, Engine Room Main
[08.2009 - 08.2010] GSE20..RHD..ATM; GSE20..RHD..ATM PART NUMBER LABEL=82111-53A34 |
82111-53A34 |
— | ||
|
82111
|
82111
82111-53A35
Wire, Engine Room Main
[08.2010 - 08.2012] GSE20..RHD; GSE20..RHD PART NUMBER LABEL=82111-53A35 |
82111-53A35 |
— | ||
|
82111
|
82111
82111-53A36
Wire, Engine Room Main
[08.2012 -] GSE20..RHD; GSE20..RHD PART NUMBER LABEL=82111-53A36 |
82111-53A36 |
— | ||
|
82111
|
82111
82111-53A40
Wire, Engine Room Main
[08.2005 - 07.2006] GSE20..RHD..ATM NEW ZEALAND SPEC&LUXURY PACKAGE&HEADLAMP-DISCHARGE WITH/AUTO LEVELING; GSE20..RHD..ATM NEW ZEALAND SPEC&SPORT PACKAGE&HEADLAMP-DISCHARGE WITH/AUTO LEVELING; GSE20..RHD..ATM AUSTRALIA SPEC&LUXURY PACKAGE&HEADLAMP-DISCHAR |
82111-53A40 |
— | ||
|
82111
|
82111
82111-53A41
Wire, Engine Room Main
[07.2006 - 08.2007] GSE20..RHD..ATM NEW ZEALAND SPEC&LUXURY PACKAGE&HEADLAMP-DISCHARGE WITH/AUTO LEVELING; GSE20..RHD..ATM NEW ZEALAND SPEC&SPORT PACKAGE&HEADLAMP-DISCHARGE WITH/AUTO LEVELING; GSE20..RHD..ATM AUSTRALIA SPEC&LUXURY PACKAGE&HEADLAMP-DISCHAR |
82111-53A41 |
— | ||
|
82111
|
82111
82111-53A42
Wire, Engine Room Main
[08.2007 - 08.2008] GSE20..RHD..ATM NEW ZEALAND SPEC&LUXURY PACKAGE&HEADLAMP-DISCHARGE WITH/AUTO LEVELING; GSE20..RHD..ATM NEW ZEALAND SPEC&SPORT PACKAGE&HEADLAMP-DISCHARGE WITH/AUTO LEVELING; GSE20..RHD..ATM AUSTRALIA SPEC&LUXURY PACKAGE&HEADLAMP-DISCHAR |
82111-53A42 |
— | ||
|
82111
|
82111
82111-53A43
Wire, Engine Room Main
[08.2008 - 08.2009] GSE20..RHD..ATM LUXURY PACKAGE&HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING); GSE20..RHD..ATM SPORT PACKAGE&HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING); GSE20..RHD..ATM PART NUMBER LABEL=82111-53A43 |
82111-53A43 |
— | ||
|
82111
|
82111
82111-53A44
Wire, Engine Room Main
[08.2009 - 08.2010] GSE20..RHD..ATM LUXURY PACKAGE&HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING); GSE20..RHD..ATM SPORT PACKAGE&HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING); GSE20..RHD..ATM VERSION F&HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING); GSE20..RHD..A |
82111-53A44 |
— | ||
|
82111
|
82111
82111-53A45
Wire, Engine Room Main
[08.2010 - 08.2012] GSE20..RHD HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING); GSE20..RHD PART NUMBER LABEL=82111-53A45 |
82111-53A45 |
— | ||
|
82111
|
82111
82111-53A46
Wire, Engine Room Main
[08.2012 -] GSE20..RHD HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING); GSE20..RHD PART NUMBER LABEL=82111-53A46 |
82111-53A46 |
— | ||
|
82112
|
82112
82112-53040 Wire, Engine Room, No.2[08.2005 - 08.2008] GSE20 |
82112-53040 |
US $663.76 |
||
|
82112
|
82112
82112-53041 Wire, Engine Room, No.2[08.2008 - 08.2010] GSE20 |
82112-53041 |
US $535.81 |
||
|
82112
|
82112
82112-53042 Wire, Engine Room, No.2[08.2010 -] GSE20 |
82112-53042 |
US $476.11 |
||
|
82112
|
82112
82112-53050 Wire, Engine Room, No.2[08.2005 - 08.2008] GSE20..ATM PRE-COLLISION SYSTEM-WITH(MILLI-WAVE RADAR TYPE) |
82112-53050 |
US $643.55 |
||
|
82112
|
82112
82112-53051
Wire, Engine Room, No.2
[08.2008 - 08.2009] GSE20..ATM PRE-COLLISION SYSTEM-WITH(MILLI-WAVE RADAR TYPE) |
82112-53051 |
— | ||
|
82112
|
82112
82112-53052 Wire, Engine Room, No.2[08.2010 -] GSE20..RHD CRUISE CONTROL-WITH(RADAR) |
82112-53052 |
US $476.11 |
||
|
82112
|
82112
82112-53300
Wire, Engine Room, No.2
[08.2010 -] GSE21; GSE20 HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING) |
82112-53300 |
— | ||
|
82112
|
82112
82112-53310
Wire, Engine Room, No.2
[08.2010 -] GSE21 CRUISE CONTROL-WITH(RADAR); GSE20..RHD CRUISE CONTROL-WITH(RADAR)&HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING) |
82112-53310 |
— | ||
|
82113
|
82113
82113-53010 Wire, Engine Room, No.3[08.2005 - 08.2008] ALE20,GSE20..RHD |
82113-53010 |
US $243.60 |
||
|
82114
|
82114
82114-53010 Wire, Engine Room, No.4[08.2005 - 08.2008] ALE20,GSE20..LUX |
82114-53010 |
US $5.39 |
||
|
82114
|
82114
82114-53020 Wire, Engine Room, No.4[08.2005 - 07.2006] ALE20,GSE20..LUX LUXURY PACKAGE; GSE20 SPORT PACKAGE |
82114-53020 |
US $57.29 |
||
|
82114
|
82114
82114-53021 Wire, Engine Room, No.4[08.2008 - 08.2010] ALE20,GSE20 CLEARANCE & BACK SONAR-WITH |
82114-53021 |
US $38.15 |
||
|
82114
|
82114
82114-53022 Wire, Engine Room, No.4[08.2010 - 04.2013] ALE20,GSE2# CLEARANCE & BACK SONAR-WITH |
82114-53022 |
US $39.75 |
||
|
82817
|
82817
82817-12860 Protector, Wiring Harness, No.1[08.2005 - 08.2008] GSE20 |
82817-12860 |
US $1.02 |
||
|
82817A
|
82817A
82817-53150 Protector, Wiring Harness, No.2[08.2005 - 08.2008] ALE20,GSE20..RHD |
82817-53150 |
US $23.73 |
||
|
82817B
|
82817B
82817-30A20 Protector, Wiring Harness, No.1[08.2005 - 08.2008] ALE20,GSE20..RHD |
82817-30A20 |
US $15.43 |
||
|
82817D
|
82817D
82817-53190 Protector, Wiring Harness, No.5[08.2005 - 08.2008] ALE20,GSE20..RHD |
82817-53190 |
US $12.23 |
||
|
82821H
|
82821H
82821-30650 Retainer, Headlamp Harness[08.2005 - 08.2008] GSE20;ALE20..LHD |
82821-30650 |
US $1.08 |
||
|
82824
|
82824
82824-30130 Connector, Wiring Harness[08.2005 - 08.2008] GSE20..RHD; ALE20;GSE20..LHD NO.1; GSE20..RHD..ATM NEW ZEALAND SPEC,NO.1; GSE20..RHD..ATM NEW ZEALAND SPEC&LUXURY PACKAGE&HEADLAMP-DISCHARGE WITH/AUTO LEVELING,NO.1; GSE20..RHD..ATM NEW ZEALAND SPEC&SPORT PACKAGE&HEADLAMP-DISCHARGE WIT |
82824-30130 |
US $3.94 |
||
|
86011G
|
86011G
86516-53010 Condenser[07.2006 - 08.2008] ALE20,GSE20 |
86516-53010 |
US $67.56 |
||
|
89656A
|
89656A
89656-30010 Wire, Power Steering Earth[08.2005 - 08.2008] GSE20 |
89656-30010 |
US $15.38 |
||
|
9011906915
|
9011906915
90119-06915 BOLT WWASHER |
90119-06915 |
from US $0.53 |
||
|
9011906995
|
9011906995
90119-06995 BOLT WWASHER |
90119-06995 |
US $1.08 |
||
|
9167380610
|
9167380610
91673-80610 New Genuine Part |
91673-80610 |
US $0.83 |
||
|
9415180600
|
9415180600
94151-80600 Nut, Cap(For Cylinder Head Cover) |
94151-80600 |
from US $0.65 |
