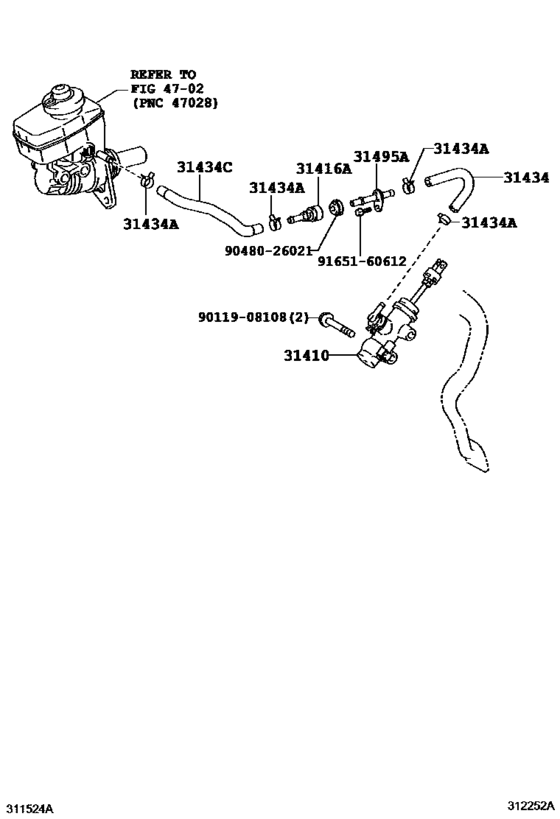

Clutch Master Cylinder ([04.2009 - ] (0904- )RHD..6F) Diagram Toyota LEXUS IS
- Year
- 2009 - 2010
- Sales region
- Europe
- Frame
- GSE20
- grade
- 250C
- ENGINE
- 4GRFSE
- TRANSMISSION
- MTM
- Model
- IS250
- From
- 04.2009
- To
- 08.2010
- Gear Shift Type
- 6F
- Vehicle Model
- IS250C
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
31410
|
31410
31420-53030 Cylinder Assy, Clutch MasterCLUTCH MASTER [04.2009 - 08.2010] GSE20..RHD..6F |
31420-53030 |
US $101.64 |
||
|
31416A
|
31416A
31416-53010 Connector, Clutch HoseCLUTCH HOSE [04.2009 - 08.2010] GSE20..6F |
31416-53010 |
US $12.81 |
||
|
31434
|
31434
31434-53010 Hose, Clutch Reservoir, No.1CLUTCH RESERVOIR [04.2009 - 08.2010] GSE20..RHD..6F |
31434-53010 |
US $31.16 |
||
|
31434A
|
31434A
96133-41500 Clamp Or Clip(For Air Hose, No.5)[04.2009 - 08.2010] GSE20..6F |
96133-41500 |
from US $2.26 |
||
|
31434C
|
31434C
31434-53020
Tube, Clutch Reservoir
[04.2009 - 08.2010] GSE20..RHD..6F |
31434-53020 |
— | ||
|
31495A
|
31495A
31495-53010 Way, Clutch TubeCLUTCH TUBE [04.2009 - 08.2010] GSE20..RHD..6F |
31495-53010 |
US $10.34 |
||
|
9011908108
|
9011908108
90119-08108 Bolt(For Clutch Master Cylinder Setting) |
90119-08108 |
US $2.87 |
||
|
9048026021
|
9048026021
90480-26021
New Genuine Part
|
90480-26021 |
— | ||
|
9165160612
|
9165160612
91651-60612 BOLT |
91651-60612 |
US $1.61 |
