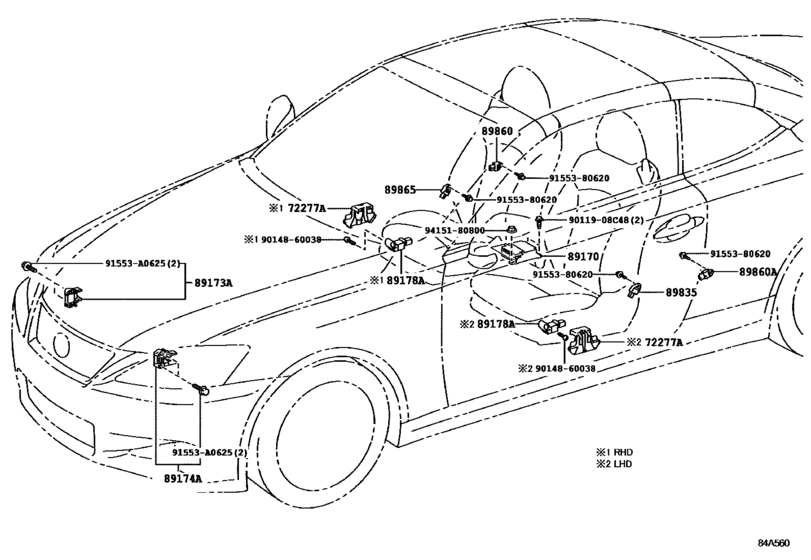

Air Bag ([04.2009 - ] (0904- )) Diagram Toyota LEXUS IS
- Year
- 2009 - 2014
- Sales region
- Europe
- Frame
- GSE20
- grade
- 250C
- ENGINE
- 4GRFSE
- TRANSMISSION
- ATM
- Model
- IS250
- From
- 04.2009
- To
- 11.2014
- Gear Shift Type
- 6FC
- Vehicle Model
- IS250C
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
72277A
|
72277A
72277-33021 Protector, Seat Slide Position Sensor[04.2009 - 07.2015] GSE20 |
72277-33021 |
US $5.53 |
||
|
89170
|
89170
89170-53180 Sensor Assy, Air BagAIR BAG [04.2009 - 08.2010] GSE20..RHD SOUTH AFRICA SPEC |
89170-53180 |
US $736.74 |
||
|
89170
|
89170
89170-53240
Sensor Assy, Air Bag
[04.2009 - 08.2012] GSE20..RHD |
89170-53240 |
— | ||
|
89170
|
89170
89170-53510 Sensor Assy, Air Bag[08.2012 - 08.2013] GSE20..RHD MALAYSIA SPEC |
89170-53510 |
US $612.98 |
||
|
89170
|
89170
89170-53530
Sensor Assy, Air Bag
[08.2012 - 11.2014] GSE20..RHD |
89170-53530 |
— | ||
|
89173A
|
89173A
89173-39375 Sensor, Air Bag, Front Rh[04.2009 - 08.2012] GSE20 |
89173-39375 |
US $110.66 |
||
|
89173A
|
89173A
89173-39455 Sensor, Air Bag, Front Rh[08.2012 -] GSE20 |
89173-39455 |
from US $87.70 |
||
|
89174A
|
89174A
89173-39375 Sensor, Air Bag, Front Rh[04.2009 - 08.2012] GSE20 |
89173-39375 |
US $110.66 |
||
|
89174A
|
89174A
89173-39455 Sensor, Air Bag, Front Rh[08.2012 -] GSE20 |
89173-39455 |
from US $87.70 |
||
|
89178A
|
89178A
89178-33050 Sensor, Seat Position Air Bag[04.2009 - 07.2015] GSE20 |
89178-33050 |
from US $33.83 |
||
|
89835
|
89835
89831-60010 Sensor, Door Side Air Bag, Lh[04.2009 - 08.2012] GSE20 |
89831-60010 |
US $147.06 |
||
|
89835
|
89835
89831-60040 Sensor, Door Side Air Bag, LhSIDE AIR BAG, RH [08.2012 -] GSE20 |
89831-60040 |
US $149.24 |
||
|
89860
|
89860
89831-28020 Sensor, Door Side Air Bag, Lh[04.2009 - 08.2012] GSE20 |
89831-28020 |
from US $108.62 |
||
|
89860
|
89860
89831-75010 Sensor Assy, Side Air Bag, RhSIDE AIR BAG, RH [08.2012 -] GSE20 |
89831-75010 |
from US $98.38 |
||
|
89860A
|
89860A
89831-28020 Sensor, Door Side Air Bag, Lh[04.2009 - 08.2012] GSE20 |
89831-28020 |
from US $108.62 |
||
|
89860A
|
89860A
89831-75010 Sensor Assy, Side Air Bag, RhSIDE AIR BAG, RH [08.2012 -] GSE20 |
89831-75010 |
from US $98.38 |
||
|
89865
|
89865
89831-60010 Sensor, Door Side Air Bag, Lh[04.2009 - 08.2012] GSE20 |
89831-60010 |
US $147.06 |
||
|
89865
|
89865
89831-60040 Sensor, Door Side Air Bag, LhSIDE AIR BAG, RH [08.2012 -] GSE20 |
89831-60040 |
US $149.24 |
||
|
91553A0625
|
91553A0625
91553-A0625 Direct |
91553-A0625 |
US $1.08 |
||
|
9011908C48
|
9011908C48
90119-08C48
Direct
|
90119-08C48 |
— | ||
|
9014860038
|
9014860038
90148-60038 New Genuine Part |
90148-60038 |
US $0.87 |
||
|
9155380620
|
9155380620
91553-80620 BOLT FLANGE |
91553-80620 |
US $1.08 |
||
|
9415180800
|
9415180800
94151-80800 Nut (For Transmission Control Cable) |
94151-80800 |
from US $0.78 |
