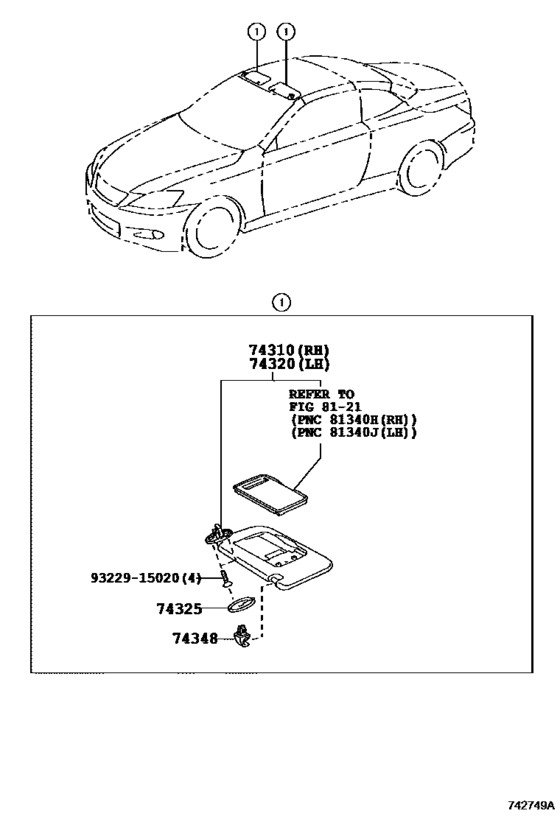

Armrest & Visor ([04.2009 - ] VISOR (0904- )) Diagram Toyota LEXUS IS
- Year
- 2009 - 2014
- Sales region
- Europe
- Frame
- GSE20
- grade
- 250C
- ENGINE
- 4GRFSE
- TRANSMISSION
- ATM
- Model
- IS250
- From
- 04.2009
- To
- 11.2014
- Gear Shift Type
- 6FC
- Vehicle Model
- IS250C
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
74310
|
74310
74310-53260-A0
Visor Assy, Rh
[04.2009 - 11.2014] GSE20..RHD MELLOW WHITE,TRIM0# |
74310-53260-A0 |
— | ||
|
74310
|
74310
74310-53260-B0
Visor Assy, Rh
[04.2009 - 11.2014] GSE20..RHD..6FC LT.GRAY,TRIM1#,2#,3#,4# |
74310-53260-B0 |
— | ||
|
74310
|
74310
74310-53290-A0
Visor Assy, Rh
[04.2009 - 08.2012] GSE20..RHD..6FC MALAYSIA SPEC,MELLOW WHITE,TRIM0# |
74310-53290-A0 |
— | ||
|
74310
|
74310
74310-53290-B0
Visor Assy, Rh
[04.2009 - 08.2012] GSE20..RHD..6FC MALAYSIA SPEC,LT.GRAY,TRIM1#,2#,3#,4# |
74310-53290-B0 |
— | ||
|
74310
|
74310
74310-53660-C0
Visor Assy, Rh
[08.2012 - 11.2014] GSE20..RHD F SPORT,BLACK,TRIM2#,3# |
74310-53660-C0 |
— | ||
|
74310
|
74310
74310-53690-C0
Visor Assy, Rh
[08.2012 - 11.2014] GSE20..RHD NEW ZEALAND SPEC&F SPORT,BLACK,TRIM2#,3#; GSE20..RHD SINGAPORE SPEC&F SPORT,BLACK,TRIM2#,3#; GSE20..RHD AUSTRALIA SPEC&F SPORT,BLACK,TRIM2#,3# |
74310-53690-C0 |
— | ||
|
74320
|
74320
74320-53270-A0
Visor Assy, Lh
[04.2009 - 11.2014] GSE20..RHD MELLOW WHITE,TRIM0# |
74320-53270-A0 |
— | ||
|
74320
|
74320
74320-53270-B0
Visor Assy, Lh
[04.2009 - 11.2014] GSE20..RHD..6FC LT.GRAY,TRIM1#,2#,3#,4# |
74320-53270-B0 |
— | ||
|
74320
|
74320
74320-53290-A0
Visor Assy, Lh
[04.2009 - 08.2012] GSE20..RHD..6FC MALAYSIA SPEC,MELLOW WHITE,TRIM0# |
74320-53290-A0 |
— | ||
| replacement | |||||
|
74320
|
74320
74320-53291-A0
Visor Assy, Lh
[04.2009 - 08.2012] GSE20..RHD..6FC MALAYSIA SPEC,MELLOW WHITE,TRIM0# |
74320-53291-A0 |
— | ||
|
74320
|
74320
74320-53290-B0
Visor Assy, Lh
[04.2009 - 08.2012] GSE20..RHD..6FC MALAYSIA SPEC,LT.GRAY,TRIM1#,2#,3#,4# |
74320-53290-B0 |
— | ||
| replacement | |||||
|
74320
|
74320
74320-53291-B0
Visor Assy, Lh
[04.2009 - 08.2012] GSE20..RHD..6FC MALAYSIA SPEC,LT.GRAY,TRIM1#,2#,3#,4# |
74320-53291-B0 |
— | ||
|
74320
|
74320
74320-53310-A0
Visor Assy, Lh
[04.2009 - 08.2009] GSE20..RHD CYPRUS SPEC,MELLOW WHITE,TRIM0# |
74320-53310-A0 |
— | ||
|
74320
|
74320
74320-53310-B0
Visor Assy, Lh
[04.2009 - 08.2009] GSE20..RHD CYPRUS SPEC,LT.GRAY,TRIM2# |
74320-53310-B0 |
— | ||
|
74320
|
74320
74320-53370-A0
Visor Assy, Lh
[08.2009 - 08.2012] GSE20..RHD CYPRUS SPEC,MELLOW WHITE,TRIM0# |
74320-53370-A0 |
— | ||
|
74320
|
74320
74320-53370-B0
Visor Assy, Lh
[08.2009 - 08.2012] GSE20..RHD..6FC CYPRUS SPEC,LT.GRAY,TRIM1#,2#,3#,4# |
74320-53370-B0 |
— | ||
|
74320
|
74320
74320-53480-C0
Visor Assy, Lh
[08.2012 - 11.2014] GSE20..RHD F SPORT,BLACK,TRIM2#,3# |
74320-53480-C0 |
— | ||
|
74320
|
74320
74320-53500-C0
Visor Assy, Lh
[08.2012 - 11.2014] GSE20..RHD NEW ZEALAND SPEC&F SPORT,BLACK,TRIM2#,3#; GSE20..RHD SINGAPORE SPEC&F SPORT,BLACK,TRIM2#,3#; GSE20..RHD AUSTRALIA SPEC&F SPORT,BLACK,TRIM2#,3# |
74320-53500-C0 |
— | ||
|
74325
|
74325
74317-60020-A2 Cover, Visor Bracket, Rh[04.2009 - 07.2015] GSE20 MELLOW WHITE,TRIM0# |
74317-60020-A2 |
US $2.91 |
||
|
74325
|
74325
74317-60020-B1 Cover, Visor Bracket, Rh[04.2009 - 07.2015] GSE20..6FC LT.GRAY,TRIM1#,2#,3#,4# |
74317-60020-B1 |
US $3.94 |
||
|
74325
|
74325
74317-60020-C0 Cover, Visor Bracket, Rh[08.2012 - 11.2014] GSE20..RHD NEW ZEALAND SPEC&F SPORT,BLACK,TRIM2#,3#; GSE20..RHD SINGAPORE SPEC&F SPORT,BLACK,TRIM2#,3#; GSE20..RHD AUSTRALIA SPEC&F SPORT,BLACK,TRIM2#,3# |
74317-60020-C0 |
US $5.20 |
||
|
74348
|
74348
74348-33040-A2 Holder, Visor[04.2009 - 07.2015] GSE20 MELLOW WHITE,TRIM0# |
74348-33040-A2 |
US $6.26 |
||
|
74348
|
74348
74348-33040-B1 Holder, Visor[04.2009 - 07.2015] GSE20..6FC LT.GRAY,TRIM1#,2#,3#,4# |
74348-33040-B1 |
from US $5.66 |
||
|
74348
|
74348
74348-33040-C0 Holder, VisorVISOR [08.2012 - 11.2014] GSE20..RHD NEW ZEALAND SPEC&F SPORT,BLACK,TRIM2#,3#; GSE20..RHD SINGAPORE SPEC&F SPORT,BLACK,TRIM2#,3#; GSE20..RHD AUSTRALIA SPEC&F SPORT,BLACK,TRIM2#,3# |
74348-33040-C0 |
US $6.81 |
||
|
9322915020
|
9322915020
93229-15020 SCREW |
93229-15020 |
from US $0.72 |
||
