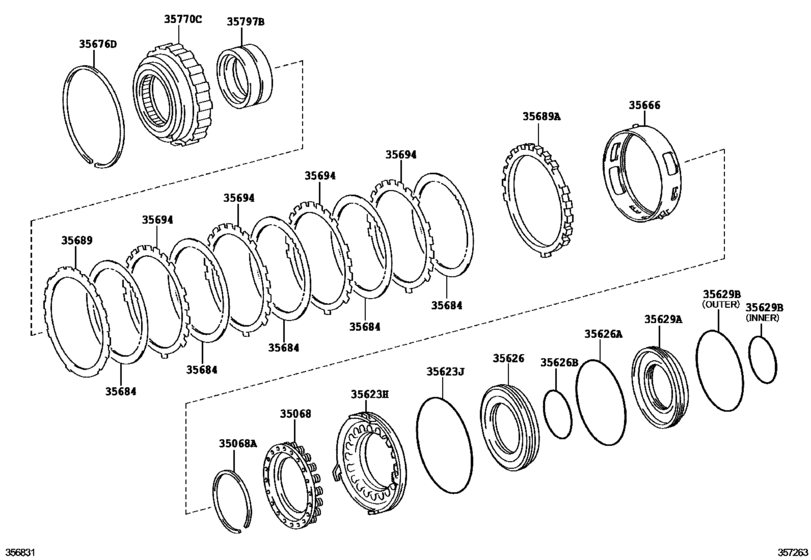

Brake No.3, 1St & Reverse Brake (Atm) ([04.2009 - ] A960E (0904- )6FC) Diagram Toyota LEXUS IS
- Year
- 2009 - 2014
- Sales region
- Europe
- Frame
- GSE20
- grade
- 250C
- ENGINE
- 4GRFSE
- TRANSMISSION
- ATM
- Model
- IS250
- From
- 04.2009
- To
- 11.2014
- Gear Shift Type
- 6FC
- Vehicle Model
- IS250C
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
35068
|
35068
35068-22010 Spring Sub-Assy, 1St & Reverse Brake Return[04.2009 -] GSE20..6FC |
35068-22010 |
US $23.88 |
||
|
35068A
|
35068A
90520-52262 Ring, Shaft Snap (For Underdrive Return Spring)[04.2009 -] GSE20..6FC |
90520-52262 |
US $2.80 |
||
|
35623H
|
35623H
35623-22030 Piston, 1St & Reverse Brake[04.2009 -] GSE20..6FC |
35623-22030 |
US $36.25 |
||
|
35623J
|
35623J
90301-99151 Ring, O (For 1St & Reverse Brake)[04.2009 -] GSE20..6FC |
90301-99151 |
US $2.62 |
||
|
35626
|
35626
35626-22020 Sleeve, Brake Reaction[04.2009 -] GSE20..6FC |
35626-22020 |
US $7.72 |
||
|
35626A
|
35626A
90301-99155 Ring, O (For Brake Piston No.2)[04.2009 -] GSE20..6FC |
90301-99155 |
US $2.62 |
||
|
35626B
|
35626B
90301-69009 Ring (For Brake Reaction Sleeve Inner)[04.2009 -] GSE20..6FC |
90301-69009 |
US $2.62 |
||
|
35629A
|
35629A
35629-22030 Piston, Brake, No.4[04.2009 -] GSE20..6FC |
35629-22030 |
US $24.17 |
||
|
35629B
|
35629B
90301-56007 Ring, O (For Underdrive Clutch Piston)[04.2009 -] GSE20..6FC INNER |
90301-56007 |
US $3.05 |
||
|
35629B
|
35629B
90301-94004 Ring, O (For 1St & Reverse Brake)[04.2009 -] GSE20..6FC OUTER |
90301-94004 |
US $2.62 |
||
|
35666
|
35666
35666-22020 Tube, Brake Apply[04.2009 - 06.2012] GSE20..6FC |
35666-22020 |
US $23.59 |
||
| replacement | |||||
|
35666
|
35666
35666-22030 Tube, Brake Apply[04.2009 - 06.2012] GSE20..6FC |
35666-22030 |
US $17.76 |
||
|
35666
|
35666
35666-22030 Tube, Brake Apply[06.2012 -] GSE20 |
35666-22030 |
US $17.76 |
||
|
35676D
|
35676D
90521-99133 Ring, Hole Snap (For 1St & Reverse Brake Flange)[04.2009 -] GSE20..6FC |
90521-99133 |
US $2.48 |
||
|
35684
|
35684
35684-22010 Disc, Brake, No.4[04.2009 - 10.2012] GSE20..6FC |
35684-22010 |
US $13.98 |
||
| replacement | |||||
|
35684
|
35684
35684-30010 Disc, Brake, No.4[04.2009 - 10.2012] GSE20..6FC |
35684-30010 |
from US $10.48 |
||
|
35684
|
35684
35684-30010 Disc, Brake, No.4[10.2012 -] GSE20 |
35684-30010 |
from US $10.48 |
||
|
35689
|
35689
35689-22020 Flange, Brake, No.4[04.2009 - 03.2014] GSE20..6FC T=1.8 MARK 0 |
35689-22020 |
US $25.48 |
||
|
35689
|
35689
35689-22030 Flange, Brake, No.4[04.2009 - 03.2014] GSE20..6FC T=2.0 MARK 2 |
35689-22030 |
US $25.48 |
||
|
35689
|
35689
35689-22040 Flange, Brake, No.4[04.2009 - 03.2014] GSE20..6FC T=2.2 MARK 4 |
35689-22040 |
US $25.48 |
||
|
35689
|
35689
35689-22050 Flange, Brake, No.4[04.2009 - 03.2014] GSE20..6FC T=2.4 MARK 6 |
35689-22050 |
US $25.48 |
||
|
35689
|
35689
35689-22060 Flange, Brake, No.4[04.2009 - 03.2014] GSE20..6FC T=2.6 MARK 8 |
35689-22060 |
US $25.48 |
||
|
35689
|
35689
35689-22070 Flange, Brake, No.4[04.2009 - 03.2014] GSE20..6FC T=2.8 MARK 10 |
35689-22070 |
US $25.48 |
||
|
35689
|
35689
35689-22080 Flange, Brake, No.4[04.2009 - 03.2014] GSE20..6FC T=3.0 MARK 12 |
35689-22080 |
US $25.48 |
||
|
35689
|
35689
35689-22090 Flange, Brake, No.4[04.2009 - 03.2014] GSE20..6FC T=3.2 MARK 14 |
35689-22090 |
US $25.48 |
||
|
35689
|
35689
35689-22100
Flange, Brake, No.4
[03.2014 -] GSE20 T=1.8 MARK 0 |
35689-22100 |
— | ||
|
35689
|
35689
35689-22110
Flange, Brake, No.4
[03.2014 -] GSE20 T=1.97,MARK 1 |
35689-22110 |
— | ||
|
35689
|
35689
35689-22120
Flange, Brake, No.4
[03.2014 -] GSE20 T=2.11,MARK 3 |
35689-22120 |
— | ||
|
35689
|
35689
35689-22130
Flange, Brake, No.4
[03.2014 -] GSE20 T=2.25,MARK 4 |
35689-22130 |
— | ||
|
35689
|
35689
35689-22140
Flange, Brake, No.4
[03.2014 -] GSE20 T=2.39,MARK 5 |
35689-22140 |
— | ||
|
35689
|
35689
35689-22150
Flange, Brake, No.4
[03.2014 -] GSE20 T=2.53,MARK 7 |
35689-22150 |
— | ||
|
35689
|
35689
35689-22160
Flange, Brake, No.4
[03.2014 -] GSE20 T=2.67,MARK 8 |
35689-22160 |
— | ||
|
35689
|
35689
35689-22170
Flange, Brake, No.4
[03.2014 -] GSE20 T=2.81,MARK10 |
35689-22170 |
— | ||
|
35689
|
35689
35689-22180
Flange, Brake, No.4
[03.2014 -] GSE20 T=2.95,MARK 11 |
35689-22180 |
— | ||
|
35689
|
35689
35689-22190
Flange, Brake, No.4
[03.2014 -] GSE20 T=3.09,MARK 12 |
35689-22190 |
— | ||
|
35689A
|
35689A
35689-22010 Flange, Brake, No.4[04.2009 -] GSE20..6FC |
35689-22010 |
US $32.32 |
||
|
35694
|
35694
35694-22010 Plate, Brake, No.4[04.2009 -] GSE20..6FC |
35694-22010 |
US $5.97 |
||
|
35770C
|
35770C
35770-22070 Clutch Assy, 1Way No.3[04.2009 -] GSE20..6FC |
35770-22070 |
US $410.59 |
||
|
35797B
|
35797B
35797-22030 Race, 1 Way Clutch, Inner[04.2009 -] GSE20..6FC |
35797-22030 |
US $50.67 |
||
