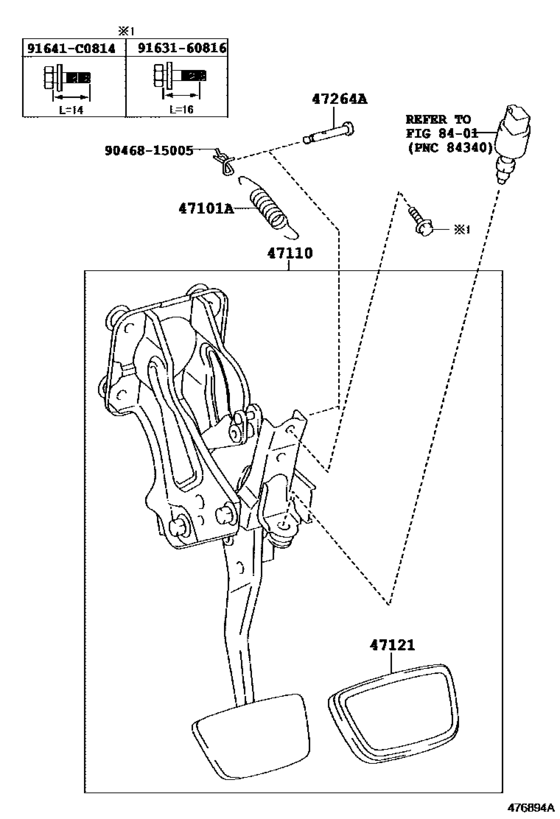

Brake Pedal & Bracket ([04.2009 - ] (0904- )) Diagram Toyota LEXUS IS
- Year
- 2009 - 2014
- Sales region
- Europe
- Frame
- GSE20
- grade
- 250C
- ENGINE
- 4GRFSE
- TRANSMISSION
- ATM
- Model
- IS250
- From
- 04.2009
- To
- 11.2014
- Gear Shift Type
- 6FC
- Vehicle Model
- IS250C
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
47101A
|
47101A
90507-12011 Spring(For Clutch Pedal)[04.2009 -] GSE20 |
90507-12011 |
US $3.67 |
||
|
47110
|
47110
47110-53210 Support Assy, Brake Pedal[04.2009 - 09.2009] GSE20..RHD..6FC |
47110-53210 |
US $125.22 |
||
| replacement | |||||
|
47110
|
47110
47110-53211 Support Assy, Brake PedalBRAKE PEDAL [04.2009 - 09.2009] GSE20..RHD..6FC |
47110-53211 |
US $103.38 |
||
|
47110
|
47110
47110-53211 Support Assy, Brake PedalBRAKE PEDAL [10.2009 - 11.2014] GSE20..RHD..6FC |
47110-53211 |
US $103.38 |
||
|
47110
|
47110
47110-53220 Support Assy, Brake Pedal[04.2009 - 09.2009] GSE20..RHD..6FC ACCELERATOR PEDAL-ALUMINUM TYPE |
47110-53220 |
US $125.22 |
||
| replacement | |||||
|
47110
|
47110
47110-53221 Support Assy, Brake PedalBRAKE PEDAL [04.2009 - 09.2009] GSE20..RHD..6FC ACCELERATOR PEDAL-ALUMINUM TYPE |
47110-53221 |
US $103.38 |
||
|
47110
|
47110
47110-53221 Support Assy, Brake PedalBRAKE PEDAL [10.2009 - 11.2014] GSE20..RHD..6FC ACCELERATOR PEDAL-ALUMINUM TYPE |
47110-53221 |
US $103.38 |
||
|
47121
|
47121
47121-50020 Pad, Brake Pedal[04.2009 - 07.2015] GSE20..6FC |
47121-50020 |
from US $7.26 |
||
|
47121
|
47121
47121-53010 Pad, Brake Pedal[04.2009 - 11.2014] GSE20..RHD..6FC ACCELERATOR PEDAL-ALUMINUM TYPE |
47121-53010 |
from US $41.14 |
||
|
47264A
|
47264A
90249-06180 Pin(For Push Rod)[04.2009 -] GSE20 |
90249-06180 |
US $0.96 |
||
|
91641C0814
|
91641C0814
91641-C0814 BOLTWWASHER |
91641-C0814 |
US $1.65 |
||
|
9046815005
|
9046815005
90468-15005 CLIP |
90468-15005 |
US $1.97 |
||
|
9163160816
|
9163160816
91631-60816 BOLT |
91631-60816 |
from US $1.05 |
||
