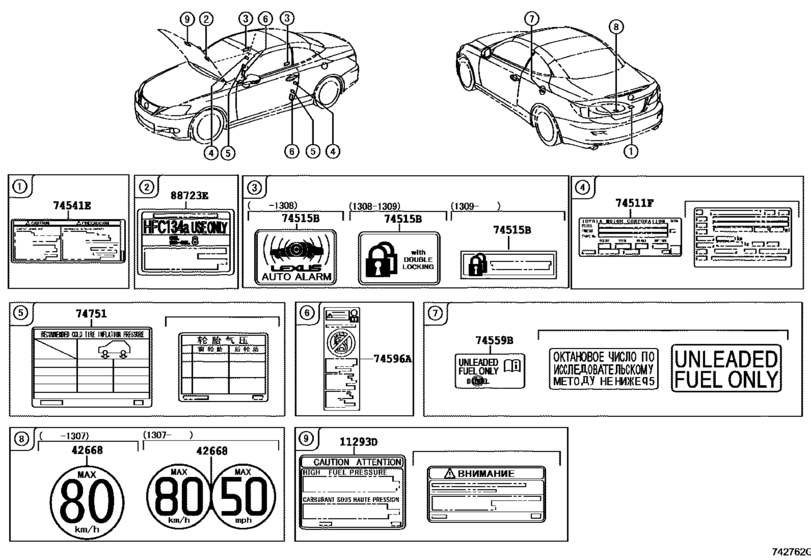

Caution Plate (Exterior & Interior) ([04.2009 - ] (0904- )) Diagram Toyota LEXUS IS
- Year
- 2009 - 2014
- Sales region
- Europe
- Frame
- GSE20
- grade
- 250C
- ENGINE
- 4GRFSE
- TRANSMISSION
- ATM
- Model
- IS250
- From
- 04.2009
- To
- 11.2014
- Gear Shift Type
- 6FC
- Vehicle Model
- IS250C
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11293D
|
11293D
11293-31120 Label, Engine CautionENGINE CAUTION [04.2009 -] 4GRFSE..GSE20 |
11293-31120 |
from US $1.60 |
||
|
42668
|
42668
42668-20020 Label, Compact Spare Tire CautionCOMPACT SPARE TIRE CAUTION [04.2009 - 08.2009] GSE20..LHD RUSSIA SPEC&TIRE & DISC WHEEL-225/40R18+255/40R18 ALUMINUM&SPARE TIRE-TEMPORARY(T1 45/70D17); GSE20..RHD CYPRUS SPEC&TIRE & DISC WHEEL-225/40R18+255/40R18 ALUMINUM&SPARE TIRE-TEMPORARY(T1 45/70D17) |
42668-20020 |
US $1.56 |
||
|
42668
|
42668
42668-42010 Label, Compact Spare Tire Caution[07.2013 - 11.2014] GSE20..RHD |
42668-42010 |
US $3.58 |
||
|
74511F
|
74511F
74511-48020
Label, Name (Identification Laser Label)
[04.2009 - 11.2014] GSE20..RHD *111,REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE&SOUTH AFRICA S PEC |
74511-48020 |
— | ||
|
74511F
|
74511F
74511-48030
Label, Name (Identification Laser Label)
[04.2009 - 08.2013] GSE20..RHD..6FC *111,REGULATION COMPLIANCE LABEL & NAME PLATE-GENERAL NAME PLATE + ADR&MALAYSIA SP EC |
74511-48030 |
— | ||
|
74511F
|
74511F
74511-48050
Label, Name (Identification Laser Label)
[04.2009 - 06.2009] GSE20 *111 |
74511-48050 |
— | ||
|
74511F
|
74511F
74511-60490
Label, Name (Identification Laser Label)
[07.2009 - 07.2015] GSE20 *111 |
74511-60490 |
— | ||
|
74515B
|
74515B
74515-30030 Plate, Theft Warning[08.2013 - 09.2013] GSE20; GSE20..RHD NEW ZEALAND SPEC; GSE20..RHD HONGKONG SPEC; GSE20..RHD SINGAPORE SPEC; GSE20..RHD THAILAND SPEC; GSE20..RHD AUSTRALIA SPEC; GSE20..LHD TAIWAN SPEC; GSE20..LHD CHILE SPEC |
74515-30030 |
US $1.60 |
||
| replacement | |||||
|
74515B
|
74515B
74515-50060 Plate, Theft Warning[08.2013 - 09.2013] GSE20; GSE20..RHD NEW ZEALAND SPEC; GSE20..RHD HONGKONG SPEC; GSE20..RHD SINGAPORE SPEC; GSE20..RHD THAILAND SPEC; GSE20..RHD AUSTRALIA SPEC; GSE20..LHD TAIWAN SPEC; GSE20..LHD CHILE SPEC |
74515-50060 |
US $2.51 |
||
|
74515B
|
74515B
74515-30040 Plate, Theft Warning[04.2009 - 08.2013] GSE20..RHD NEW ZEALAND SPEC; GSE20..RHD..6FC HONGKONG SPEC; GSE20..RHD..6FC SINGAPORE SPEC; GSE20..RHD..6FC THAILAND SPEC; GSE20..RHD AUSTRALIA SPEC; GSE20..LHD..6FC TAIWAN SPEC; GSE20..RHD..6FC MALAYSIA SPEC; GSE20..LHD..6FC CHILE SPE |
74515-30040 |
US $8.60 |
||
|
74515B
|
74515B
74515-30050 Plate, Theft WarningTHEFT WARNING [04.2009 - 08.2013] GSE20 |
74515-30050 |
US $4.37 |
||
|
74515B
|
74515B
74515-50060 Plate, Theft Warning[09.2013 - 11.2014] GSE20..RHD NEW ZEALAND SPEC; GSE20..RHD HONGKONG SPEC; GSE20..RHD SINGAPORE SPEC; GSE20..RHD THAILAND SPEC; GSE20..RHD AUSTRALIA SPEC |
74515-50060 |
US $2.51 |
||
|
74559B
|
74559B
74559-14050 Plate, Fuel Caution[04.2009 - 07.2014] GSE20 |
74559-14050 |
from US $0.70 |
||
| replacement | |||||
|
74559B
|
74559B
74559-01010 Plate, Fuel CautionFUEL INFORMATION [04.2009 - 07.2014] GSE20 |
74559-01010 |
US $12.89 |
||
|
74559B
|
74559B
74559-20140 Plate, Fuel Caution[08.2014 -] GSE20 |
74559-20140 |
from US $0.51 |
||
|
74596A
|
74596A
74596-53010 Label, Side Air Bag CautionSIDE AIR BAG CAUTION [04.2009 - 11.2011] GSE20 |
74596-53010 |
from US $2.89 |
||
|
74596A
|
74596A
74596-53011 Label, Side Air Bag Caution[12.2011 -] GSE20 |
74596-53011 |
from US $3.27 |
||
|
74751
|
74751
42661-53510 Label, Tire Pressure InformationTIRE PRESSURE INFORMATION [04.2009 -] GSE20 |
42661-53510 |
US $1.60 |
||
|
74751
|
74751
42661-53530
Label, Tire Pressure Information
[04.2009 - 08.2012] GSE20..LHD TURKEY SPEC&TIRE & DISC WHEEL-225/45R17+245/45R17 GENERAL COUNTRIES&SPARE TIRE-TEM PORARY(T125/70D17); GSE20..RHD..6FC HONGKONG SPEC&TIRE & DISC WHEEL-225/45R17+245/45R17 GENERAL COUNTRIES&SPARE TIRE-T EMPORARY(T125/70D17); |
42661-53530 |
— | ||
|
74751
|
74751
42661-53550 Label, Tire Pressure InformationTIRE PRESSURE INFORMATION [04.2009 - 08.2012] GSE20..RHD NEW ZEALAND SPEC&TIRE & DISC WHEEL-225/40R18+255/40R18 ALUMINUM&SPARE TIRE-TEMPORA RY(T145/70D17); GSE20..RHD NEW ZEALAND SPEC&SPARE TIRE-TEMPORARY(T125/70D17); GSE20..RHD AUSTRALIA SPEC&TIRE & DISC WHEEL-225/40R18+255/40R18 |
42661-53550 |
US $1.60 |
||
|
74751
|
74751
42661-53A30
Label, Tire Pressure Information
[08.2012 - 11.2014] GSE20..RHD HONGKONG SPEC&TIRE & DISC WHEEL-225/40R18+255/40R18,SUMMER TIRE,ALUMI; GSE20..RHD SINGAPORE SPEC&TIRE & DISC WHEEL-225/40R18+255/40R18,SUMMER TIRE,ALUMI; GSE20..RHD HONGKONG SPEC&TIRE & DISC WHEEL-225/40R18+255/40R18 ALUMINU |
42661-53A30 |
— | ||
|
88723E
|
88723E
88723-28220 Label, Cooler Service CautionCOOLER SERVICE CAUTION [04.2009 -] GSE20 |
88723-28220 |
from US $3.32 |
||
