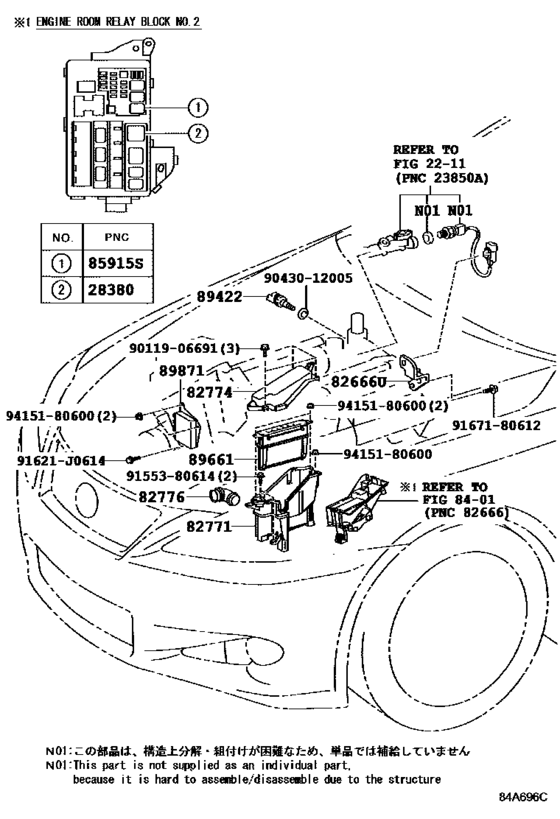

Electronic Fuel Injection System ([04.2009 - ] (0904- )) Diagram Toyota LEXUS IS
- Year
- 2009 - 2014
- Sales region
- Europe
- Frame
- GSE20
- grade
- 250C
- ENGINE
- 4GRFSE
- TRANSMISSION
- ATM
- Model
- IS250
- From
- 04.2009
- To
- 11.2014
- Gear Shift Type
- 6FC
- Vehicle Model
- IS250C
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28380
|
28380
90987-03003 Relay Assy, Fuel Pump[04.2009 - 07.2015] 4GRFSE..GSE20 |
90987-03003 |
from US $23.01 |
||
|
82666U
|
82666U
82666-30780 Holder, Connector[04.2009 -] GSE20 |
82666-30780 |
US $5.82 |
||
|
82771
|
82771
82771-30040 Box, Engine Room Ecu[04.2009 - 07.2015] GSE20 |
82771-30040 |
from US $99.03 |
||
|
82774
|
82774
82774-30050 Cover, Engine Room Ecu[04.2009 -] GSE20 |
82774-30050 |
US $47.03 |
||
|
82776
|
82776
82776-53040 Duct, Engine Room Ecu Outlet[04.2009 -] GSE20 |
82776-53040 |
from US $13 |
||
|
85915S
|
85915S
90987-02027 Relay[04.2009 - 07.2015] GSE20 |
90987-02027 |
from US $47.82 |
||
|
89422
|
89422
89422-33030 Sensor, Water Temperature (For E.f.i.)[04.2009 -] GSE20 |
89422-33030 |
from US $40.49 |
||
|
89661
|
89661
89661-53E70
Computer, Engine Control
[04.2009 - 08.2010] GSE20..6FC |
89661-53E70 |
— | ||
|
89661
|
89661
89661-53E80
Computer, Engine Control
[04.2009 - 08.2010] GSE20..RHD..6FC REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE&SOUTH AFRICA SPEC; GSE20..RHD..6FC REGULATION COMPLIANCE LABEL & NAME PLATE-GENERAL NAME PLATE + ADR&SINGAPORE SPEC; GSE20..RHD..6FC REGULATION COMPLIANCE L |
89661-53E80 |
— | ||
|
89661
|
89661
89661-53E90
Computer, Engine Control
[04.2009 - 08.2010] GSE20..RHD..6FC REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE&NEW ZEALAND SPEC; GSE20..RHD..6FC REGULATION COMPLIANCE LABEL & NAME PLATE-GENERAL NAME PLATE + ADR&AUSTRALIA SPEC |
89661-53E90 |
— | ||
|
89661
|
89661
89661-53K20 Computer, Engine Control[08.2010 - 08.2012] GSE20..RHD REGULATION COMPLIANCE LABEL & NAME PLATE-GENERAL NAME PLATE + ADR&THAILAND SPEC |
89661-53K20 |
US $1,543.36 |
||
|
89661
|
89661
89661-53K30
Computer, Engine Control
[08.2010 - 11.2014] GSE20..RHD REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE&NEW ZEALAND SPEC; GSE20..RHD REGULATION COMPLIANCE LABEL & NAME PLATE-GENERAL NAME PLATE + ADR&AUSTRALIA SPEC |
89661-53K30 |
— | ||
|
89661
|
89661
89661-53L30
Computer, Engine Control
[08.2010 -] GSE20 |
89661-53L30 |
— | ||
|
89661
|
89661
89661-53Q70 Computer, Engine Control[08.2012 - 11.2014] GSE20..RHD REGULATION COMPLIANCE LABEL & NAME PLATE-GENERAL NAME PLATE + ADR&HONGKONG SPEC |
89661-53Q70 |
US $1,528.80 |
||
|
89871
|
89871
89871-30030 Driver, Injector[04.2009 - 10.2011] GSE20 |
89871-30030 |
US $942.03 |
||
| replacement | |||||
|
89871
|
89871
89871-30031 Driver, Injector[04.2009 - 10.2011] GSE20 |
89871-30031 |
US $784.78 |
||
|
89871
|
89871
89871-30031 Driver, Injector[11.2011 - 07.2015] GSE20 |
89871-30031 |
US $784.78 |
||
|
91621J0614
|
91621J0614
91621-J0614 BOLT W-WASHER |
91621-J0614 |
from US $0.87 |
||
|
9011906691
|
9011906691
90119-06691 BOLT WWASHER |
90119-06691 |
US $1.25 |
||
|
9043012005
|
9043012005
90430-12005 Gasket(For Water Hole) |
90430-12005 |
from US $0.67 |
||
|
9155380614
|
9155380614
91553-80614 BOLT FLANGE |
91553-80614 |
US $1.08 |
||
|
9167180612
|
9167180612
91671-80612 Bolt |
91671-80612 |
from US $0.65 |
||
|
9415180600
|
9415180600
94151-80600 Nut, Cap(For Cylinder Head Cover) |
94151-80600 |
from US $0.65 |
||
