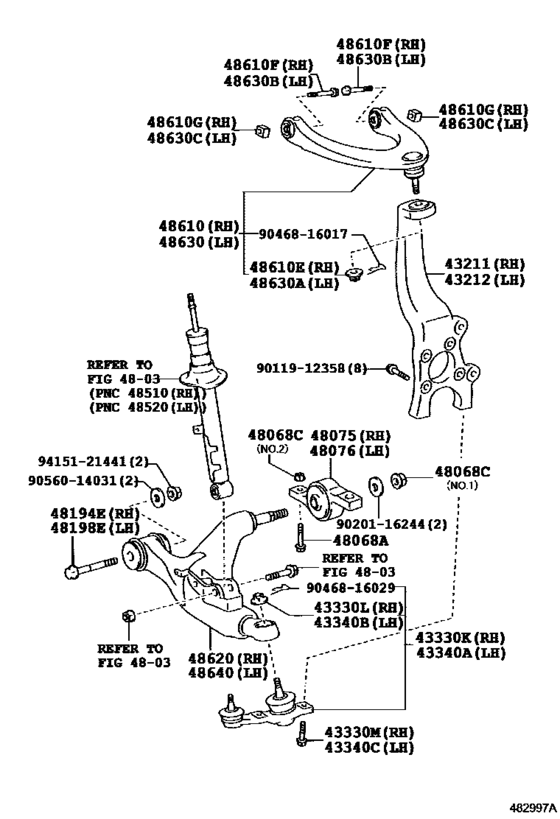

Front Axle Arm & Steering Knuckle ([04.2009 - ] (0904- )) Diagram Toyota LEXUS IS
- Year
- 2009 - 2014
- Sales region
- Europe
- Frame
- GSE20
- grade
- 250C
- ENGINE
- 4GRFSE
- TRANSMISSION
- ATM
- Model
- IS250
- From
- 04.2009
- To
- 11.2014
- Gear Shift Type
- 6FC
- Vehicle Model
- IS250C
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
43211
|
43211
43201-53010 Knuckle, Steering, Rh[04.2009 - 07.2015] GSE20 |
43201-53010 |
from US $254.89 |
||
|
43212
|
43212
43202-53010 Knuckle, Steering, Lh[04.2009 - 07.2015] GSE20 |
43202-53010 |
from US $252.30 |
||
|
43330K
|
43330K
43330-39625 Joint Assy, Lower Ball, Front Rh[04.2009 -] GSE20 |
43330-39625 |
from US $86.92 |
||
|
43330L
|
43330L
90171-14011 Nut, Castle (For Front Lower Ball Joint Setting)[04.2009 -] GSE20 |
90171-14011 |
from US $1.16 |
||
|
43330M
|
43330M
91552-L1455 Bolt (For Steering Knuckle Rh)[04.2009 -] GSE20 |
91552-L1455 |
from US $2.96 |
||
|
43340A
|
43340A
43340-39505 Joint Assy, Lower Ball, Front Lh[04.2009 -] GSE20 |
43340-39505 |
from US $86.92 |
||
|
43340B
|
43340B
90171-14011 Nut, Castle (For Front Lower Ball Joint Setting)[04.2009 -] GSE20 |
90171-14011 |
from US $1.16 |
||
|
43340C
|
43340C
91552-L1455 Bolt (For Steering Knuckle Rh)[04.2009 -] GSE20 |
91552-L1455 |
from US $2.96 |
||
|
48068A
|
48068A
91552-L1265 Bolt(For Front Suspension Lower Arm)[04.2009 -] GSE20 |
91552-L1265 |
US $4.30 |
||
|
48068C
|
48068C
94151-21240 Nut(For Front Suspension Lower Arm)[04.2009 -] GSE20 NO.2 |
94151-21240 |
US $1.79 |
||
|
48068C
|
48068C
94151-21601 Nut(For Front Suspension Lower Arm)[04.2009 -] GSE20 NO.1 |
94151-21601 |
from US $1.24 |
||
|
48075
|
48075
48075-30030 Bracket Sub-Assy, Lwr Arm, No,1, RH[11.2010 -] GSE20 OFFSET:0,REFER R/M |
48075-30030 |
from US $37.07 |
||
|
48075
|
48075
48075-30040 Bracket Sub-Assy, Lwr Arm, No,1[04.2009 -] GSE20 OFFSET:+20,REFER R/M |
48075-30040 |
from US $47.01 |
||
|
48075
|
48075
48075-30050 Bracket Sub-Assy, Lwr Arm, No,1[04.2009 -] GSE20 OFFSET:-20,REFER R/M |
48075-30050 |
from US $32.40 |
||
|
48075
|
48075
48075-53010
Bracket Sub-Assy, Lwr Arm, No,1
[04.2009 - 10.2010] GSE20 OFFSET:0,REFER R/M |
48075-53010 |
— | ||
| replacement | |||||
|
48075
|
48075
48075-30030 Bracket Sub-Assy, Lwr Arm, No,1, RH[04.2009 - 10.2010] GSE20 OFFSET:0,REFER R/M |
48075-30030 |
from US $37.07 |
||
|
48076
|
48076
48076-30030 Bracket Sub-Assy, Lwr Arm, No.2, LH[11.2010 -] GSE20 OFFSET:0,REFER R/M |
48076-30030 |
from US $37.66 |
||
|
48076
|
48076
48076-30040 Bracket Sub-Assy, Lwr Arm, No.2[04.2009 -] GSE20 OFFSET:+20,REFER R/M |
48076-30040 |
from US $47.73 |
||
|
48076
|
48076
48076-30050 Bracket Sub-Assy, Lwr Arm, No.2[04.2009 -] GSE20 OFFSET:-20,REFER R/M |
48076-30050 |
from US $32.40 |
||
|
48076
|
48076
48076-53010
Bracket Sub-Assy, Lwr Arm, No.2
[04.2009 - 10.2010] GSE20 OFFSET:0,REFER R/M |
48076-53010 |
— | ||
| replacement | |||||
|
48076
|
48076
48076-30030 Bracket Sub-Assy, Lwr Arm, No.2, LH[04.2009 - 10.2010] GSE20 OFFSET:0,REFER R/M |
48076-30030 |
from US $37.66 |
||
|
48194E
|
48194E
90105-14166 Cam, Front Suspension Camber Adjust, No.3 Rh[04.2009 -] GSE20 |
90105-14166 |
from US $3.80 |
||
|
48198E
|
48198E
90105-14166 Cam, Front Suspension Camber Adjust, No.3 Rh[04.2009 -] GSE20 |
90105-14166 |
from US $3.80 |
||
|
48610
|
48610
48610-59115 Arm Assy, Front Suspension Upper, RhFRONT SUSPENSION UPPER, RH [04.2009 -] GSE20 |
48610-59115 |
US $165.98 |
||
|
48610E
|
48610E
90171-12012 Nut, Castle(For Tie Rod End)[04.2009 -] GSE20 |
90171-12012 |
from US $1.46 |
||
|
48610F
|
48610F
91672-G1070 Bolt(For Suspension Upper Arm)[04.2009 -] GSE20 |
91672-G1070 |
US $3.40 |
||
|
48610G
|
48610G
90173-10012 Nut(For Suspension Upper Arm)[04.2009 -] GSE20 |
90173-10012 |
US $1.79 |
||
|
48620
|
48620
48620-53020 Arm Assy, Front Suspension, Lower Rh[08.2012 -] GSE20 F SPORT |
48620-53020 |
from US $233.60 |
||
|
48620
|
48620
48620-53030 Arm Assy, Front Suspension, Lower RhFRONT SUSPENSION, LOWER RH [04.2009 -] GSE20 |
48620-53030 |
from US $318.56 |
||
|
48630
|
48630
48630-59115 Arm Assy, Front Suspension, Upper LhFRONT SUSPENSION, UPPER LH [04.2009 -] GSE20 |
48630-59115 |
US $165.98 |
||
|
48630A
|
48630A
90171-12012 Nut, Castle(For Tie Rod End)[04.2009 -] GSE20 |
90171-12012 |
from US $1.46 |
||
|
48630B
|
48630B
91672-G1070 Bolt(For Suspension Upper Arm)[04.2009 -] GSE20 |
91672-G1070 |
US $3.40 |
||
|
48630C
|
48630C
90173-10012 Nut(For Suspension Upper Arm)[04.2009 -] GSE20 |
90173-10012 |
US $1.79 |
||
|
48640
|
48640
48640-53020 Arm Assy, Front Suspension Lower, Lh[08.2012 -] GSE20 F SPORT |
48640-53020 |
from US $233.60 |
||
|
48640
|
48640
48640-53030 Arm Assy, Front Suspension Lower, LhFRONT SUSPENSION LOWER, LH [04.2009 -] GSE20 |
48640-53030 |
from US $195.10 |
||
|
9011912358
|
9011912358
90119-12358 BOLT WWASHER |
90119-12358 |
from US $1.52 |
||
|
9020116244
|
9020116244
90201-16244 Washer, Plate (For Rear Drive Pinion) |
90201-16244 |
US $1.97 |
||
|
9046816017
|
9046816017
90468-16017 CLIP |
90468-16017 |
from US $0.82 |
||
|
9046816029
|
9046816029
90468-16029 CLIP |
90468-16029 |
from US $0.64 |
||
|
9056014031
|
9056014031
90560-14031 New Genuine Part |
90560-14031 |
US $4.30 |
||
|
9415121441
|
9415121441
94151-21441 NUT FLANGE |
94151-21441 |
from US $1.12 |
||
