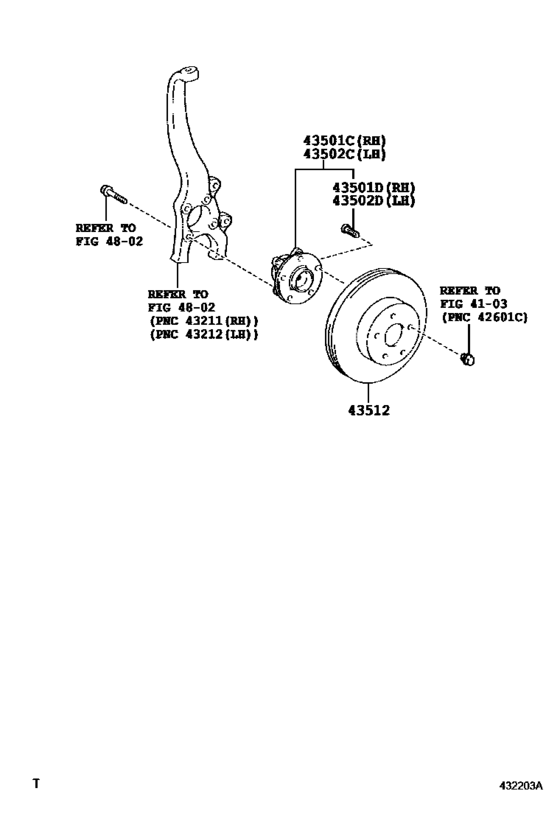

Front Axle Hub ([04.2009 - ] (0904- )) Diagram Toyota LEXUS IS
- Year
- 2009 - 2014
- Sales region
- Europe
- Frame
- GSE20
- grade
- 250C
- ENGINE
- 4GRFSE
- TRANSMISSION
- ATM
- Model
- IS250
- From
- 04.2009
- To
- 11.2014
- Gear Shift Type
- 6FC
- Vehicle Model
- IS250C
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
43501C
|
43501C
43550-30020 Hub Sub-Assy, Front Axle, Rh[04.2009 - 07.2015] GSE20 |
43550-30020 |
US $275.18 |
||
| replacement | |||||
|
43501C
|
43501C
43550-30021 Hub Sub-Assy, Front Axle, Rh[04.2009 - 07.2015] GSE20 |
43550-30021 |
from US $253.08 |
||
|
43501D
|
43501D
90942-02070
Bolt, Hub
[04.2009 - 07.2015] GSE20 |
90942-02070 |
— | ||
| replacements | |||||
|
43501D
|
43501D
90942-02049 Bolt, Hub[04.2009 - 07.2015] GSE20 |
90942-02049 |
US $4.30 |
||
|
43501D
|
43501D
90942-02082 Bolt, Hub[04.2009 - 07.2015] GSE20 |
90942-02082 |
from US $2.26 |
||
|
43502C
|
43502C
43560-30010
Hub Sub-Assy, Front Axle, Lh
[04.2009 - 04.2015] GSE20 |
43560-30010 |
— | ||
| replacement | |||||
|
43502C
|
43502C
43560-30011 Hub Sub-Assy, Front Axle, Lh[04.2009 - 04.2015] GSE20 |
43560-30011 |
from US $203.79 |
||
|
43502D
|
43502D
90942-02070
Bolt, Hub
[04.2009 - 04.2015] GSE20 |
90942-02070 |
— | ||
| replacements | |||||
|
43502D
|
43502D
90942-02049 Bolt, Hub[04.2009 - 04.2015] GSE20 |
90942-02049 |
US $4.30 |
||
|
43502D
|
43502D
90942-02082 Bolt, Hub[04.2009 - 04.2015] GSE20 |
90942-02082 |
from US $2.26 |
||
|
43512
|
43512
43512-30310 Disc, Front[04.2009 - 07.2015] GSE20 |
43512-30310 |
from US $160.36 |
||
