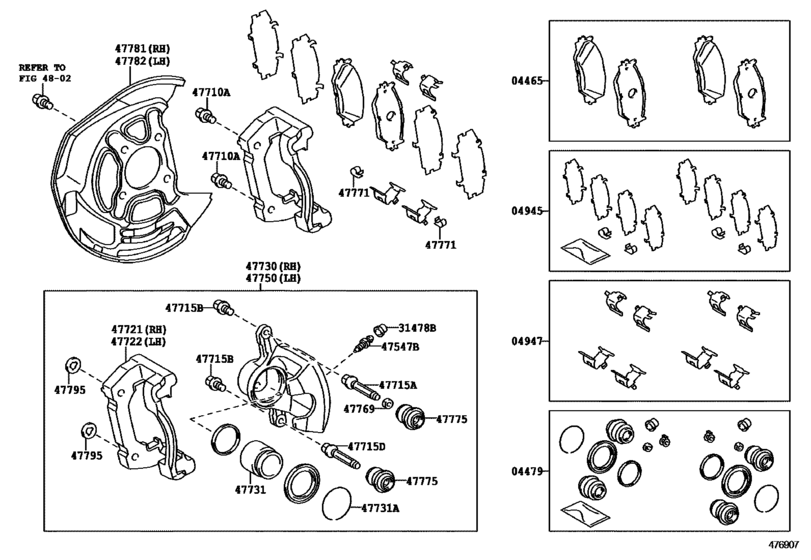

Front Disc Brake Caliper & Dust Cover ([04.2009 - ] (0904- )) Diagram Toyota LEXUS IS
- Year
- 2009 - 2014
- Sales region
- Europe
- Frame
- GSE20
- grade
- 250C
- ENGINE
- 4GRFSE
- TRANSMISSION
- ATM
- Model
- IS250
- From
- 04.2009
- To
- 11.2014
- Gear Shift Type
- 6FC
- Vehicle Model
- IS250C
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04465
|
04465
04465-53040 Pad Kit, Disc Brake, FrontDISC BRAKE, FRONT [04.2009 -] GSE20 MARK TEXTAR T4146 |
04465-53040 |
from US $181.22 |
||
|
04479
|
04479
04478-30250 Cylinder Kit, Disc Brake, Front[04.2009 -] GSE20 |
04478-30250 |
from US $43.59 |
||
|
04945
|
04945
04945-53050 Shim Kit, Anti Squeal, FrontANTI SQUEAL, FRONT [04.2009 -] GSE20 |
04945-53050 |
from US $49.56 |
||
|
04947
|
04947
04947-53020 Fitting Kit, Disc Brake, Front[04.2009 -] GSE20 |
04947-53020 |
from US $46.37 |
||
|
31478B
|
31478B
31478-30010 Bleeder Plug Cap[04.2009 -] GSE20 |
31478-30010 |
from US $1.48 |
||
|
47547B
|
47547B
47547-27030 Plug, Bleeder(For Front Disc Brake)[04.2009 -] GSE20 |
47547-27030 |
from US $3.02 |
||
|
47710A
|
47710A
90119-12415 Bolt, Hexagon(For Front Disc Brake Caliper)[11.2011 - 07.2015] GSE20 *12-1.25PX45-30 |
90119-12415 |
from US $1.46 |
||
|
47710A
|
47710A
91552-K1240 Bolt, Hexagon(For Front Disc Brake Caliper)[04.2009 - 11.2011] GSE20 *12-1.25PX40-30 |
91552-K1240 |
from US $1.88 |
||
|
47715A
|
47715A
47715-22070 Pin, Front Disc Brake Cylinder Slide[04.2009 -] GSE20 |
47715-22070 |
from US $5.80 |
||
| replacement | |||||
|
47715A
|
47715A
47715220701
Pin, Cylinder Slide
[04.2009 -] GSE20 |
47715220701 |
— | ||
|
47715B
|
47715B
90105-08164 Bolt(For Front Disc Brake Cylinder Slide)[04.2009 -] GSE20 |
90105-08164 |
from US $0.89 |
||
|
47715D
|
47715D
47715-52190 Pin, Main(For Front Disc Brake Cylinder Slide)[04.2009 -] GSE20 |
47715-52190 |
from US $5.57 |
||
|
47721
|
47721
47721-53060 Mounting, Front Disc Brake Cylinder, Rh[04.2009 -] GSE20 |
47721-53060 |
US $114.80 |
||
|
47722
|
47722
47722-53060 Mounting, Front Disc Brake Cylinder, Lh[04.2009 -] GSE20 |
47722-53060 |
US $114.80 |
||
|
47730
|
47730
47730-53060 Cylinder Assy, Front Disc Brake, Rh[04.2009 -] GSE20 |
47730-53060 |
US $400.40 |
||
|
47731
|
47731
47731-53060
Piston, Front Disc Brake
[04.2009 -] GSE20 |
47731-53060 |
— | ||
| replacement | |||||
|
47731
|
47731
47731-12A10 Piston, Front Disc Brake[04.2009 -] GSE20 |
47731-12A10 |
from US $19.17 |
||
|
47731A
|
47731A
90520-86005 Ring, Set(For Front Disc Brake Piston)[04.2009 -] GSE20 |
90520-86005 |
US $2.48 |
||
|
47750
|
47750
47750-53060 Cylinder Assy, Disc Brake, Lh[04.2009 -] GSE20 |
47750-53060 |
US $416.93 |
||
|
47769
|
47769
47769-50010 Bush, Cylinder Slide, No.1(For Front Disc Brake)[04.2009 -] GSE20 |
47769-50010 |
from US $0.74 |
||
|
47771
|
47771
47771-33340 Plate, Pad Wear Indicator, No.1[04.2009 -] GSE20 |
47771-33340 |
US $2.15 |
||
|
47775
|
47775
47775-50010 Boot, Bush Dust(For Front Disc Brake)[04.2009 -] GSE20 |
47775-50010 |
from US $2.22 |
||
|
47781
|
47781
47781-30220 Cover, Disc Brake Dust, Front Rh[04.2009 - 07.2015] GSE20 |
47781-30220 |
from US $23.16 |
||
|
47782
|
47782
47782-30220 Cover, Disc Brake Dust, Front Lh[04.2009 - 07.2015] GSE20 |
47782-30220 |
from US $23.24 |
||
|
47795
|
47795
47795-30520 Plate, Front Disc Brake Caliper, No.1[04.2009 -] GSE20 |
47795-30520 |
US $4.30 |
||
