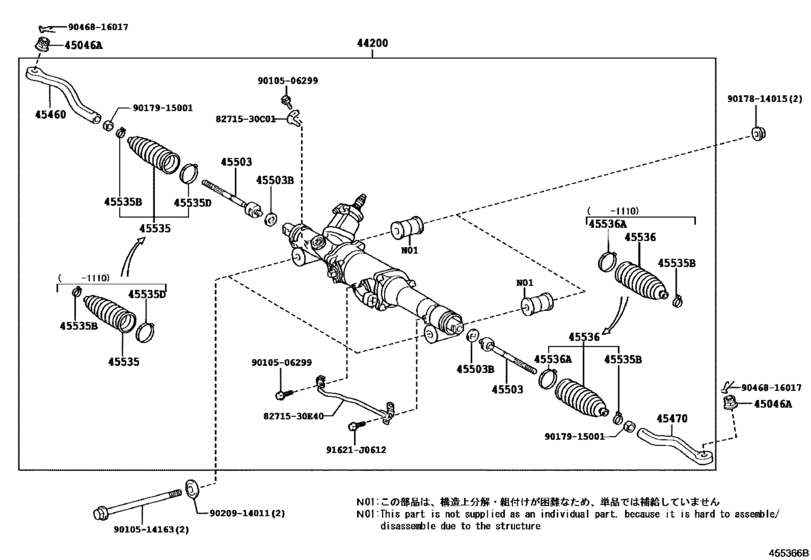

Front Steering Gear & Link ([04.2009 - ] (0904- )RHD) Diagram Toyota LEXUS IS
- Year
- 2009 - 2014
- Sales region
- Europe
- Frame
- GSE20
- grade
- 250C
- ENGINE
- 4GRFSE
- TRANSMISSION
- ATM
- Model
- IS250
- From
- 04.2009
- To
- 11.2014
- Gear Shift Type
- 6FC
- Vehicle Model
- IS250C
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
44200
|
44200
44200-30460 Link Assy, Power Steering[04.2009 - 09.2011] GSE20..RHD |
44200-30460 |
US $1,543.36 |
||
| replacement | |||||
|
44200
|
44200
44200-30461 Link Assy, Power Steering[04.2009 - 09.2011] GSE20..RHD |
44200-30461 |
US $1,722.74 |
||
|
44200
|
44200
44200-30461 Link Assy, Power Steering[06.2012 - 11.2014] GSE20..RHD |
44200-30461 |
US $1,722.74 |
||
|
44200
|
44200
44200-30A30 Link Assy, Power Steering[10.2011 - 06.2012] GSE20..RHD |
44200-30A30 |
US $1,394.85 |
||
| replacement | |||||
|
44200
|
44200
44200-30461 Link Assy, Power Steering[10.2011 - 06.2012] GSE20..RHD |
44200-30461 |
US $1,722.74 |
||
|
44200
|
44200
44200-53111 Link Assy, Power Steering[08.2012 - 11.2014] GSE20..RHD F SPORT |
44200-53111 |
US $1,394.85 |
||
|
45046A
|
45046A
90171-12002 Nut, Castle(For Tie Rod End)[04.2009 -] GSE20 |
90171-12002 |
from US $1.10 |
||
|
45460
|
45460
45463-30130 Rod Assy, Tie, Rh[04.2009 -] GSE20 |
45463-30130 |
from US $22.27 |
||
|
45470
|
45470
45464-30060 Rod Assy, Tie, Lh[04.2009 -] GSE20 |
45464-30060 |
from US $21.98 |
||
|
45503
|
45503
45503-30070 End Sub-Assy, Steering Rack[04.2009 -] GSE20 |
45503-30070 |
from US $91.69 |
||
|
45503B
|
45503B
90214-14011 Washer, Claw(For Steering Rack End)[04.2009 -] GSE20 OD=40 |
90214-14011 |
US $3.23 |
||
|
45535
|
45535
45535-30030
Boot, Steering Rack, No.1
[04.2009 - 10.2011] GSE20 |
45535-30030 |
— | ||
| replacement | |||||
|
45535
|
45535
45535-59065 Boot, Steering Rack, No.1[04.2009 - 10.2011] GSE20 |
45535-59065 |
from US $17.64 |
||
|
45535
|
45535
45535-59045
Boot, Steering Rack, No.1
[10.2011 - 12.2013] GSE20 |
45535-59045 |
— | ||
| replacement | |||||
|
45535
|
45535
45535-59065 Boot, Steering Rack, No.1[10.2011 - 12.2013] GSE20 |
45535-59065 |
from US $17.64 |
||
|
45535
|
45535
45535-59065 Boot, Steering Rack, No.1[01.2014 - 07.2015] GSE20 |
45535-59065 |
from US $17.64 |
||
|
45535B
|
45535B
90467-19019 Clip[04.2009 -] GSE20 |
90467-19019 |
from US $4.09 |
||
|
45535D
|
45535D
45538-50010 Clamp(For Steering Rack Boot No.1)[04.2009 -] GSE20..6FC |
45538-50010 |
from US $2.34 |
||
|
45536
|
45536
45535-30030
Boot, Steering Rack, No.1
[04.2009 - 10.2011] GSE20 |
45535-30030 |
— | ||
| replacement | |||||
|
45536
|
45536
45535-59065 Boot, Steering Rack, No.1[04.2009 - 10.2011] GSE20 |
45535-59065 |
from US $17.64 |
||
|
45536
|
45536
45535-59045
Boot, Steering Rack, No.1
[10.2011 - 12.2013] GSE20 |
45535-59045 |
— | ||
| replacement | |||||
|
45536
|
45536
45535-59065 Boot, Steering Rack, No.1[10.2011 - 12.2013] GSE20 |
45535-59065 |
from US $17.64 |
||
|
45536
|
45536
45535-59065 Boot, Steering Rack, No.1[01.2014 - 07.2015] GSE20 |
45535-59065 |
from US $17.64 |
||
|
45536A
|
45536A
45538-50010 Clamp(For Steering Rack Boot No.1)[04.2009 -] GSE20..6FC |
45538-50010 |
from US $2.34 |
||
|
91621J0612
|
91621J0612
91621-J0612 BOLT W-WASHER |
91621-J0612 |
from US $0.65 |
||
|
8271530C01
|
8271530C01
82715-30C01 Bracket,wiring Harness Clamp |
82715-30C01 |
US $2.33 |
||
|
8271530E40
|
8271530E40
82715-30E40 Bracket,wiring Harness Clamp |
82715-30E40 |
US $8.59 |
||
|
9010506299
|
9010506299
90105-06299 New Genuine Part |
90105-06299 |
US $0.44 |
||
|
9010514163
|
9010514163
90105-14163 Bolt, Differential Support Member Mounting, No.1 |
90105-14163 |
US $7.71 |
||
|
9017814015
|
9017814015
90178-14015 New Genuine Part |
90178-14015 |
US $3.40 |
||
|
9017915001
|
9017915001
90179-15001 Nut (For Rear Axle Carrier) |
90179-15001 |
from US $2.81 |
||
|
9020914011
|
9020914011
90209-14011 New Genuine Part |
90209-14011 |
US $4.30 |
||
|
9046816017
|
9046816017
90468-16017 CLIP |
90468-16017 |
from US $0.82 |
||
