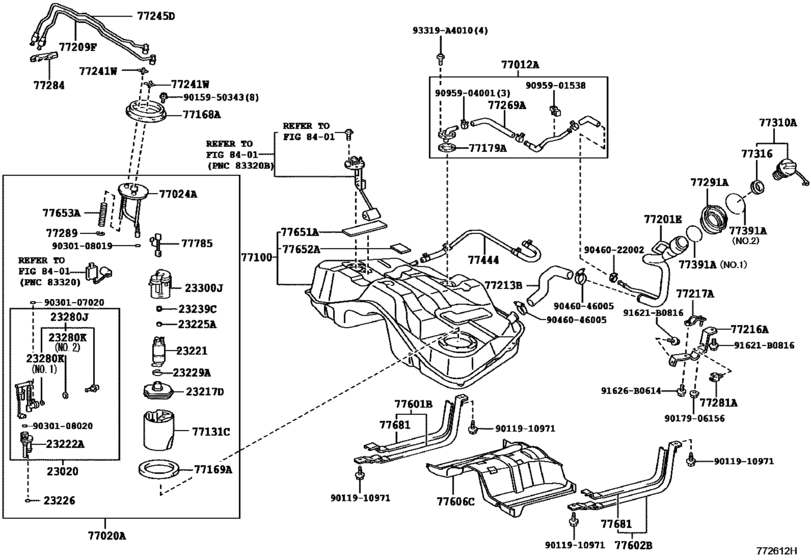

Fuel Tank & Tube ([04.2009 - ] FUEL TANK (0904- )) Diagram Toyota LEXUS IS
- Year
- 2009 - 2014
- Sales region
- Europe
- Frame
- GSE20
- grade
- 250C
- ENGINE
- 4GRFSE
- TRANSMISSION
- ATM
- Model
- IS250
- From
- 04.2009
- To
- 11.2014
- Gear Shift Type
- 6FC
- Vehicle Model
- IS250C
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
23020
|
23020
23020-31020 Regulator Assy, Fuel Pressure W/jet PumpFUEL PRESSURE W/JET PUMP [04.2009 -] 4GRFSE..GSE20 |
23020-31020 |
US $107.74 |
||
|
23217D
|
23217D
23217-31100 Filter, Fuel Pump[04.2009 -] 4GRFSE..GSE20 |
23217-31100 |
from US $8.80 |
||
|
23221
|
23221
23221-31020
Pump, Fuel
[04.2009 - 11.2009] 4GRFSE..GSE20 |
23221-31020 |
— | ||
| replacement | |||||
|
23221
|
23221
23221-31340 Pump, FuelFUEL [04.2009 - 11.2009] 4GRFSE..GSE20 |
23221-31340 |
US $337.21 |
||
|
23221
|
23221
23221-31340 Pump, FuelFUEL [11.2009 -] 4GRFSE..GSE20 |
23221-31340 |
US $337.21 |
||
|
23222A
|
23222A
23222-31020
Tube, Fuel Return Jet
[04.2009 - 07.2015] 4GRFSE..GSE20 |
23222-31020 |
— | ||
|
23225A
|
23225A
23225-21010 Spacer, Fuel Pump[04.2009 -] 4GRFSE..GSE20 |
23225-21010 |
from US $1.14 |
||
|
23226
|
23226
90301-11025 Ring, O(For Fuel Pump)[04.2009 -] 4GRFSE..GSE20 |
90301-11025 |
from US $2.09 |
||
|
23229A
|
23229A
23229-16010 Clip(For Fuel Pump Filter)[04.2009 -] 4GRFSE..GSE20 |
23229-16010 |
from US $0.80 |
||
| replacement | |||||
|
23229A
|
23229A
23219-03010 Clip(For Fuel Pump Filter)[04.2009 -] 4GRFSE..GSE20 |
23219-03010 |
US $2.55 |
||
|
23239C
|
23239C
23239-21010 Seal, Fuel Pump Filter[04.2009 -] 4GRFSE..GSE20 |
23239-21010 |
from US $0.97 |
||
|
23280J
|
23280J
23280-31020 Regulator Assy, Fuel Pressure[04.2009 -] 4GRFSE..GSE20 |
23280-31020 |
from US $57.27 |
||
|
23280K
|
23280K
90301-04013 Ring, O(For Fuel Pump)[04.2009 -] 4GRFSE..GSE20 NO.1 |
90301-04013 |
from US $2.13 |
||
|
23280K
|
23280K
90301-15024 Ring, O(For Fuel Pump)[04.2009 -] 4GRFSE..GSE20 NO.2 |
90301-15024 |
from US $2.09 |
||
|
23300J
|
23300J
23300-31140 Filter Assy, Fuel[04.2009 -] 4GRFSE..GSE20 |
23300-31140 |
from US $80.16 |
||
|
77012A
|
77012A
77012-53040 Tube Sub-Assy, Fuel Tank Breather, No.1[04.2009 -] GSE20 |
77012-53040 |
US $82.99 |
||
|
77020A
|
77020A
77020-53072 Tube Assy, Fuel Suction W/pump & GageFUEL SUCTION W/PUMP & GAGE [04.2009 - 10.2009] GSE20 |
77020-53072 |
US $937.66 |
||
| replacement | |||||
|
77020A
|
77020A
77020-53074 Tube Assy, Fuel Suction W/pump & Gage[04.2009 - 10.2009] GSE20 |
77020-53074 |
US $803.58 |
||
|
77020A
|
77020A
77020-53073 Tube Assy, Fuel Suction W/pump & GageFUEL SUCTION W/PUMP & GAGE [11.2009 - 01.2013] GSE20 |
77020-53073 |
US $707.62 |
||
| replacement | |||||
|
77020A
|
77020A
77020-53074 Tube Assy, Fuel Suction W/pump & Gage[11.2009 - 01.2013] GSE20 |
77020-53074 |
US $803.58 |
||
|
77020A
|
77020A
77020-53074 Tube Assy, Fuel Suction W/pump & Gage[02.2013 - 07.2015] GSE20 |
77020-53074 |
US $803.58 |
||
|
77024A
|
77024A
77024-22030 Plate Sub-Assy, Fuel Suction[04.2009 -] GSE20 |
77024-22030 |
US $40.91 |
||
|
77100
|
77100
77001-53081 Tank Assy, FuelFUEL [04.2009 -] GSE20 |
77001-53081 |
US $452.82 |
||
|
77131C
|
77131C
77131-22052 Sub-Tank, Fuel, No.1[04.2009 -] GSE20 |
77131-22052 |
US $20.68 |
||
|
77168A
|
77168A
77168-52020 Plate, Fuel Tank Vent Tube Set[04.2009 -] GSE20 |
77168-52020 |
from US $14.63 |
||
|
77169A
|
77169A
77169-52010 Gasket, Fuel Suction Tube Set[04.2009 -] GSE20 |
77169-52010 |
from US $5.02 |
||
|
77179A
|
77179A
77179-20040 Gasket, Fuel Tank Breather Tube[04.2009 -] GSE20 |
77179-20040 |
US $4.66 |
||
|
77201E
|
77201E
77201-53080 Pipe Sub-Assy, Fuel Tank FillerFUEL TANK FILLER [04.2009 -] GSE20 |
77201-53080 |
US $91.73 |
||
|
77209F
|
77209F
77209-53020 Tube Sub-Assy, Fuel Tank Main[04.2009 -] GSE20 |
77209-53020 |
US $33.05 |
||
|
77213B
|
77213B
77213-22100 Hose, Fuel Tank To Filler Pipe[04.2009 -] GSE20 |
77213-22100 |
US $29.56 |
||
|
77216A
|
77216A
77216-30050
Support, Fuel Tank Filler Pipe, No.1
[04.2009 - 02.2012] GSE20 |
77216-30050 |
— | ||
| replacement | |||||
|
77216A
|
77216A
77216-30051 Support, Fuel Tank Filler Pipe, No.1[04.2009 - 02.2012] GSE20 |
77216-30051 |
US $12.06 |
||
|
77216A
|
77216A
77216-30051 Support, Fuel Tank Filler Pipe, No.1[03.2012 -] GSE20 |
77216-30051 |
US $12.06 |
||
|
77217A
|
77217A
77217-30130 Support, Fuel Tank Filler Pipe, No.2[04.2009 - 02.2012] GSE20 |
77217-30130 |
US $6.99 |
||
| replacement | |||||
|
77217A
|
77217A
77217-30131 Support, Fuel Tank Filler Pipe, No.2[04.2009 - 02.2012] GSE20 |
77217-30131 |
US $5.59 |
||
|
77217A
|
77217A
77217-30131 Support, Fuel Tank Filler Pipe, No.2[03.2012 -] GSE20 |
77217-30131 |
US $5.59 |
||
|
77241W
|
77241W
77241-33011 Clip, Tube Joint[02.2010 -] GSE20 |
77241-33011 |
from US $0.84 |
||
|
77241W
|
77241W
77241-60320 Clip, Tube Joint[04.2009 - 01.2010] GSE20 |
77241-60320 |
from US $0.84 |
||
|
77245D
|
77245D
77245-53010 Tube, Fuel Tank Return Vent[04.2009 -] GSE20 |
77245-53010 |
US $35.09 |
||
|
77269A
|
77269A
77269-22010 Hose, Fuel Tank Breather[04.2009 -] GSE20 |
77269-22010 |
US $9.32 |
||
|
77281A
|
77281A
77281-50020 Clamp, Fuel Filler Pipe[04.2009 -] GSE20 |
77281-50020 |
US $3.20 |
||
|
77284
|
77284
77289-53020 Clamp, Fuel Tube[04.2009 -] GSE20 |
77289-53020 |
US $5.82 |
||
|
77289
|
77289
77289-52090 Holder, Fuel Tank Pipe Setting[04.2009 -] GSE20 |
77289-52090 |
US $8.42 |
||
|
77291A
|
77291A
77291-53040 Shield, Fuel Tank Filler PipeFUEL TANK FILLER PIPE [04.2009 -] GSE20 |
77291-53040 |
US $19.22 |
||
|
77310A
|
77310A
77300-52030 Cap Assy, Fuel Tank[04.2009 -] GSE20 |
77300-52030 |
from US $25.57 |
||
|
77316
|
77316
77316-52040 Gasket, Fuel Tank Cap[04.2009 -] GSE20 |
77316-52040 |
from US $4.12 |
||
|
77391A
|
77391A
77391-28020 Ring, Fuel Inlet Box[04.2009 -] GSE20 NO.1 |
77391-28020 |
US $3.58 |
||
|
77391A
|
77391A
77391-30020 Ring, Fuel Inlet Box[04.2009 -] GSE20 NO.2 |
77391-30020 |
US $3.58 |
||
|
77444
|
77444
77404-53040
Hose Sub-Assy, Fuel Tank Vent
[04.2009 -] GSE20 |
77404-53040 |
— | ||
|
77601B
|
77601B
77601-53020 Band Sub-Assy, Fuel Tank, No.1[04.2009 -] GSE20 |
77601-53020 |
US $29.18 |
||
|
77602B
|
77602B
77601-22110 Band Sub-Assy, Fuel Tank, No.1[04.2009 -] GSE20 |
77601-22110 |
US $24.62 |
||
|
77606C
|
77606C
77606-53030 Protector Sub-Assy, Fuel Tank, No.1[04.2009 - 06.2012] GSE20 |
77606-53030 |
US $144.14 |
||
| replacement | |||||
|
77606C
|
77606C
77606-53031 Protector Sub-Assy, Fuel Tank, No.1[04.2009 - 06.2012] GSE20 |
77606-53031 |
US $181.71 |
||
|
77606C
|
77606C
77606-53031 Protector Sub-Assy, Fuel Tank, No.1[07.2012 - 07.2013] GSE20 |
77606-53031 |
US $181.71 |
||
|
77651A
|
77651A
77651-53010 Cushion, Fuel Tank, No.1[04.2009 -] GSE20 |
77651-53010 |
US $3.35 |
||
|
77652A
|
77652A
77652-12100 Cushion, Fuel Tank, No.1[04.2009 -] GSE20 |
77652-12100 |
US $10.57 |
||
|
77653A
|
77653A
77652-22090 Cushion, Fuel Tank, No.2[04.2009 -] GSE20 |
77652-22090 |
US $6.09 |
||
|
77681
|
77681
77681-22020 Seat, Fuel Tank Band, Rh[04.2009 -] GSE20 |
77681-22020 |
US $8.74 |
||
|
77785
|
77785
77785-30040
Harness, Fuel Pump
[04.2009 -] GSE20 |
77785-30040 |
— | ||
| replacement | |||||
|
77785
|
77785
77785-30041 Harness, Fuel Pump[04.2009 -] GSE20 |
77785-30041 |
US $5.23 |
||
|
91621B0816
|
91621B0816
91621-B0816 BOLT WWASHER |
91621-B0816 |
from US $0.82 |
||
|
91626B0614
|
91626B0614
91626-B0614 BOLT, W/WASHER |
91626-B0614 |
US $1.08 |
||
|
93319A4010
|
93319A4010
93319-A4010 SCREW WWASHER |
93319-A4010 |
from US $0.67 |
||
|
9011910971
|
9011910971
90119-10971 Bolt, Fuel Tank Band Set |
90119-10971 |
US $2.15 |
||
|
9015950343
|
9015950343
90159-50343 SCREW, W-WASHER |
90159-50343 |
from US $0.67 |
||
|
9017906156
|
9017906156
90179-06156 Nut (For Transmission Control Cable) |
90179-06156 |
from US $0.63 |
||
|
9030107020
|
9030107020
90301-07020 Ring, O(For Fuel Pressure Regulator) |
90301-07020 |
from US $2.53 |
||
|
9030108019
|
9030108019
90301-08019 Ring, O(For Fuel Pressure Regulator) |
90301-08019 |
from US $2.09 |
||
|
9030108020
|
9030108020
90301-08020 Ring, O(For Fuel Pump) |
90301-08020 |
from US $2.57 |
||
|
9046022002
|
9046022002
90460-22002 CLAMP |
90460-22002 |
US $9.50 |
||
| replacement | |||||
|
9046022002
|
9046022002
90460-22001 CLAMP |
90460-22001 |
from US $4.12 |
||
|
9046046005
|
9046046005
90460-46005 Clamp (For Fuel Filler Pipe) |
90460-46005 |
from US $2.62 |
||
|
9095901538
|
9095901538
90959-01538 New Genuine Part |
90959-01538 |
US $2.97 |
||
|
9095904001
|
9095904001
90959-04001 Clip, Fuel Hose |
90959-04001 |
from US $4.30 |
||
