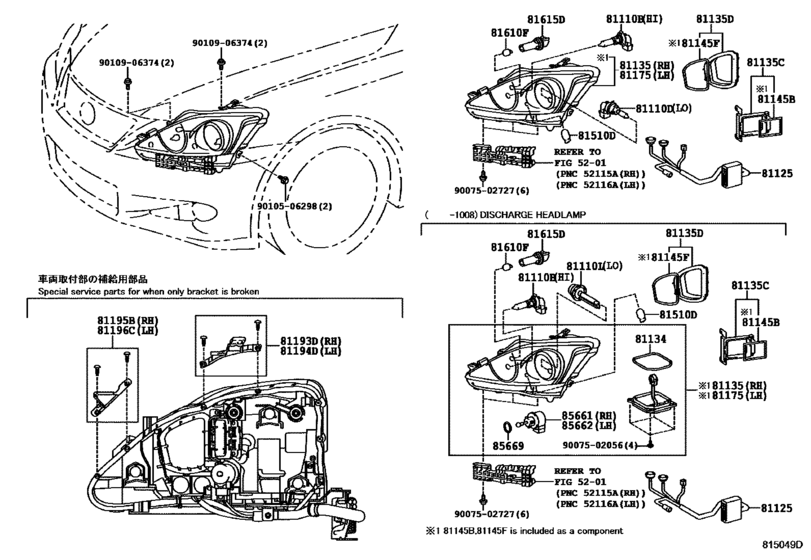

Headlamp ([04.2009 - ] (0904- )) Diagram Toyota LEXUS IS
- Year
- 2009 - 2014
- Sales region
- Europe
- Frame
- GSE20
- grade
- 250C
- ENGINE
- 4GRFSE
- TRANSMISSION
- ATM
- Model
- IS250
- From
- 04.2009
- To
- 11.2014
- Gear Shift Type
- 6FC
- Vehicle Model
- IS250C
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81110B
|
81110B
90981-13046 Bulb(For Headlamp, No.1) (12V, 65W)[04.2009 -] GSE20 12V65W(SAE),60W(ECE) |
90981-13046 |
from US $15.88 |
||
|
81110D
|
81110D
90981-13075 Bulb(For Headlamp, No.1)[04.2009 -] GSE20..6FC 12V 55W,HALOGEN |
90981-13075 |
from US $16 |
||
|
81110L
|
81110L
90981-20024 Bulb, Discharge Headlamp[04.2009 - 08.2010] GSE20..6F 42V 35W; GSE20..6FC 42V 35W,LUXURY PACKAGE |
90981-20024 |
from US $164.74 |
||
|
81125
|
81125
81125-53540 Cord, Headlamp[08.2010 -] GSE20 LUXURY PACKAGE&HEADLAMP-DISCHAGE & WITH(AUTO LEVELING) |
81125-53540 |
US $19.68 |
||
|
81125
|
81125
81126-53220 Cord, Headlamp[04.2009 -] GSE20 |
81126-53220 |
US $36.40 |
||
|
81134
|
81134
90075-68007 Gasket, Headlamp[04.2009 - 08.2010] GSE20..6F; GSE20..6FC LUXURY PACKAGE |
90075-68007 |
from US $7.13 |
||
|
81135
|
81135
81130-53470
Unit Assy, Headlamp, Rh
[04.2009 - 11.2014] GSE20..RHD..6FC |
81130-53470 |
— | ||
|
81135
|
81135
81140-53450 Unit Assy, Headlamp, RhHEADLAMP, RH [04.2009 - 08.2010] GSE20..RHD..6F; GSE20..RHD..6FC LUXURY PACKAGE |
81140-53450 |
US $1,326.42 |
||
|
81135
|
81135
81145-53503 Unit Assy, Headlamp, Rh[08.2012 - 08.2013] GSE20..RHD F SPORT&HEADLAMP-DISCHAGE & WITH(AUTO LEVELING) |
81145-53503 |
US $1,462.81 |
||
|
81135
|
81135
81145-53504
Unit Assy, Headlamp, Rh
[08.2013 - 11.2014] GSE20..RHD F SPORT&HEADLAMP-DISCHAGE & WITH(AUTO LEVELING) |
81145-53504 |
— | ||
|
81135
|
81135
81145-53650
Unit Assy, Headlamp, Rh
[08.2010 - 08.2011] GSE20..RHD LUXURY PACKAGE&HEADLAMP-DISCHAGE & WITH(AUTO LEVELING) |
81145-53650 |
— | ||
|
81135
|
81135
81145-53651
Unit Assy, Headlamp, Rh
[08.2011 - 09.2011] GSE20..RHD LUXURY PACKAGE&HEADLAMP-DISCHAGE & WITH(AUTO LEVELING) |
81145-53651 |
— | ||
|
81135
|
81135
81145-53652
Unit Assy, Headlamp, Rh
[09.2011 - 09.2011] GSE20..RHD LUXURY PACKAGE&HEADLAMP-DISCHAGE & WITH(AUTO LEVELING) |
81145-53652 |
— | ||
|
81135
|
81135
81145-53653
Unit Assy, Headlamp, Rh
[09.2011 - 04.2013] GSE20..RHD LUXURY PACKAGE&HEADLAMP-DISCHAGE & WITH(AUTO LEVELING) |
81145-53653 |
— | ||
|
81135
|
81135
81145-53654 Unit Assy, Headlamp, Rh[04.2013 - 11.2014] GSE20..RHD LUXURY PACKAGE&HEADLAMP-DISCHAGE & WITH(AUTO LEVELING) |
81145-53654 |
US $1,297.23 |
||
|
81135C
|
81135C
81135-53240 Cover, Headlamp Back, No.1[04.2009 - 08.2010] GSE20..6F; GSE20..6FC LUXURY PACKAGE |
81135-53240 |
from US $21.76 |
||
|
81135C
|
81135C
81135-53270 Cover, Headlamp Back, No.1[04.2009 -] GSE20..6FC |
81135-53270 |
from US $15.84 |
||
|
81135D
|
81135D
81136-53240 Cover, Headlamp Back, No.2[04.2009 -] GSE20 RH |
81136-53240 |
US $13.62 |
||
|
81135D
|
81135D
81176-53240 Cover, Headlamp Back, No.2[04.2009 -] GSE20 LH |
81176-53240 |
from US $9.90 |
||
|
81145B
|
81145B
81132-53240 Gasket, Headlamp Cover, No.1[04.2009 -] GSE20 |
81132-53240 |
US $20.83 |
||
|
81145F
|
81145F
81134-53240 Gasket, Headlamp Cover, No.2[04.2009 -] GSE20 |
81134-53240 |
US $10.22 |
||
|
81175
|
81175
81070-53450 Unit Assy, Headlamp, LhHEADLAMP, LH [04.2009 - 08.2010] GSE20..RHD..6F; GSE20..RHD..6FC LUXURY PACKAGE |
81070-53450 |
US $1,326.42 |
||
|
81175
|
81175
81170-53470
Unit Assy, Headlamp, Lh
[04.2009 - 11.2014] GSE20..RHD..6FC |
81170-53470 |
— | ||
|
81175
|
81175
81185-53503
Unit Assy, Headlamp, Lh
[08.2012 - 08.2013] GSE20..RHD F SPORT&HEADLAMP-DISCHAGE & WITH(AUTO LEVELING) |
81185-53503 |
— | ||
|
81175
|
81175
81185-53504
Unit Assy, Headlamp, Lh
[08.2013 - 11.2014] GSE20..RHD F SPORT&HEADLAMP-DISCHAGE & WITH(AUTO LEVELING) |
81185-53504 |
— | ||
|
81175
|
81175
81185-53650
Unit Assy, Headlamp, Lh
[08.2010 - 08.2011] GSE20..RHD LUXURY PACKAGE&HEADLAMP-DISCHAGE & WITH(AUTO LEVELING) |
81185-53650 |
— | ||
|
81175
|
81175
81185-53651
Unit Assy, Headlamp, Lh
[08.2011 - 09.2011] GSE20..RHD LUXURY PACKAGE&HEADLAMP-DISCHAGE & WITH(AUTO LEVELING) |
81185-53651 |
— | ||
|
81175
|
81175
81185-53652
Unit Assy, Headlamp, Lh
[09.2011 - 09.2011] GSE20..RHD LUXURY PACKAGE&HEADLAMP-DISCHAGE & WITH(AUTO LEVELING) |
81185-53652 |
— | ||
|
81175
|
81175
81185-53653
Unit Assy, Headlamp, Lh
[09.2011 - 04.2013] GSE20..RHD LUXURY PACKAGE&HEADLAMP-DISCHAGE & WITH(AUTO LEVELING) |
81185-53653 |
— | ||
|
81175
|
81175
81185-53654
Unit Assy, Headlamp, Lh
[04.2013 - 11.2014] GSE20..RHD LUXURY PACKAGE&HEADLAMP-DISCHAGE & WITH(AUTO LEVELING) |
81185-53654 |
— | ||
|
81193D
|
81193D
81193-53020 Retainer, Rh Headlamp Protector, Upper Lh[04.2009 - 07.2015] GSE20 |
81193-53020 |
from US $16.26 |
||
|
81194D
|
81194D
81194-53010 Retainer, Lh Headlamp Protector, Upper Lh[04.2009 -] GSE20 |
81194-53010 |
from US $24.62 |
||
|
81195B
|
81195B
81195-53010 Retainer, Rh Headlamp Protector, Lower Rh[04.2009 -] GSE20 |
81195-53010 |
from US $7.78 |
||
|
81196C
|
81196C
81196-53020 Retainer, Lh Headlamp Protector, Lower Lh[04.2009 -] GSE20 |
81196-53020 |
from US $7.78 |
||
|
81510D
|
81510D
90981-15021 Bulb (For Front Turn Signal Lamp)[04.2009 -] GSE20 12V 21W,AMBER |
90981-15021 |
from US $3.14 |
||
|
81610F
|
81610F
99132-12050 Bulb (12V 5W)[04.2009 -] GSE20 12V 5W |
99132-12050 |
from US $1.97 |
||
| replacement | |||||
|
81610F
|
81610F
90080-81053 Bulb(For Clearance Lamp)[04.2009 -] GSE20 12V 5W |
90080-81053 |
US $0.99 |
||
|
81615D
|
81615D
90075-60077 Clearance Lamp Socket[04.2009 -] GSE20 |
90075-60077 |
from US $6 |
||
|
85661
|
85661
85661-48030 Motor, Headlamp Leveling, Rh[04.2009 - 08.2010] GSE20..6F; GSE20..6FC LUXURY PACKAGE |
85661-48030 |
US $155.79 |
||
|
85662
|
85662
85661-48030 Motor, Headlamp Leveling, Rh[04.2009 - 08.2010] GSE20..6F; GSE20..6FC LUXURY PACKAGE |
85661-48030 |
US $155.79 |
||
|
85669
|
85669
90075-99120 Packing, Headlamp Leveling Motor Base[04.2009 - 08.2010] GSE20..6F; GSE20..6FC LUXURY PACKAGE |
90075-99120 |
from US $2.32 |
||
|
9007502056
|
9007502056
90075-02056 Screw, Headlamp |
90075-02056 |
from US $0.59 |
||
|
9007502727
|
9007502727
90075-02727 Screw, Headlamp |
90075-02727 |
from US $0.65 |
||
|
9010506298
|
9010506298
90105-06298 BOLT FLANGE |
90105-06298 |
from US $0.59 |
||
|
9010906374
|
9010906374
90109-06374 BOLT |
90109-06374 |
US $1.08 |
||
