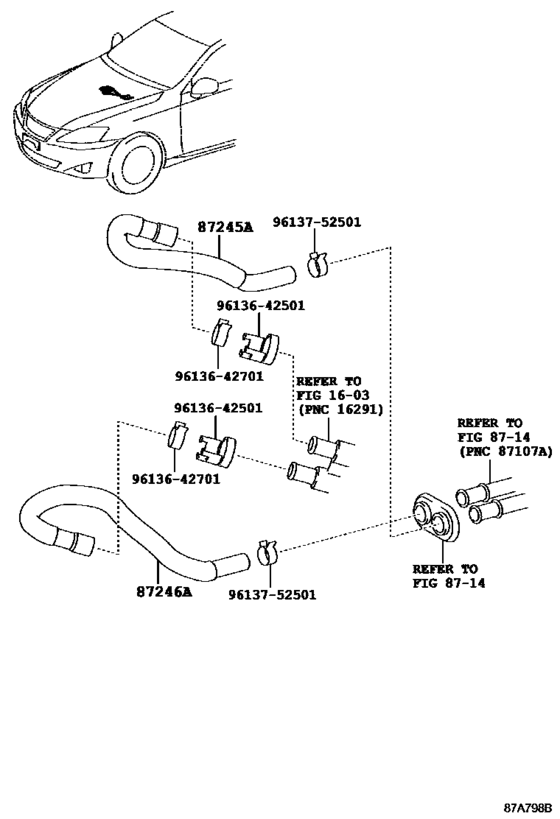

Heating & Air Conditioning - Water Piping ([04.2009 - ] (0904- )RHD) Diagram Toyota LEXUS IS
- Year
- 2009 - 2014
- Sales region
- Europe
- Frame
- GSE20
- grade
- 250C
- ENGINE
- 4GRFSE
- TRANSMISSION
- ATM
- Model
- IS250
- From
- 04.2009
- To
- 11.2014
- Gear Shift Type
- 6FC
- Vehicle Model
- IS250C
- Driver's Position
- RHD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
87245A
|
87245A
87245-53180 Hose, Heater Water, Inlet[04.2009 -] GSE20 |
87245-53180 |
US $27.89 |
||
|
87246A
|
87246A
87245-53150 Hose, Heater Water, Outlet A[04.2009 - 11.2014] GSE20..RHD |
87245-53150 |
US $18.93 |
||
|
9613642501
|
9613642501
96136-42501 Clip(For Ventilation Hose) |
96136-42501 |
from US $3.17 |
||
|
9613642701
|
9613642701
96136-42701 Clamp Or Clip, Hose(For Water By-Pass Hose) |
96136-42701 |
from US $3.25 |
||
|
9613752501
|
9613752501
96137-52501 Clip Or Clamp(For Ventilation Hose) |
96137-52501 |
from US $4.30 |
